SON-10A+

6V/12V Rechargeable Portable Battery Charger

SON-10A+

Battery Charger

Features:

Max charging current:8A

Rated input current:220V

Adopt PWM charging mode,auto stop charging when the battery gets fully charged

New LED screen display control panel

6V/12V manual switch(SON-10A+),12V/24V manual switch(SON-20A+)

Applicable for gel battery and lead-acid battery

INQUIRE NOW

SEND ENQUIRY

  X
Submit

Specifications

7A car battery



Model

SON-10A+

Input Voltage

220V/230V

Output Voltage

6V/12V

Charger Current

7A~8A

Charging mode

Three-phase

Rated power

47~63HZ

Full load efficiency

>87%

Dimensions

128*92*53mm

N.W

0.85kg

Standby efficiency

<8W

Certification

ISO,CTA,CE


Video Tutorial

Three-phase charging mode Constant current mode: When the voltage of the battery is lower than the value set by the charger,the charger will work under the constant current mode and supply the constant current for the battery.

Constant voltage mode: Using the pulse width modulation(PWM) tech to control the charging current and output voltage of the charger which ensures the battery is fully charged and avoids over charging.

Floating charge mode: When the voltage of the battery is approaching the value of the constant voltage mode, and the current will cut down to the given current gradually, that means the battery power is full, then the pilot lamp will turn green and the fan will stop working. The charger will turn the mode into floating charge mode automatically. At this moment, the battery can be stopped charging or keep on floating charge for half an hour.

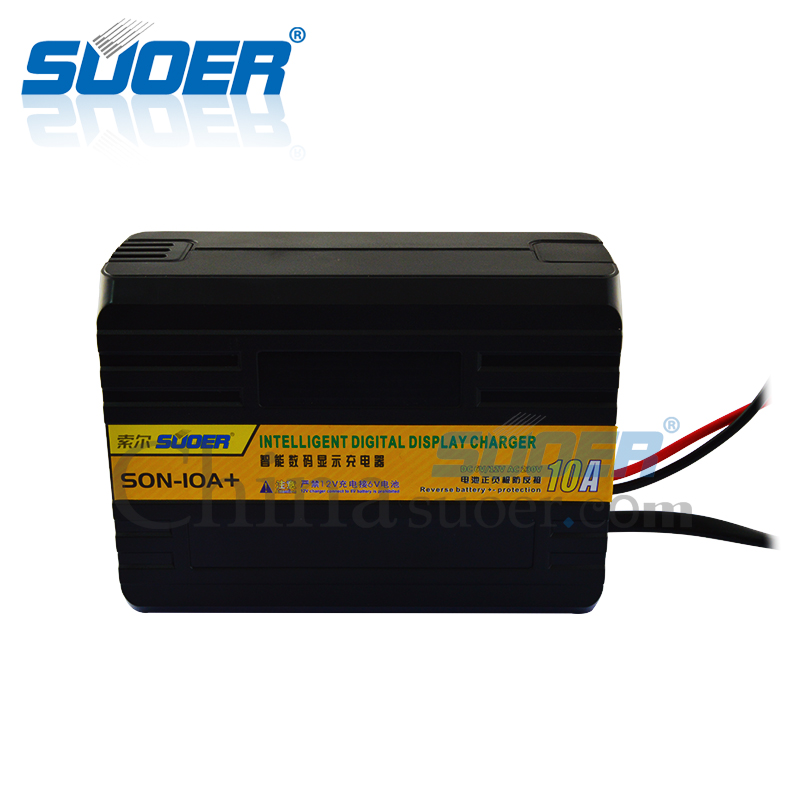

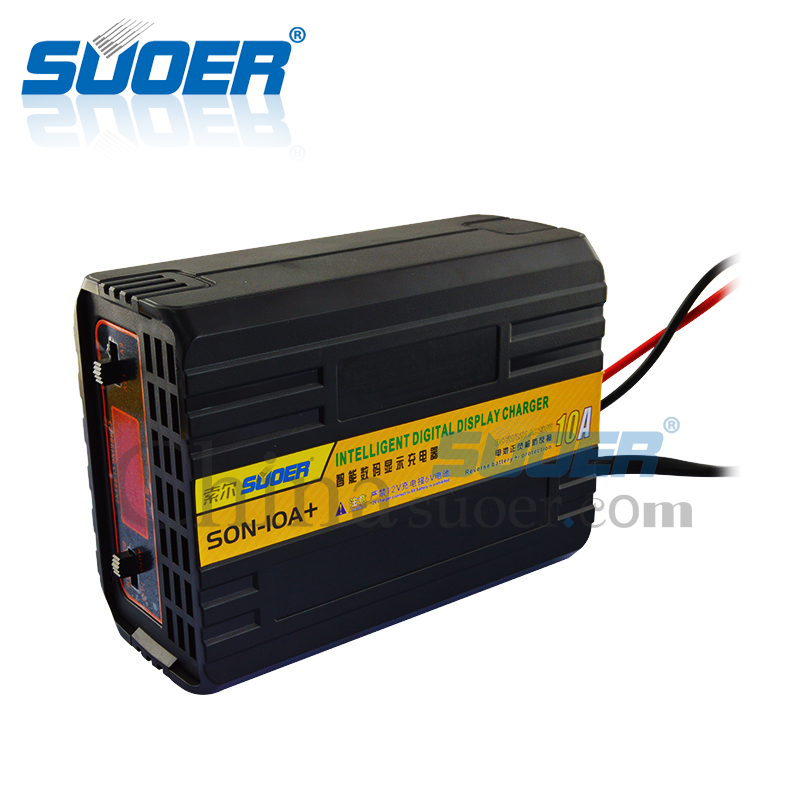

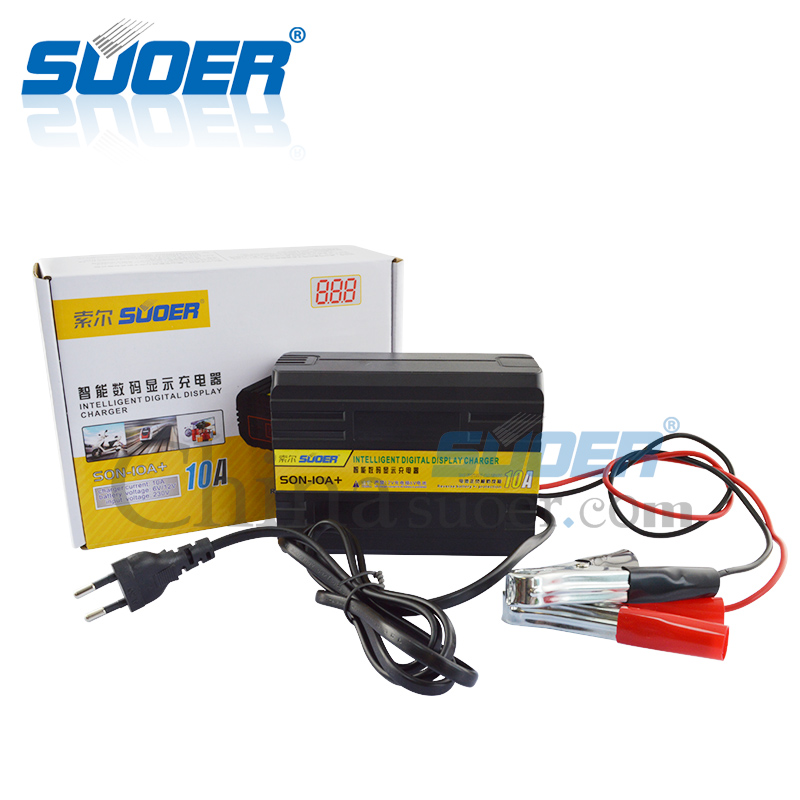

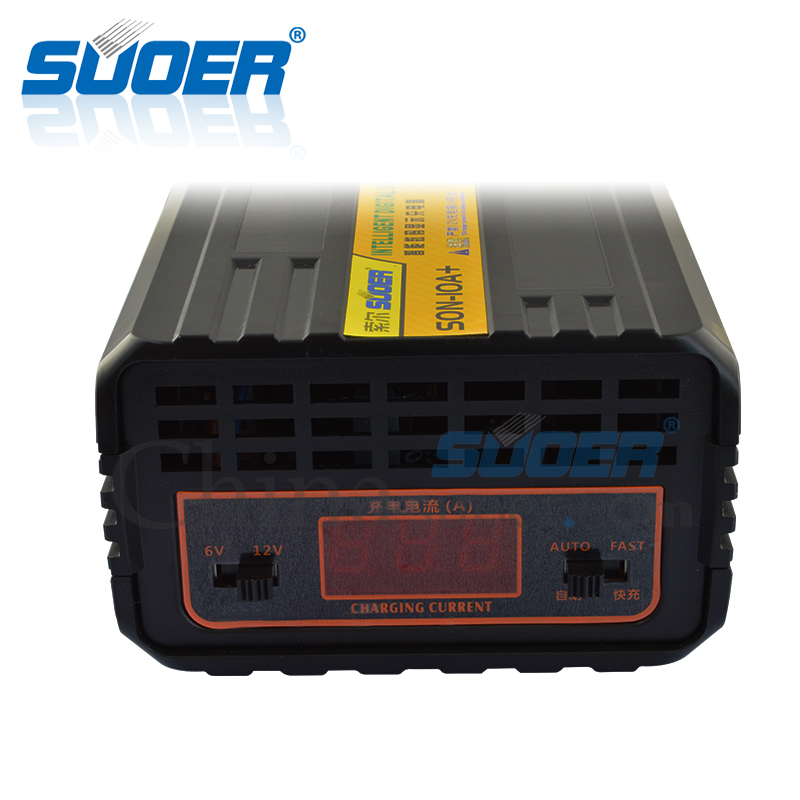

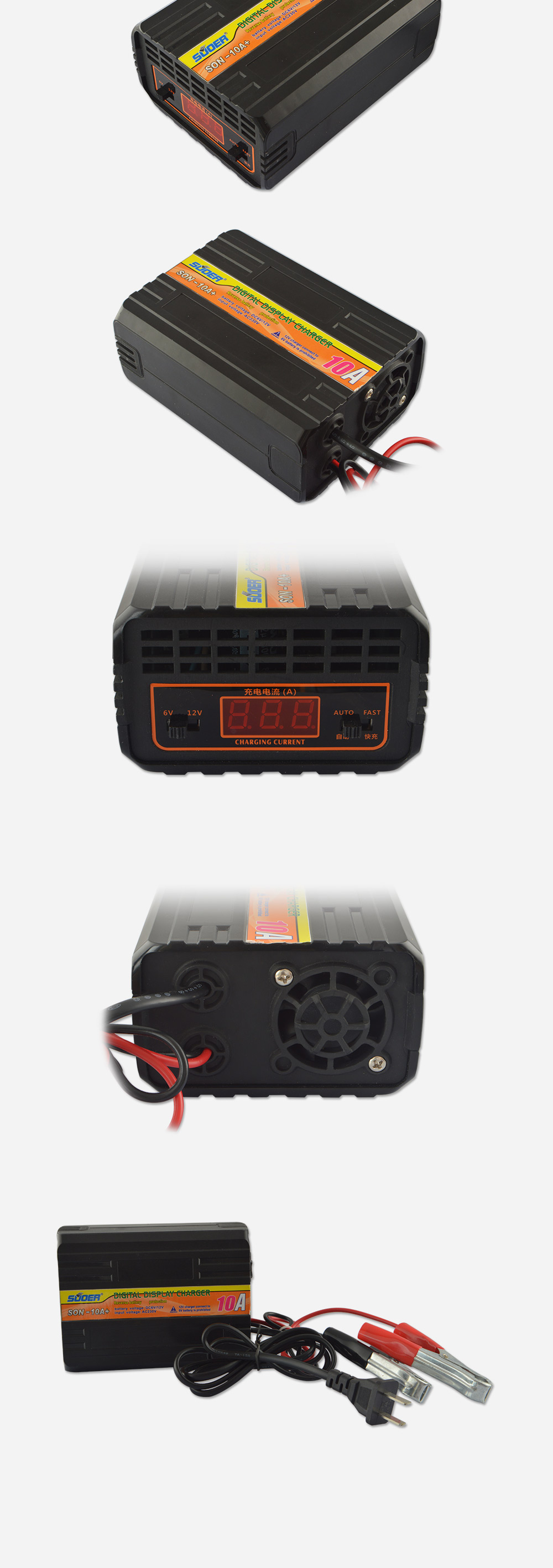

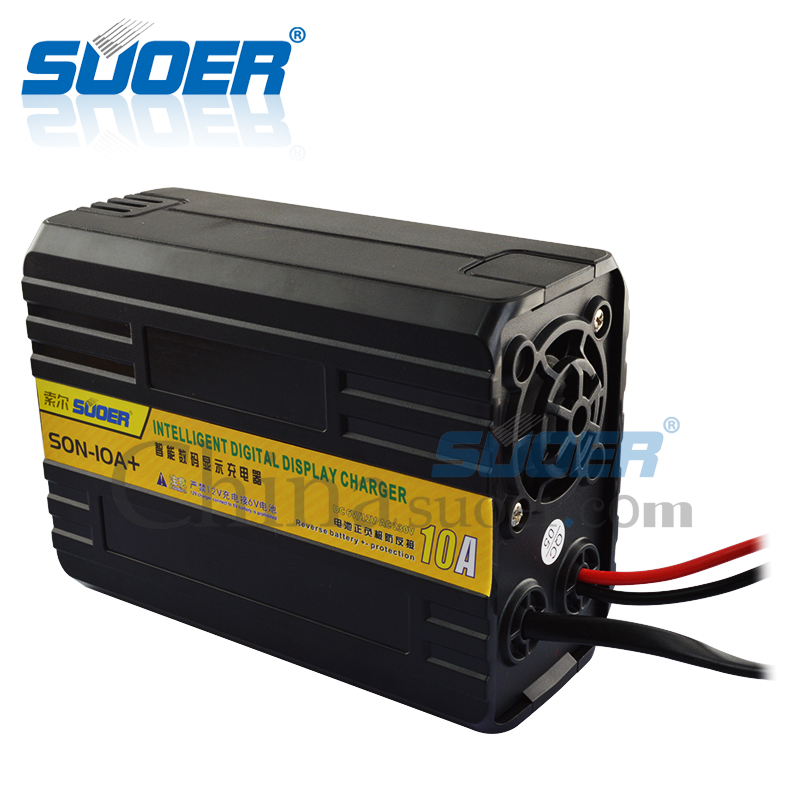

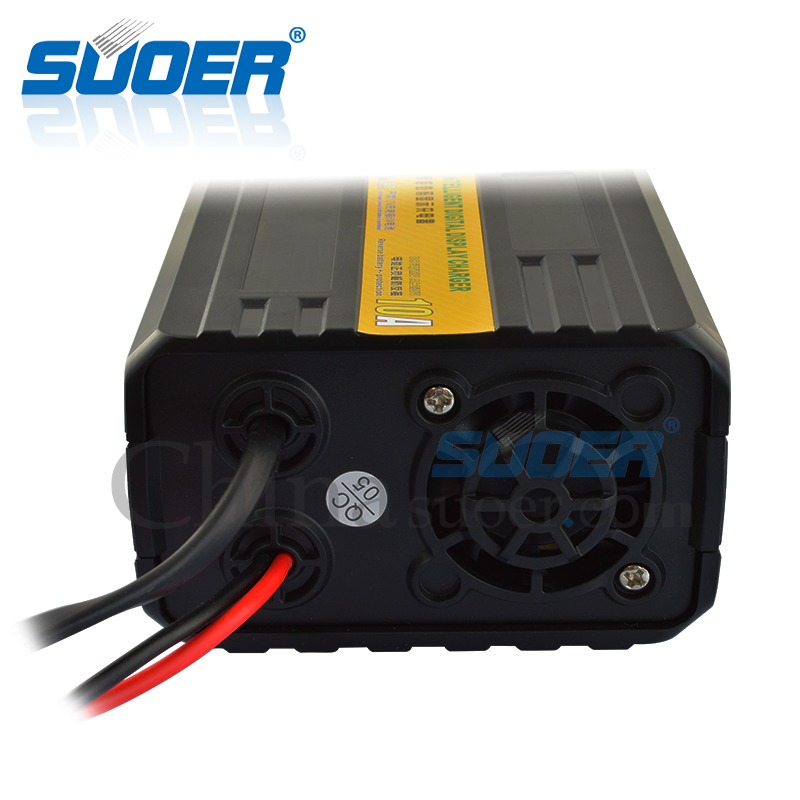

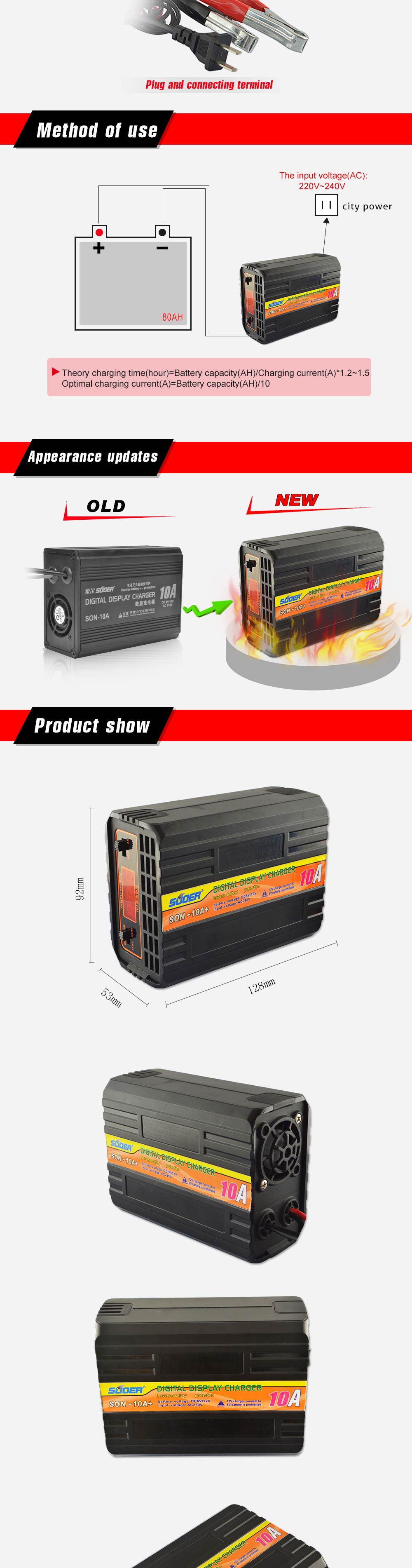

Product Photos
