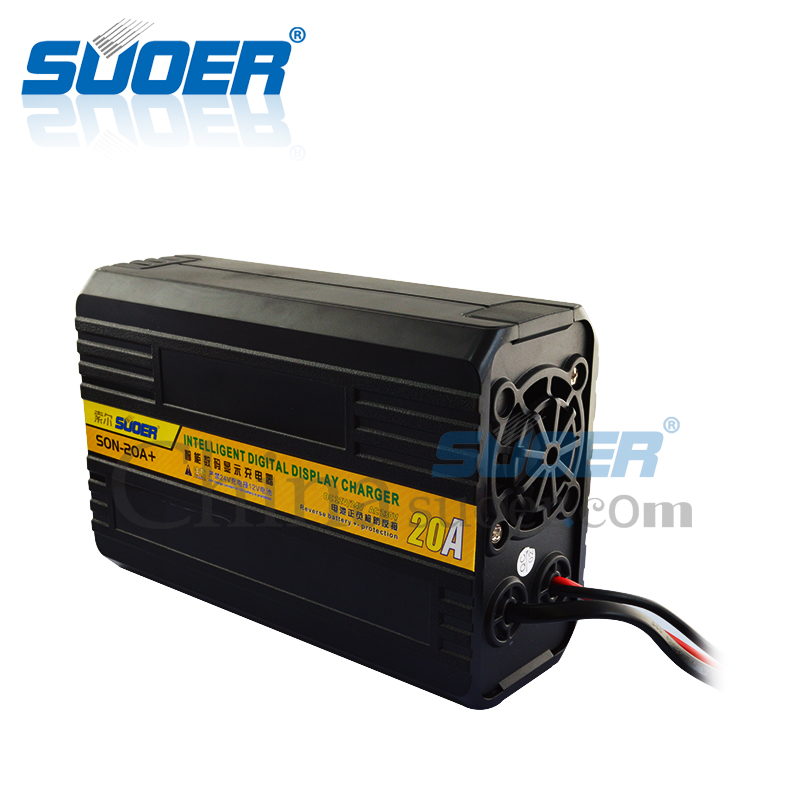

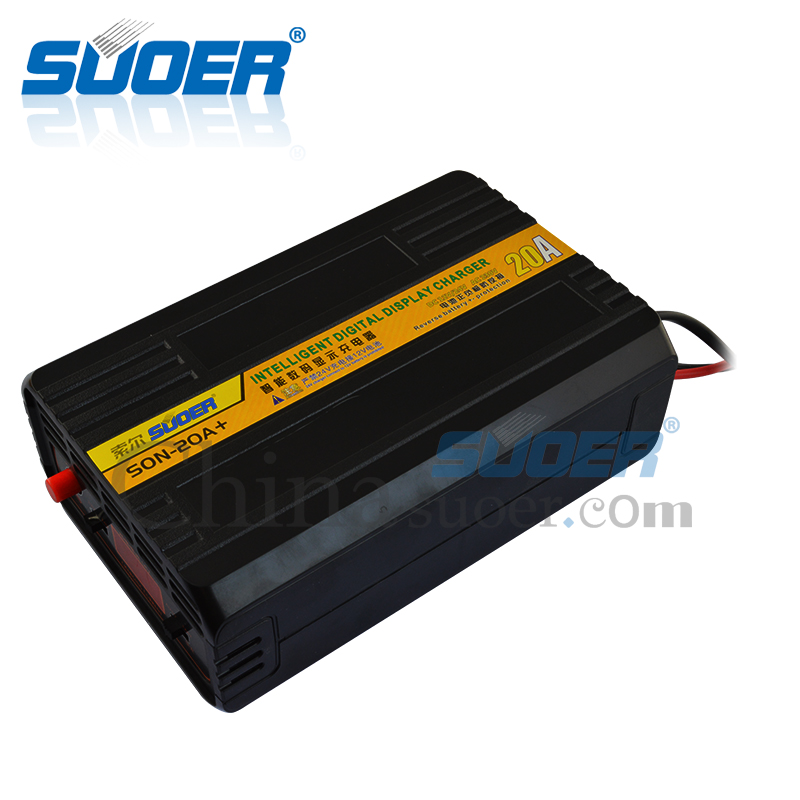

SON-20A+

12v 24v automatic portable car battery charger

SON-20A+

Battery Charger

Features:

Max charging current:10A/20A

Rated input current:220V

Adopt PWM charging mode,auto stop charging when the battery gets fully charged

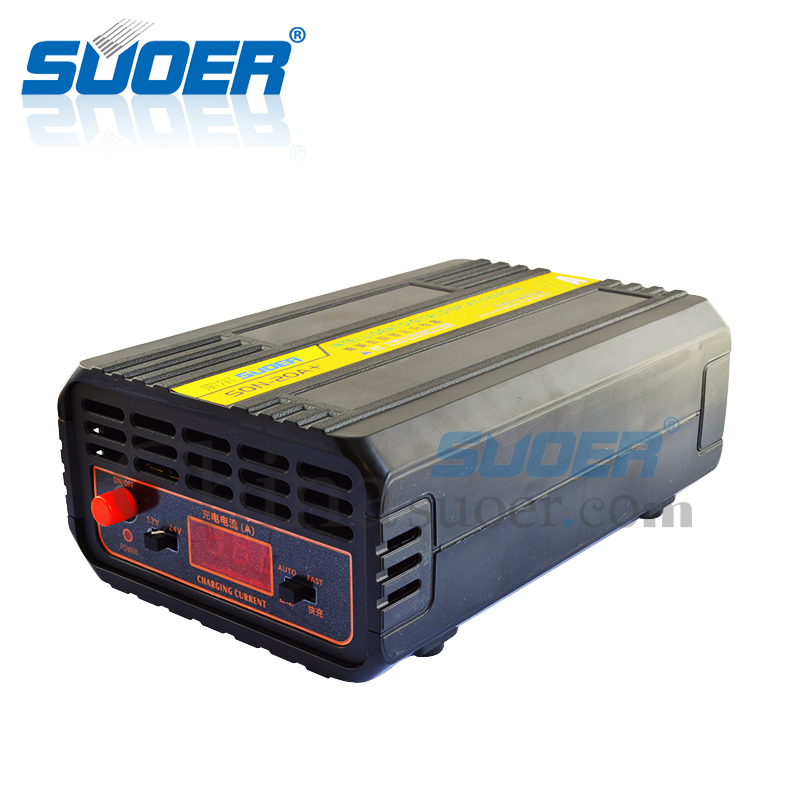

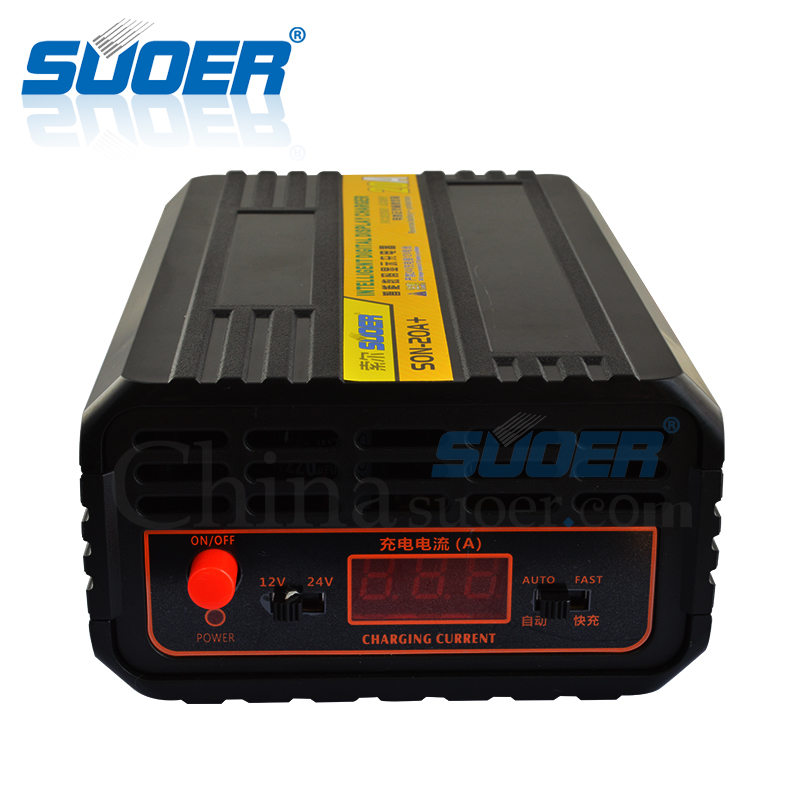

New LED screen display control panel

6V/12V manual switch(SON-10A+),12V/24V manual switch(SON-20A+)

Applicable for gel battery and lead-acid battery

INQUIRE NOW

SEND ENQUIRY

  X
Submit

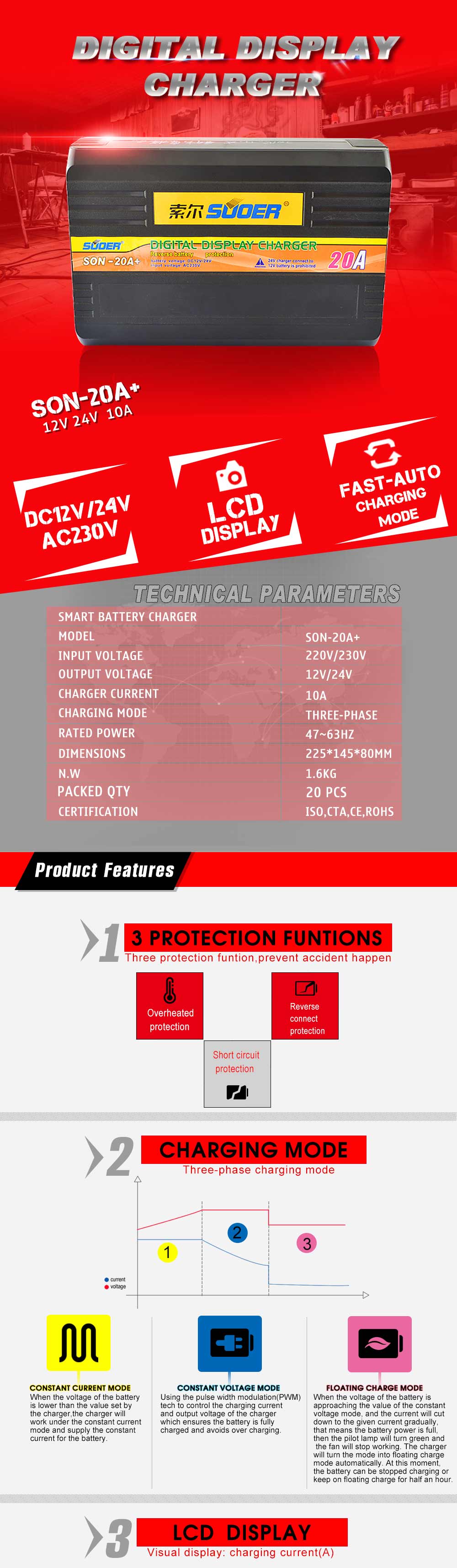

Specifications

Smart battery charger



Model

SON-20A+

Input Voltage

220V~230V

Output Voltage

12V/24V

Rated Frequency

47-63HZ

Charger Current

10A

Charging mode

Three-phase

Dimensions

225*145*80mm

N.W

1.6KG

Packed Qty

20 PCS

Certification

ISO,CTA,CE,RoHs



Video Tutorial

Three-phase charging mode Constant current mode: When the voltage of the battery is lower than the value set by the charger,the charger will work under the constant current mode and supply the constant current for the battery.

Constant voltage mode: Using the pulse width modulation(PWM) tech to control the charging current and output voltage of the charger which ensures the battery is fully charged and avoids over charging.

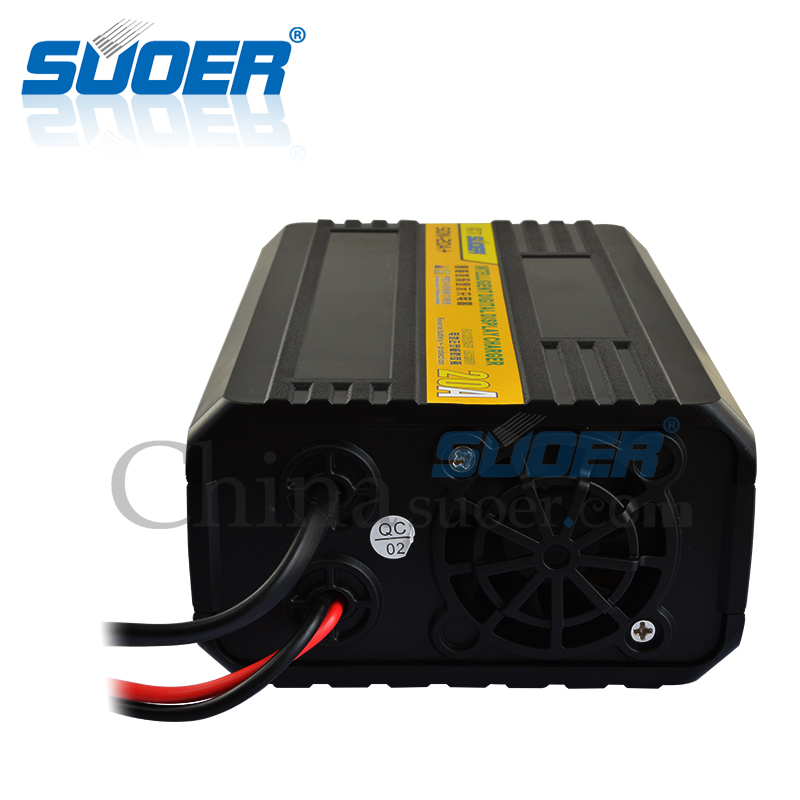

Floating charge mode: When the voltage of the battery is approaching the value of the constant voltage mode, and the current will cut down to the given current gradually, that means the battery power is full, then the pilot lamp will turn green and the fan will stop working. The charger will turn the mode into floating charge mode automatically. At this moment, the battery can be stopped charging or keep on floating charge for half an hour.

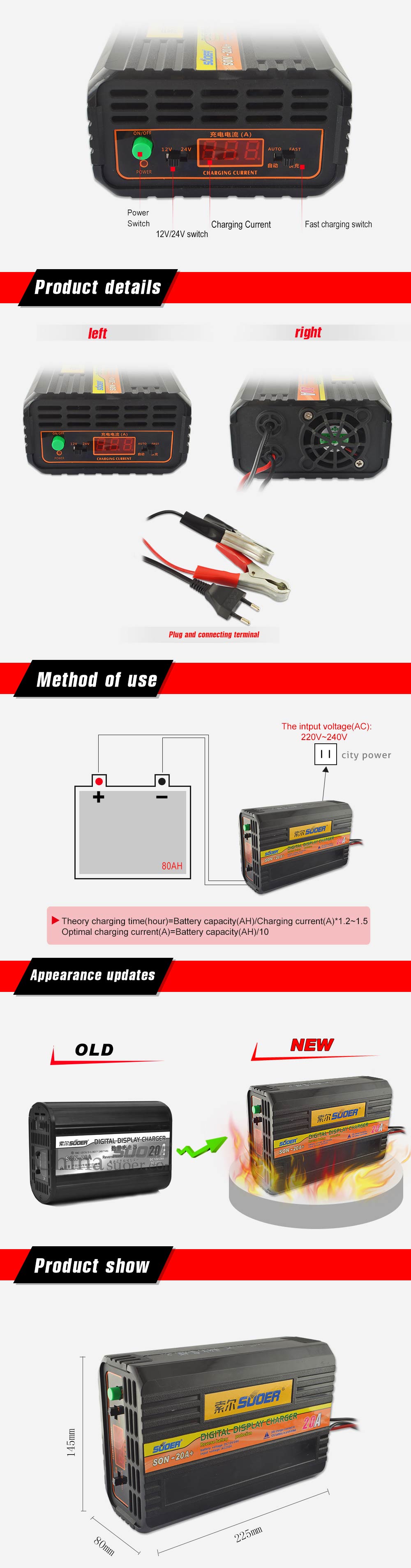

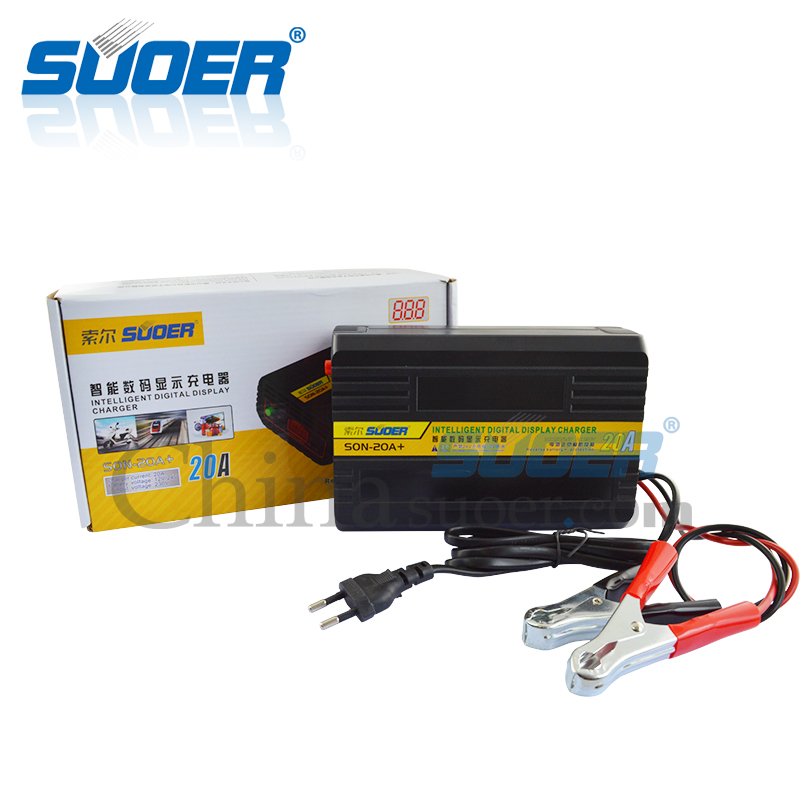

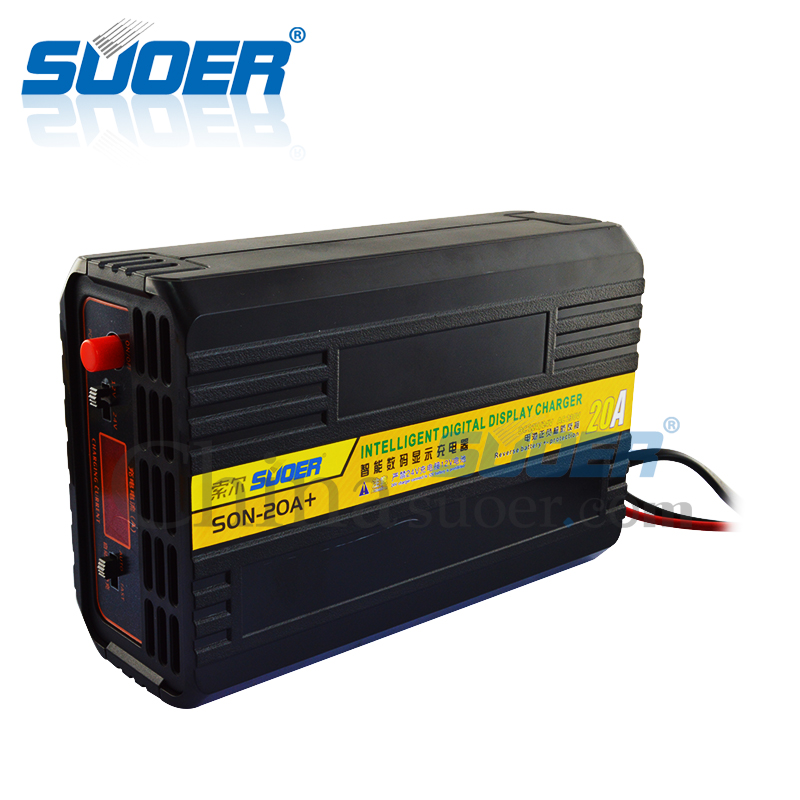

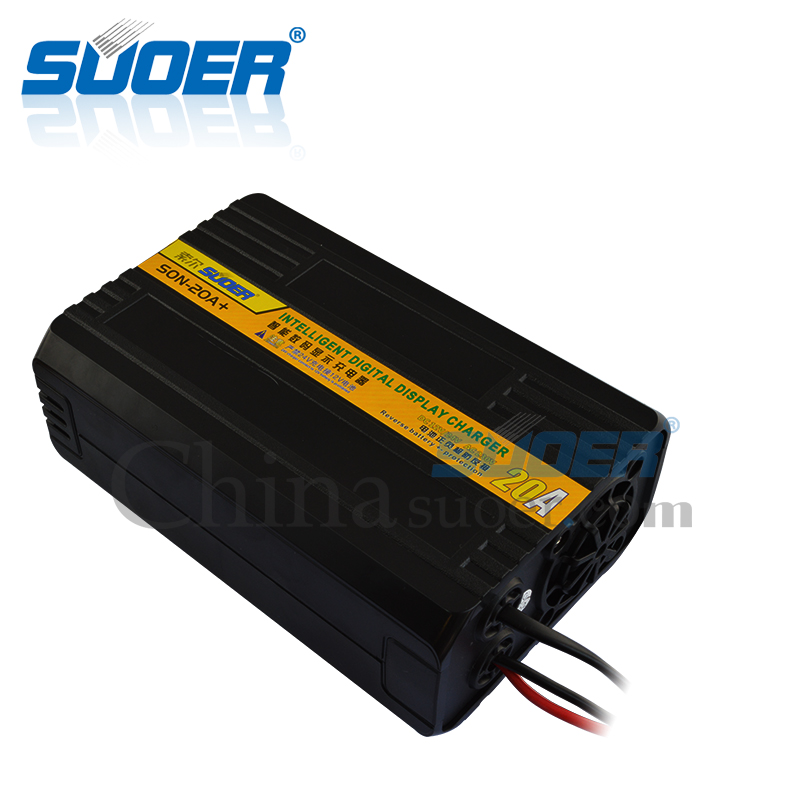

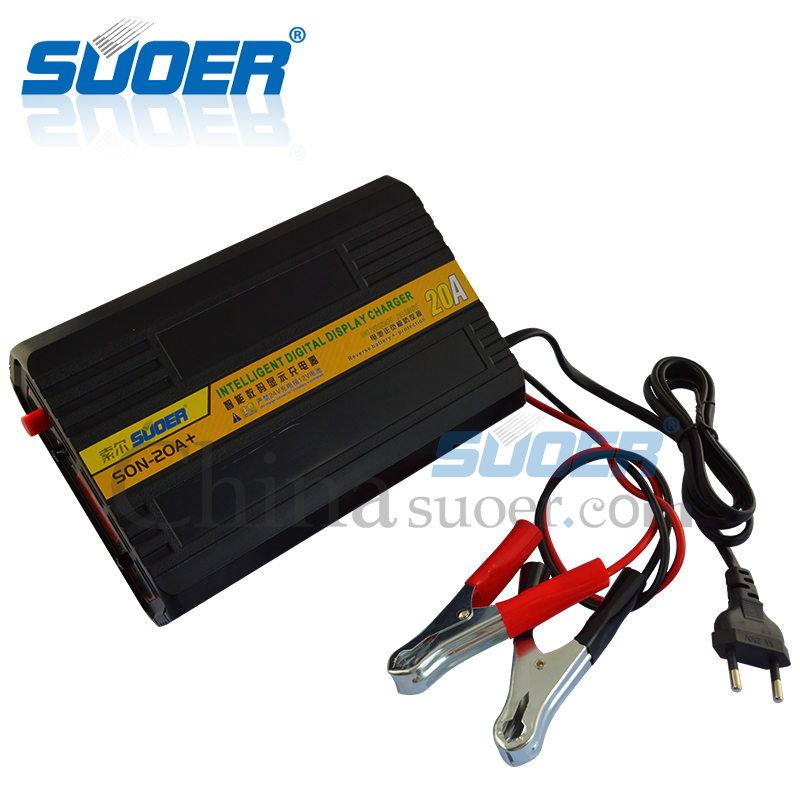

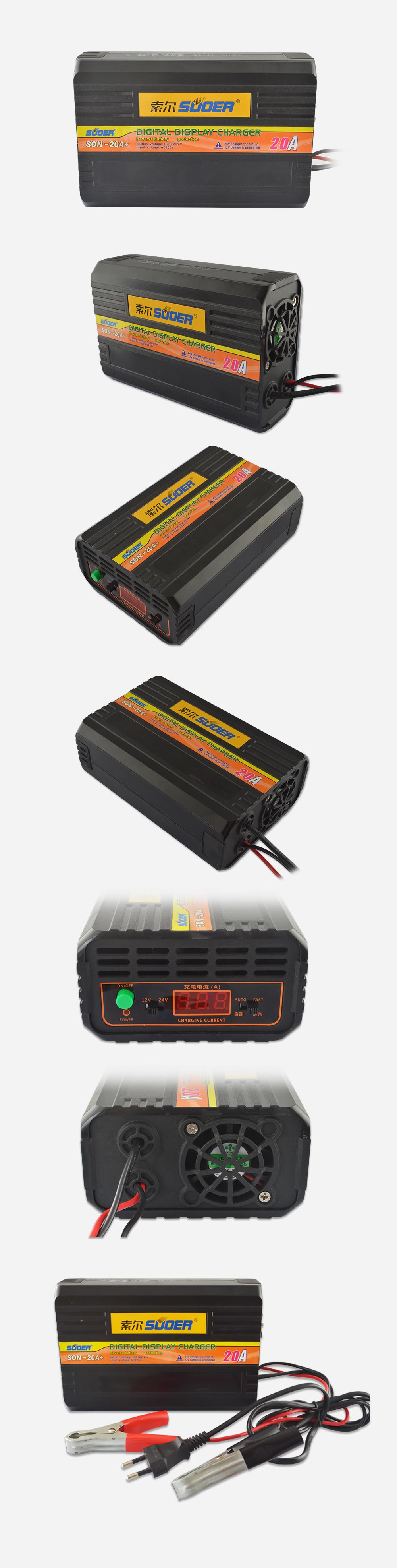

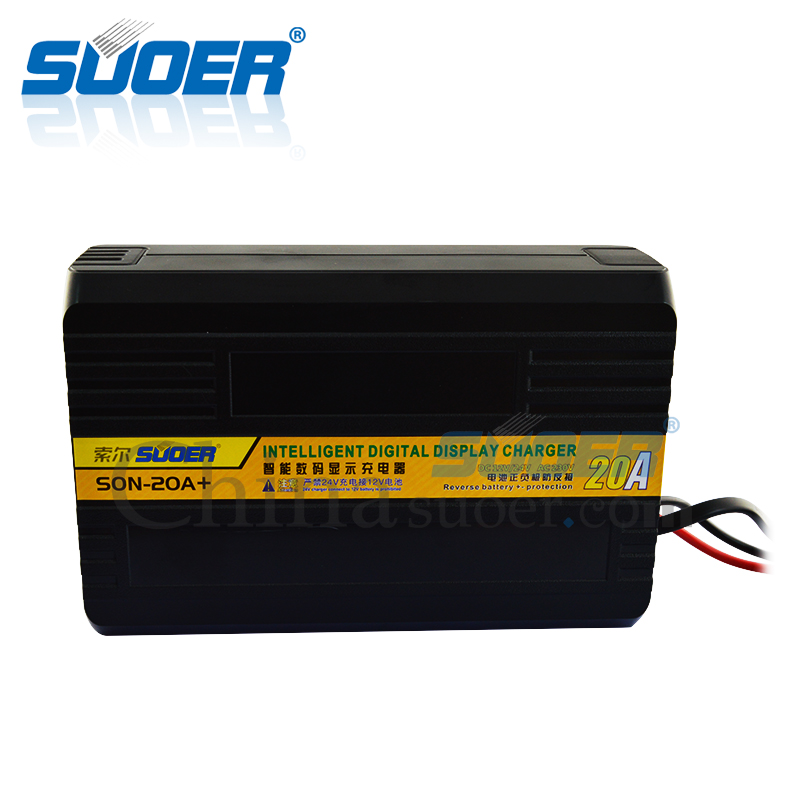

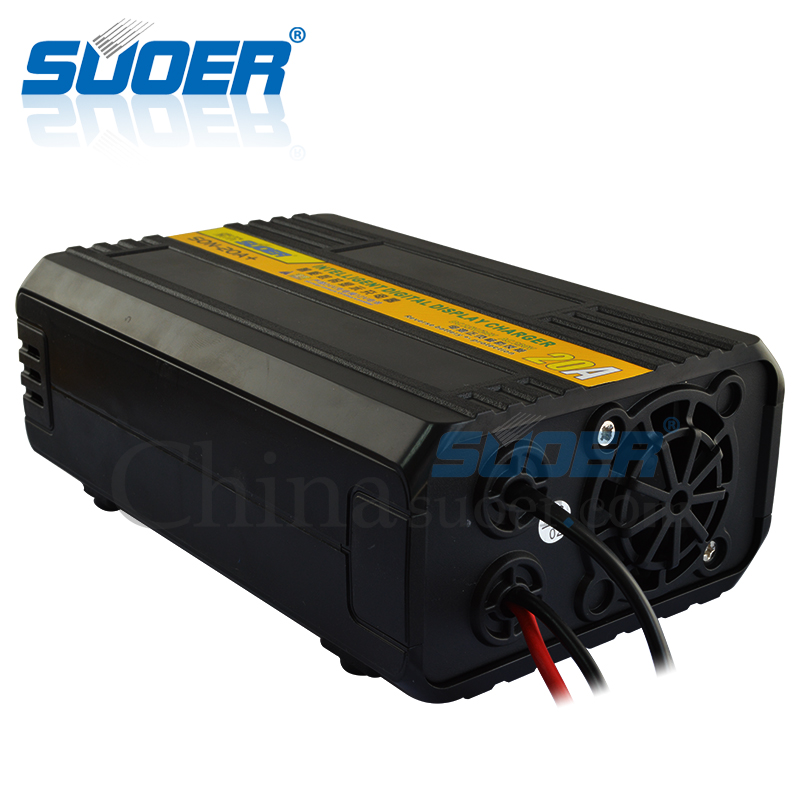

Product Photos
