ST-H1230

solar controller mppt 2USB 30a 12v 24V power mppt solar charge controller

ST-H1230

MPPT Solar Controller

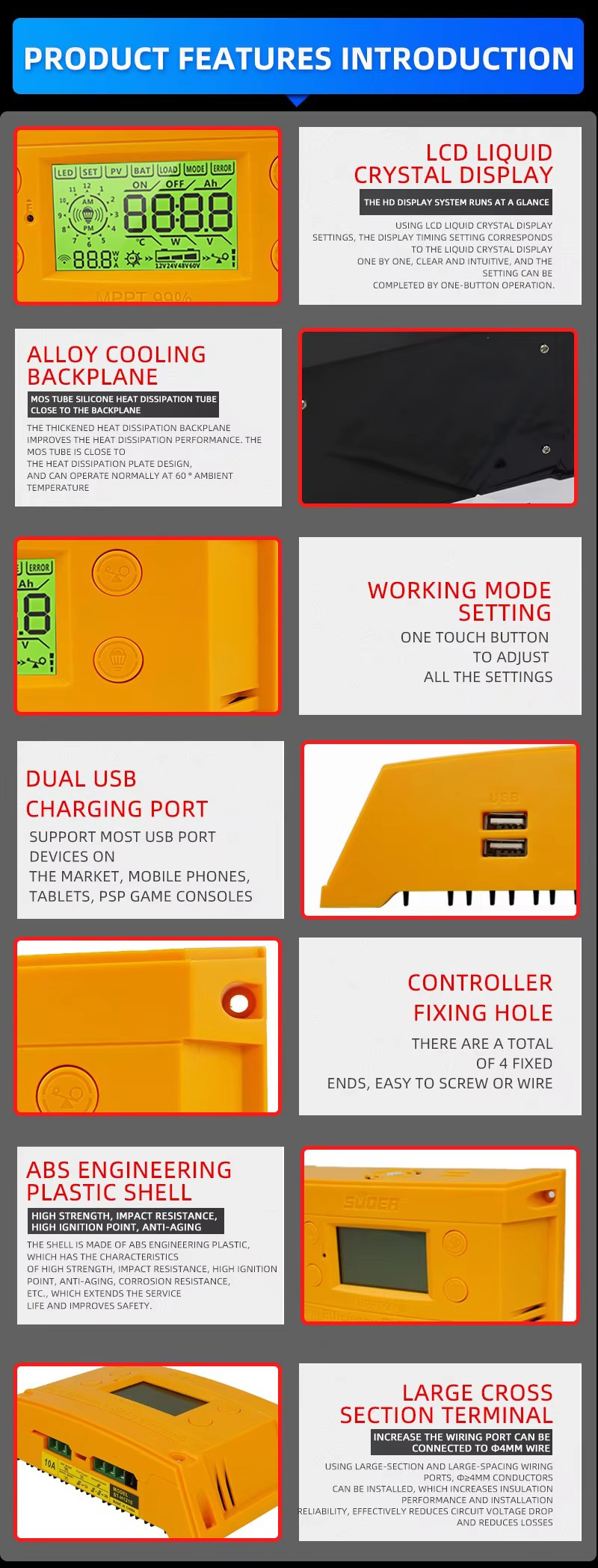

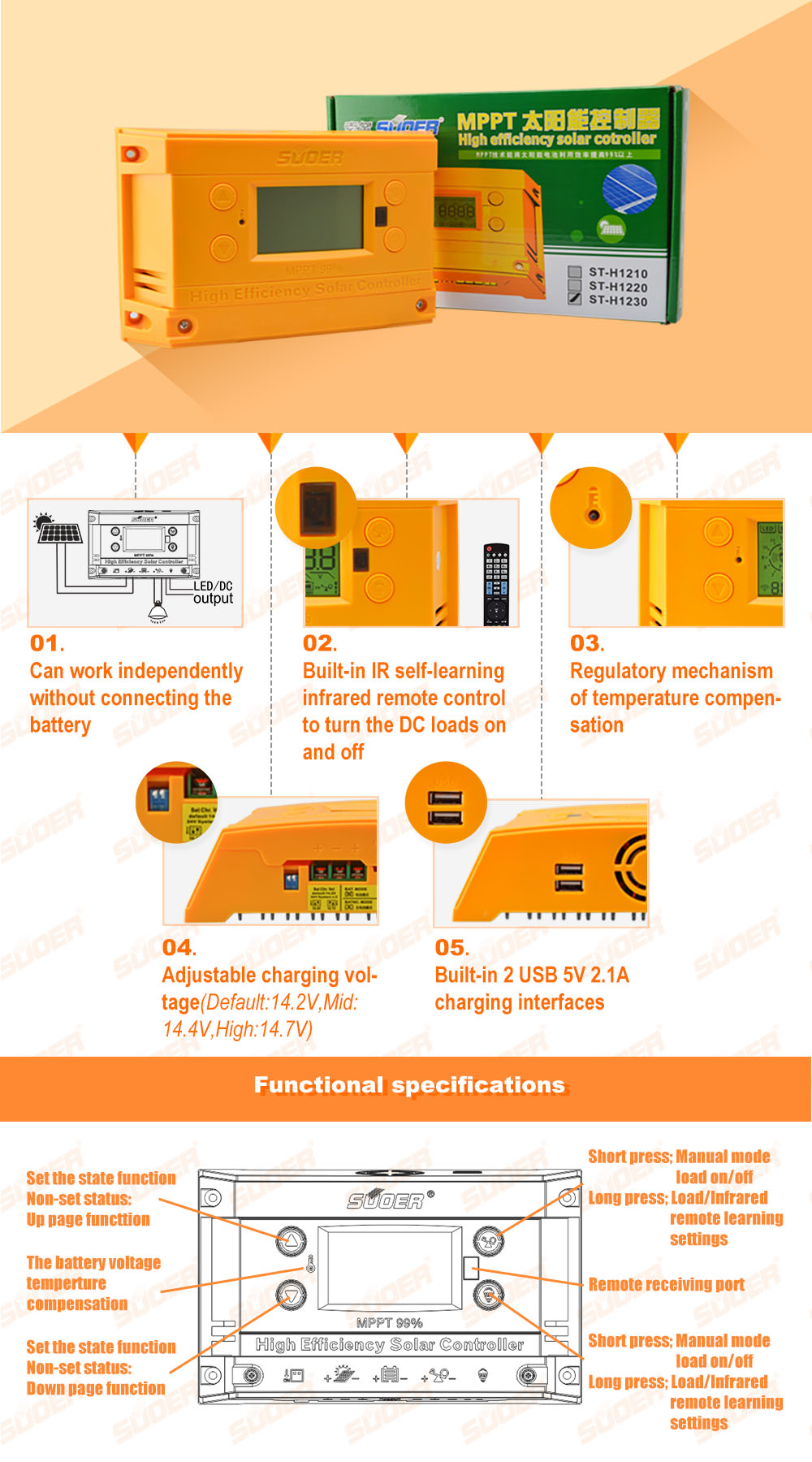

Features:

MPPT technology

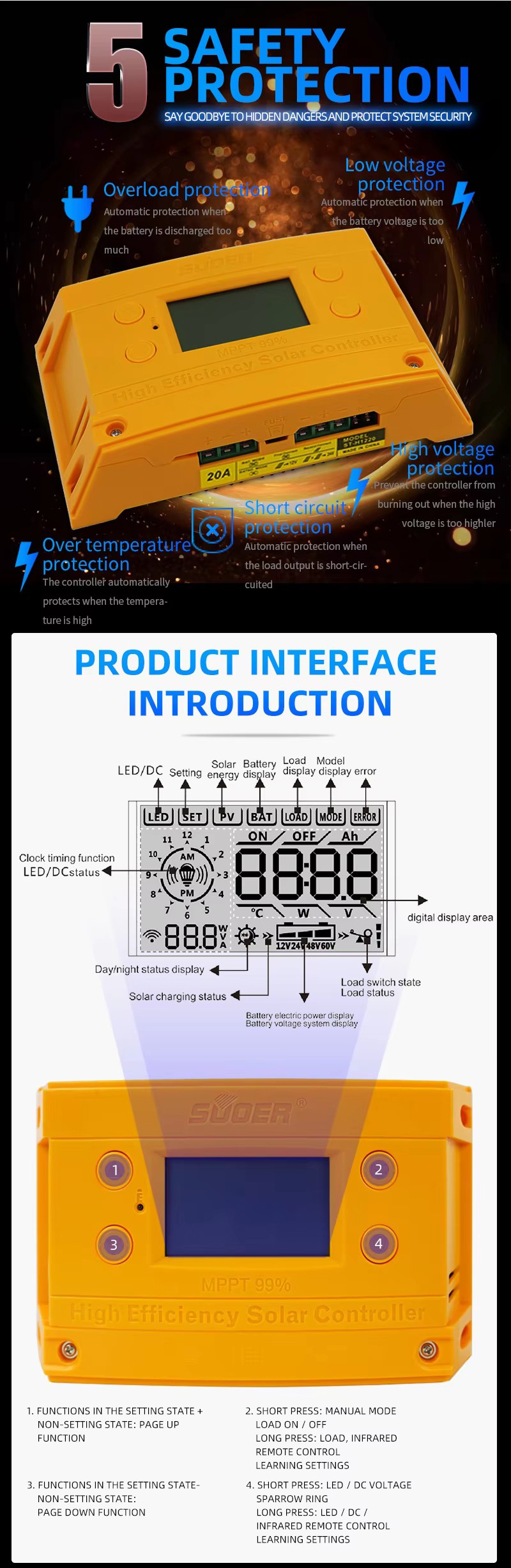

1. Clock timing function:LED/DC Status

2. LED/DC ,Solar energy/Battery/Load/Model/Display,Day/Night Display,Battery Electric Power/Battery Voltage System Display.

3. Built-in two 5V 1A USB Interface.

4. Solar Charging Power Real Time Temperature.

5. Reverse protection,short circuit protection

6. Designed for 12V/24V solar power system

7.Hanging style design makes it convenient to install

8.Available in 10A/20A/30A

9.MPPT controller Connected to the PC,it's Convenient query the whole PV power generation system information and modify the other parameters

INQUIRE NOW

SEND ENQUIRY

  X
Submit

Specifications

Model  ST-H1210 ST-H1220 ST-H1230
To adapt to the battery voltage 12V/24V Adaptive(Battery<16V;12V Stsyem Battery>18V;24V System)
Rating charger voltage 50V
Rating charger current 10A 20A 30A
Recommended power
of solar panel
12V Open-loop Voltage 18-24V Standard Solar Panel 150W*1
24V Open-loop Voltage 36-48V Standard Solar Panel 300W*1
Recommended number
of solar panel
1 Pieces in parallel 2 Pieces in parallel 3 Pieces in parallel
Charging way Intelligent Charging MPPT Maximum Power Point tracking
Constant voltage charging voltage Default:14.2V(24V battery*2)parameters can be set in menu /Quick switch availabe
Constant current charging current 10A 20A 30A
Under-voltage Protection voltage Default:10.5V(24V battery*2)parameters can be set and adjusted in menu
Owe pressure recovery voltage Default:12.5V(24V battery*2)parameters can be set and adjusted in menu
Battery charge voltage
 summer and winter
 temperature compensation
16mV/°C @12V           32mV/°C @24V
Load overload automatic Recovery time 30s
DC output 5V 2.1A
Double USB output 9V/10.5V/12V 1A  Output voltage can be remotely controlled
Stand-by power consumption <20mA
Operating temperature range  -20°C~55°C
Overall dimensions 208mm*127mm*53mm
Installation of fixed size 192mm*96mm
Product weight(G.W) 0.52kg 0.54kg 0.56kg

Video Tutcrial

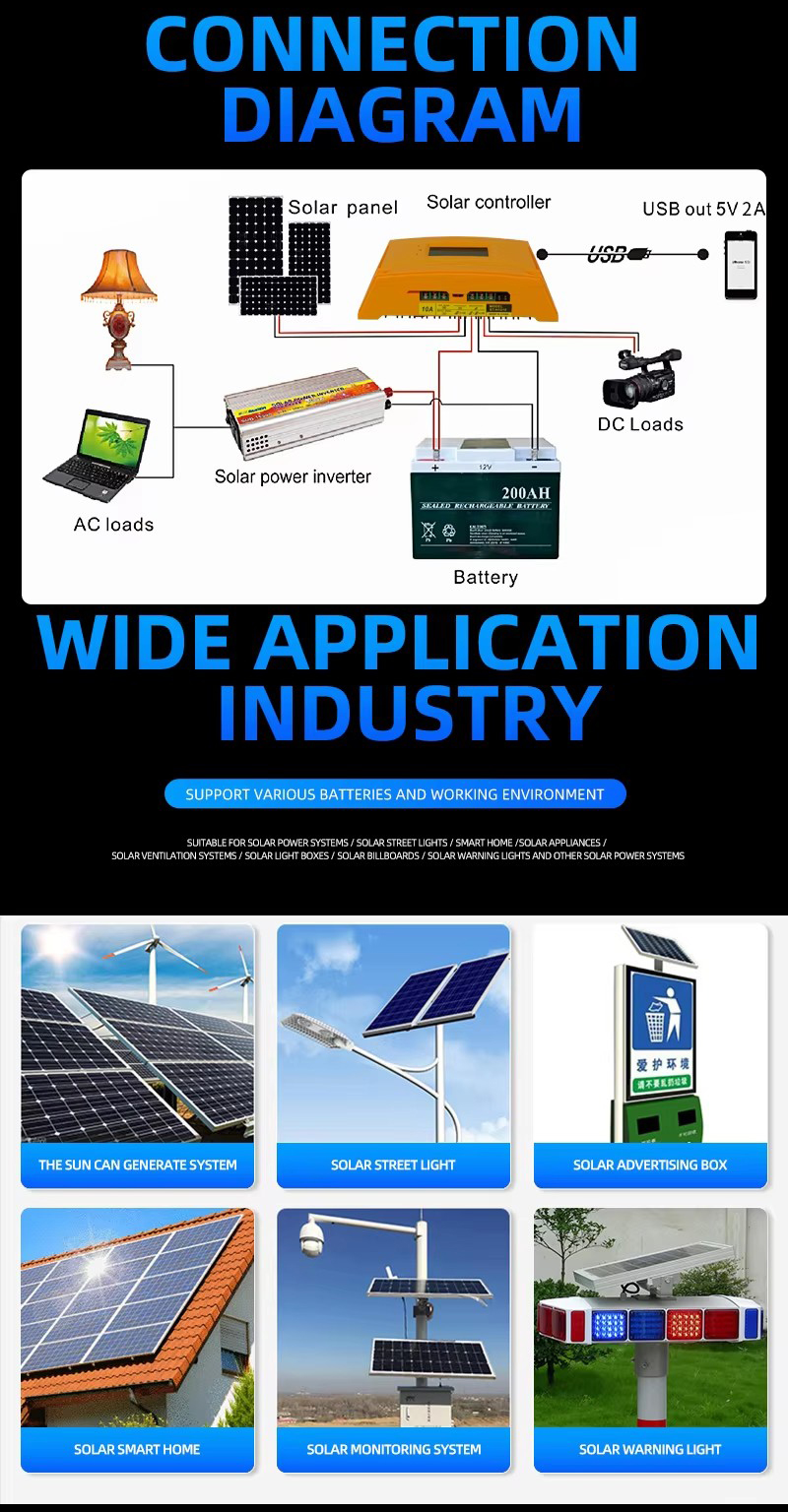

MPPT Solar Power Controller of light and night away less than 10 ma power flow, ideal for small power solar products, such as solar street lamp light, streetlight, DC Load, illumination, solar power system and so on.

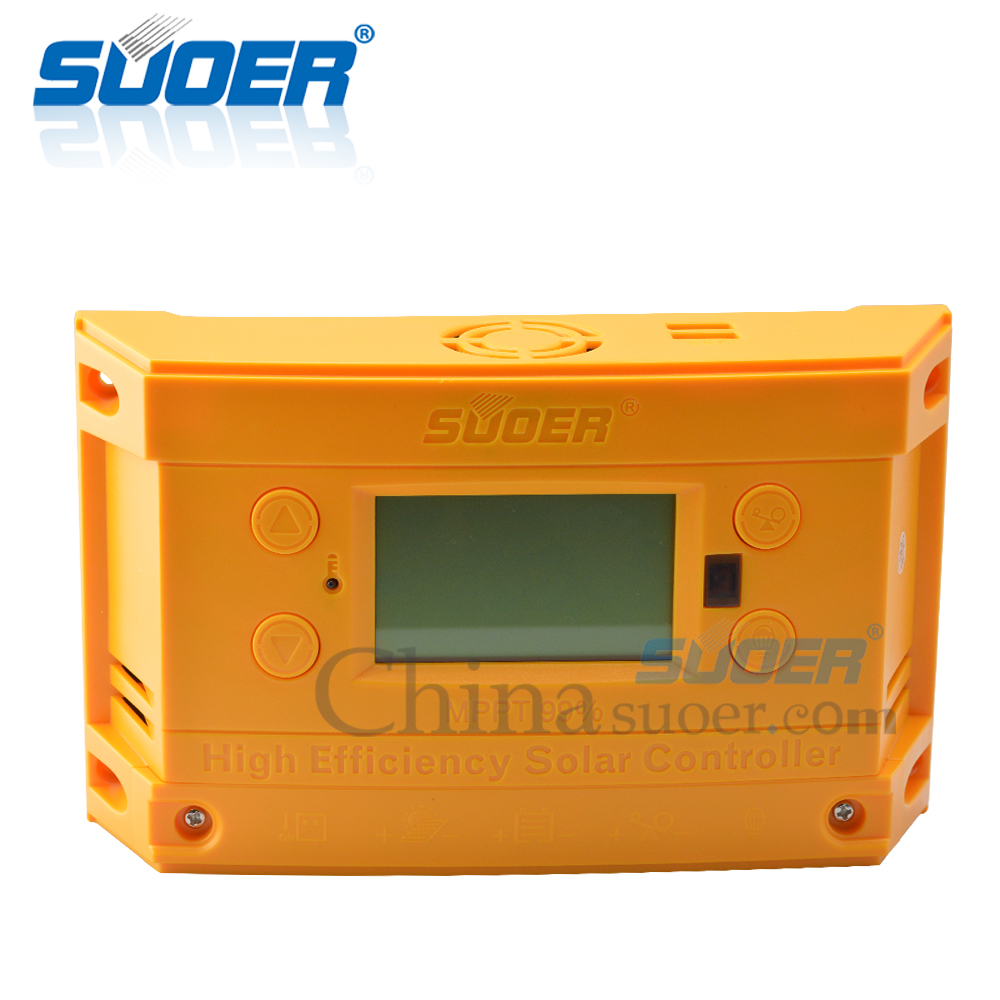

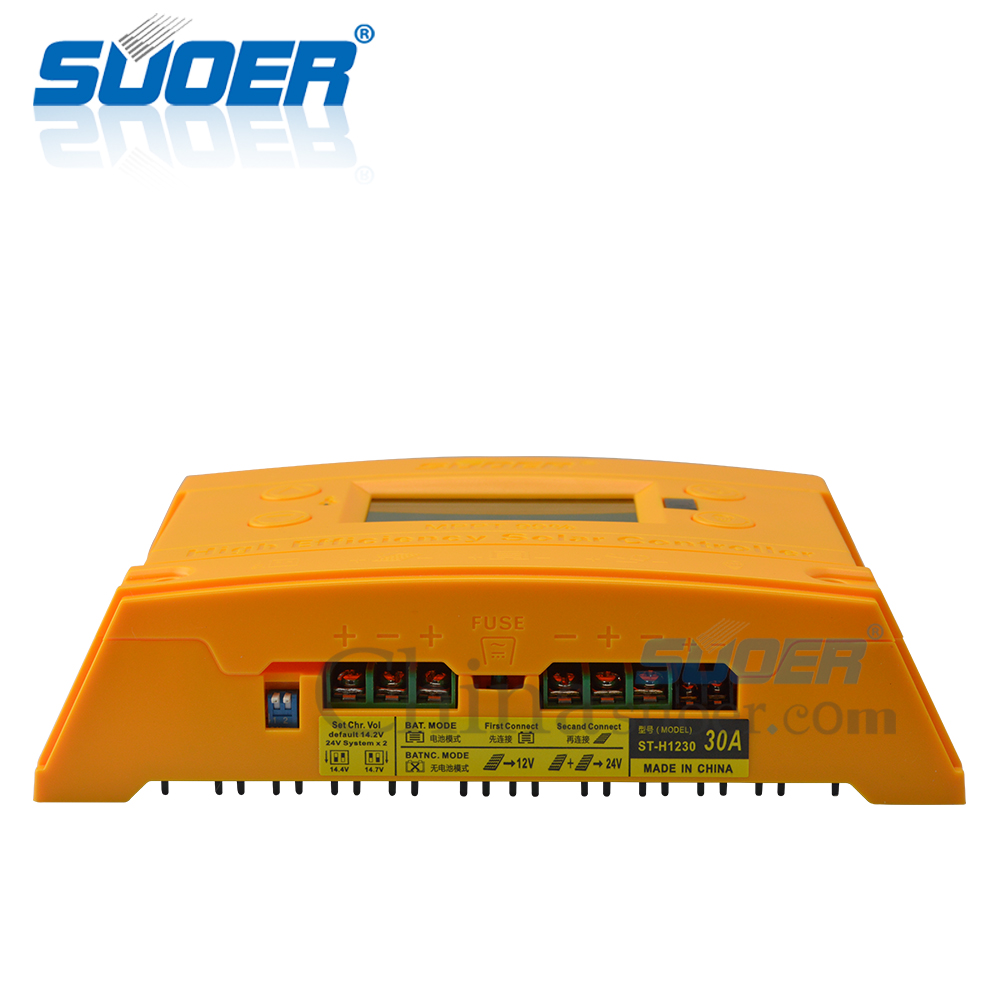

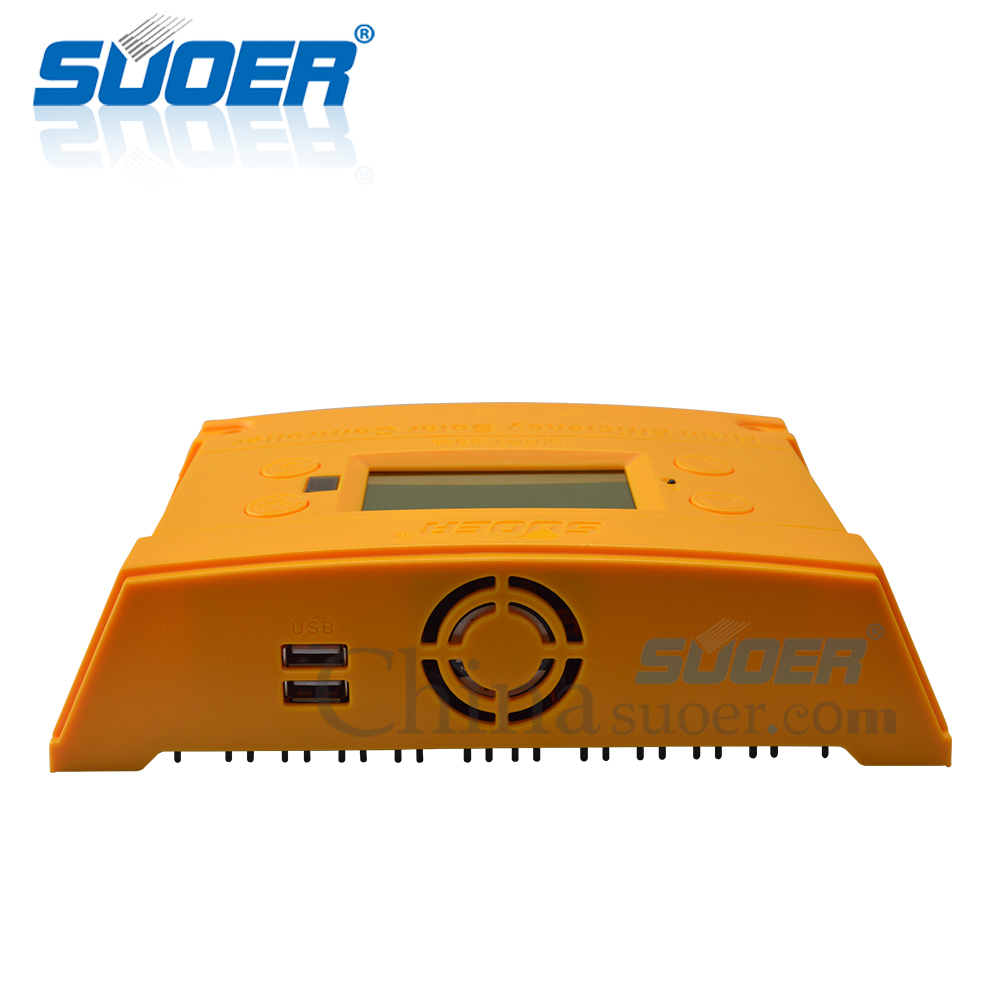

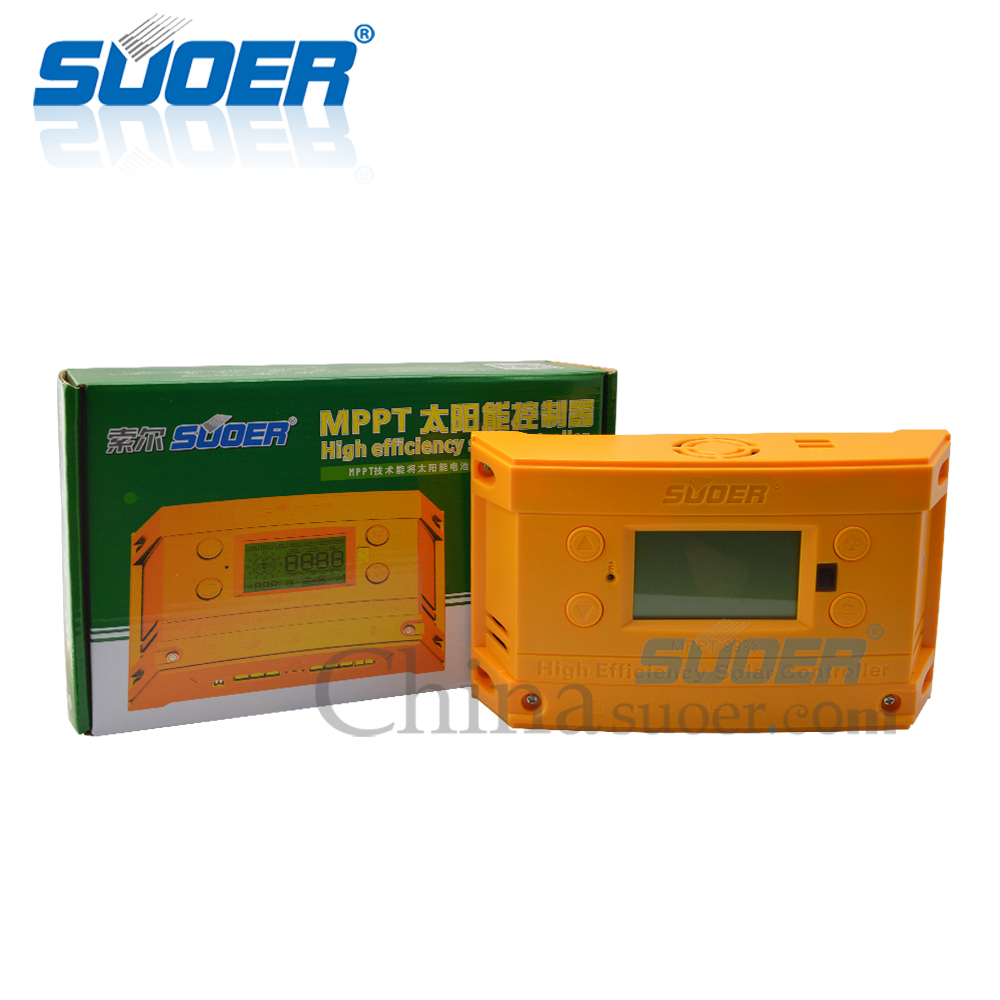

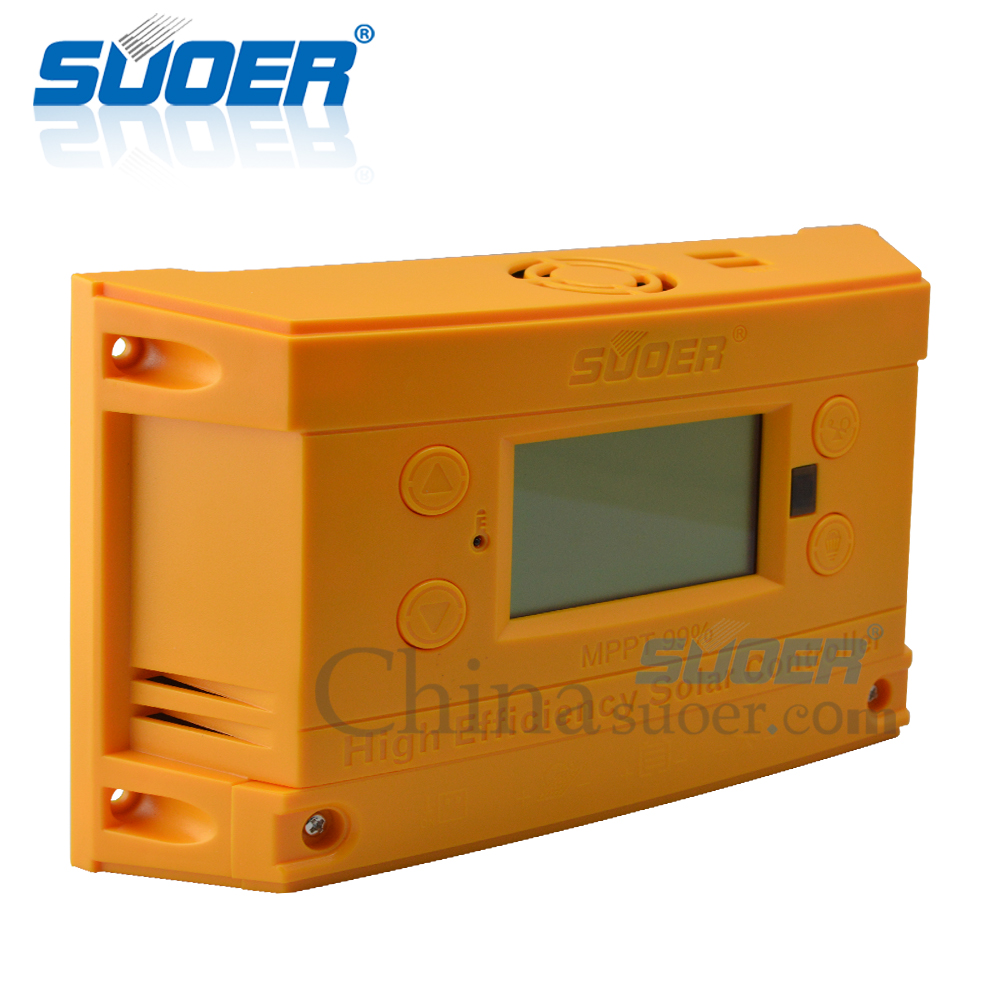

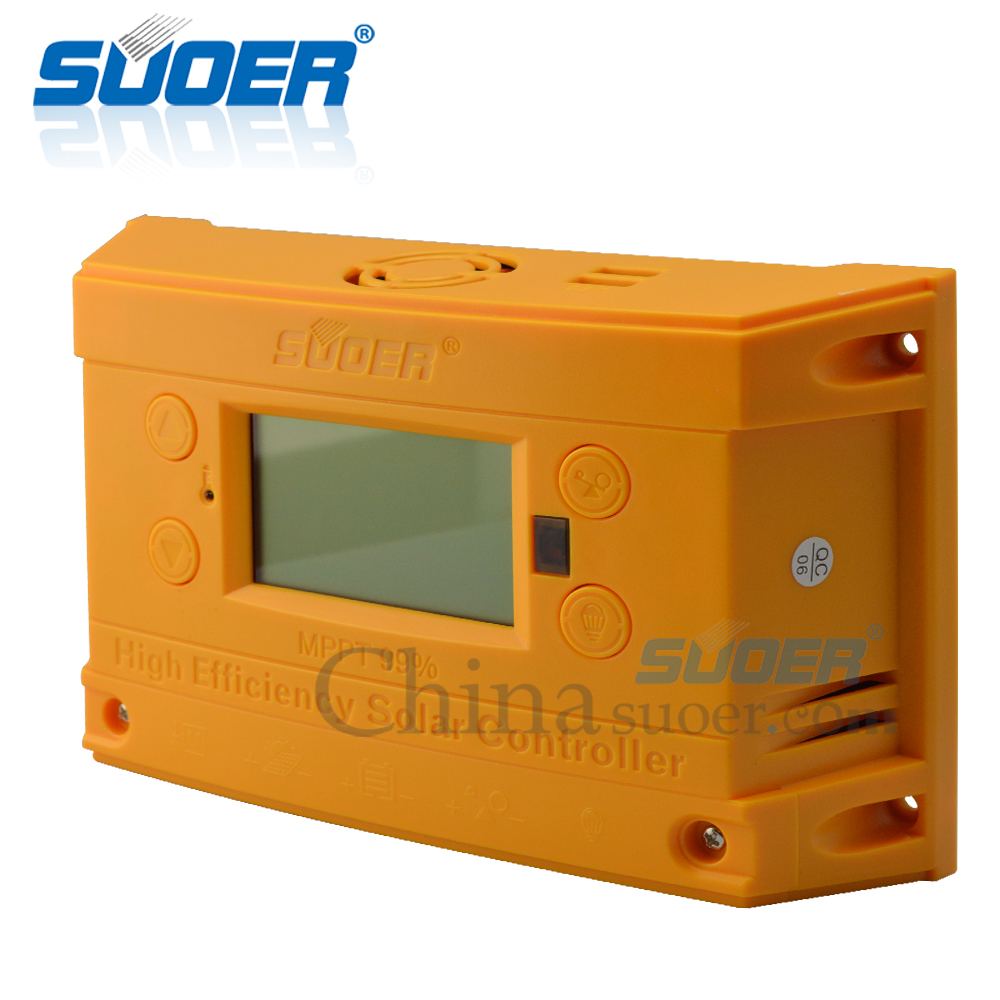

Product Photos
