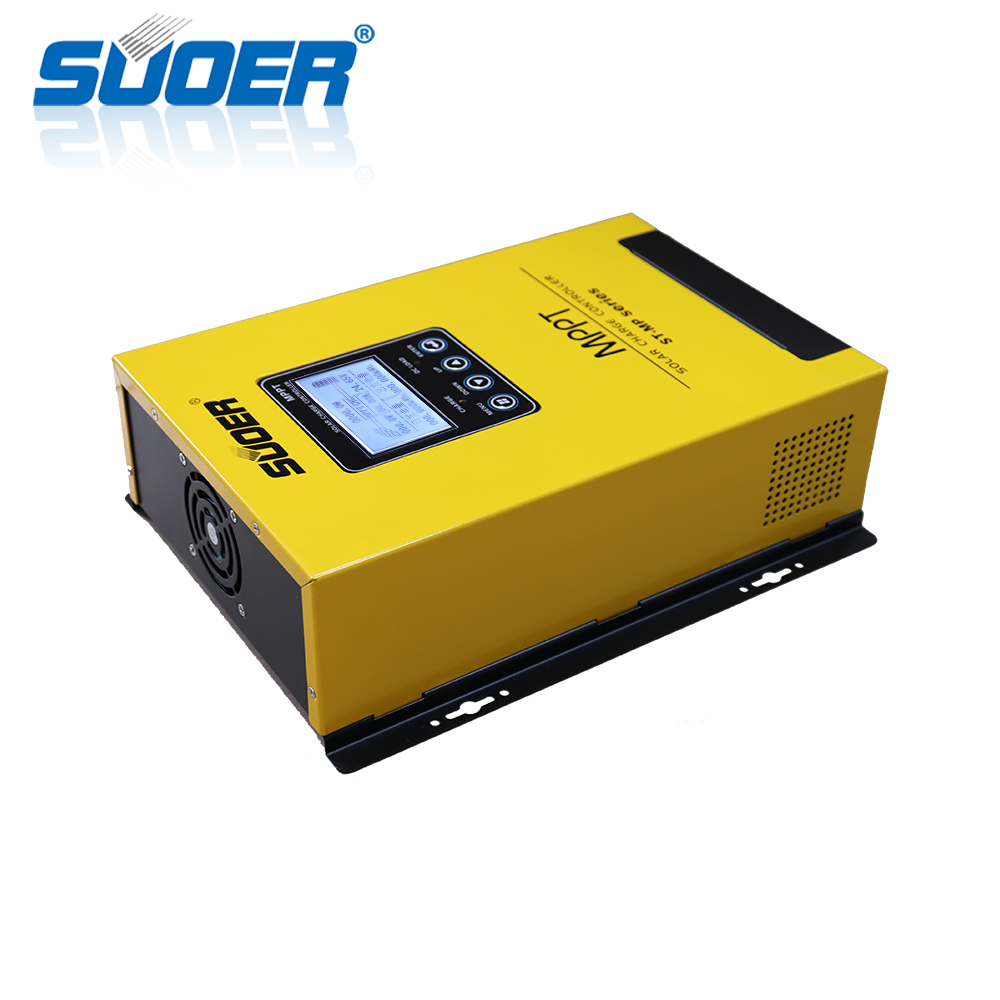

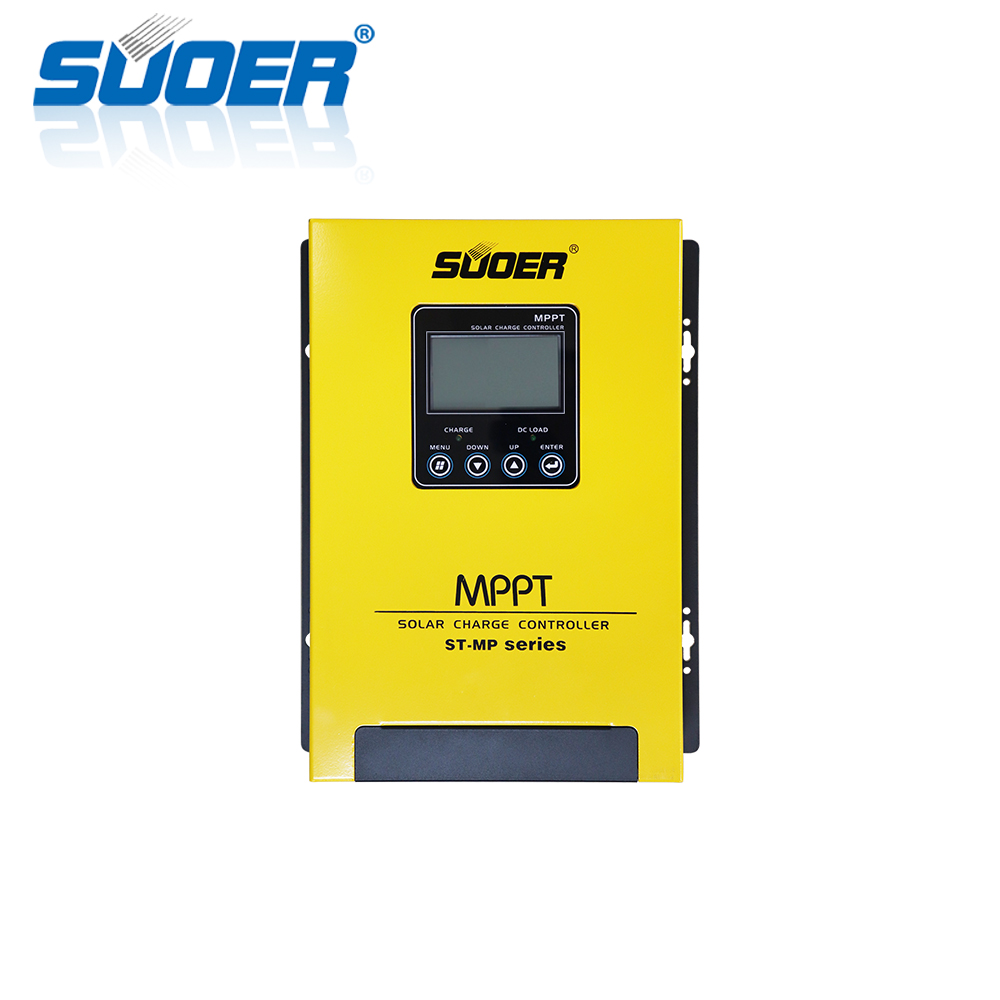

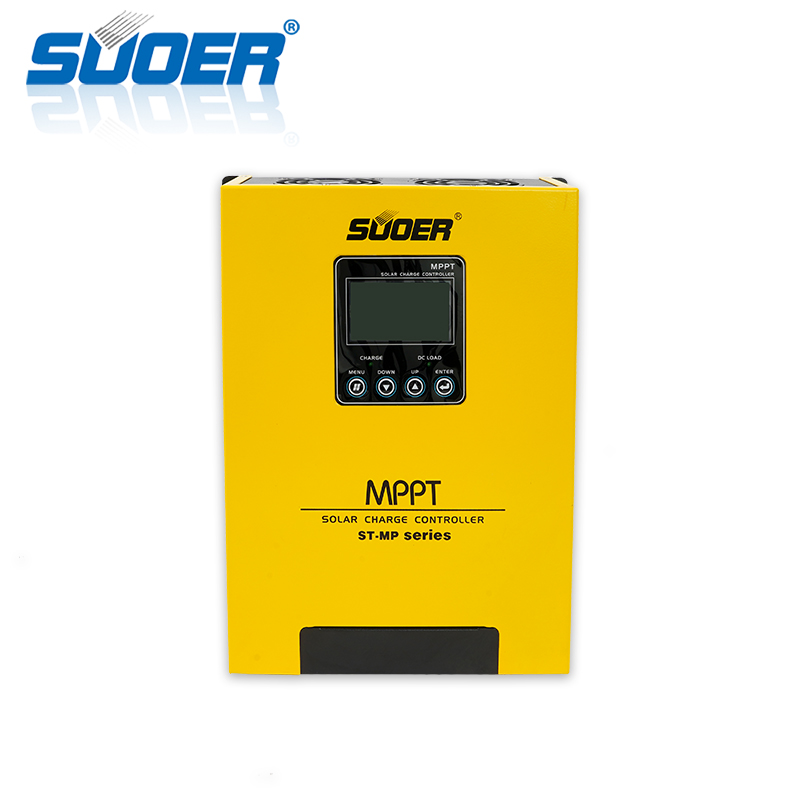

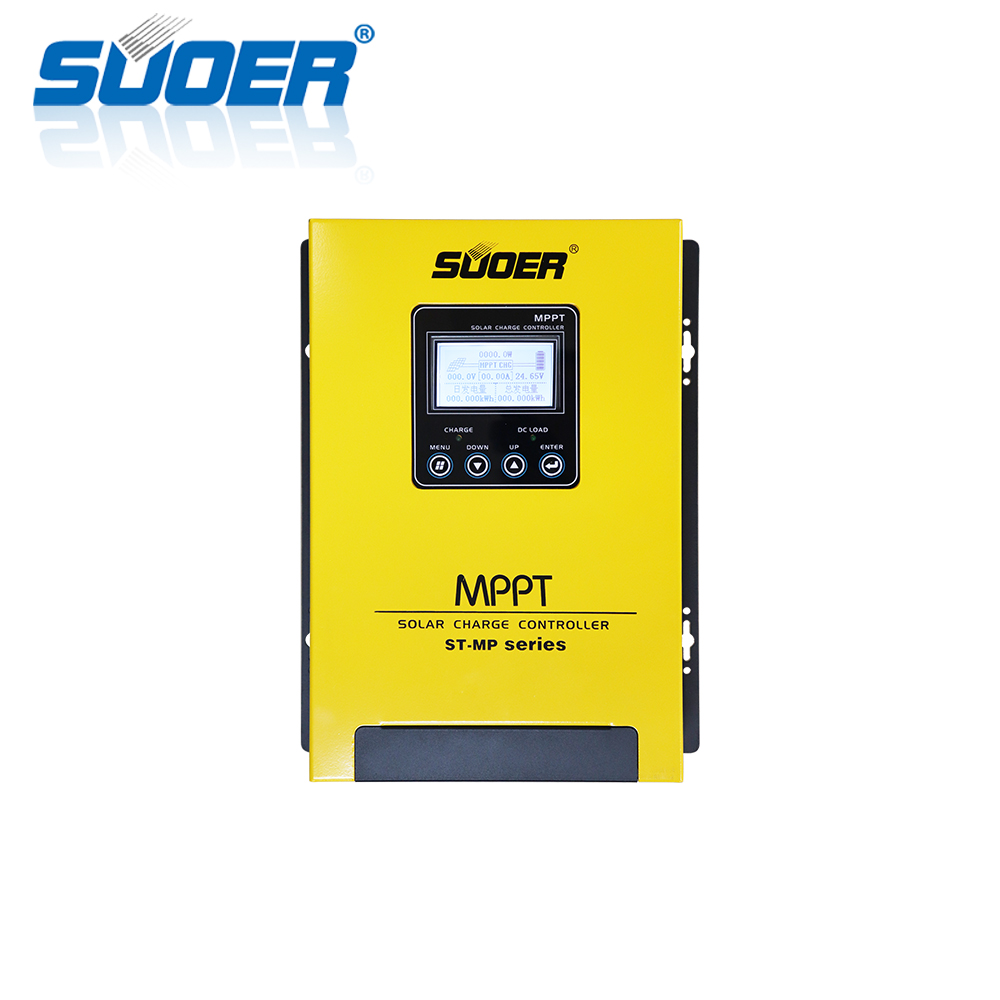

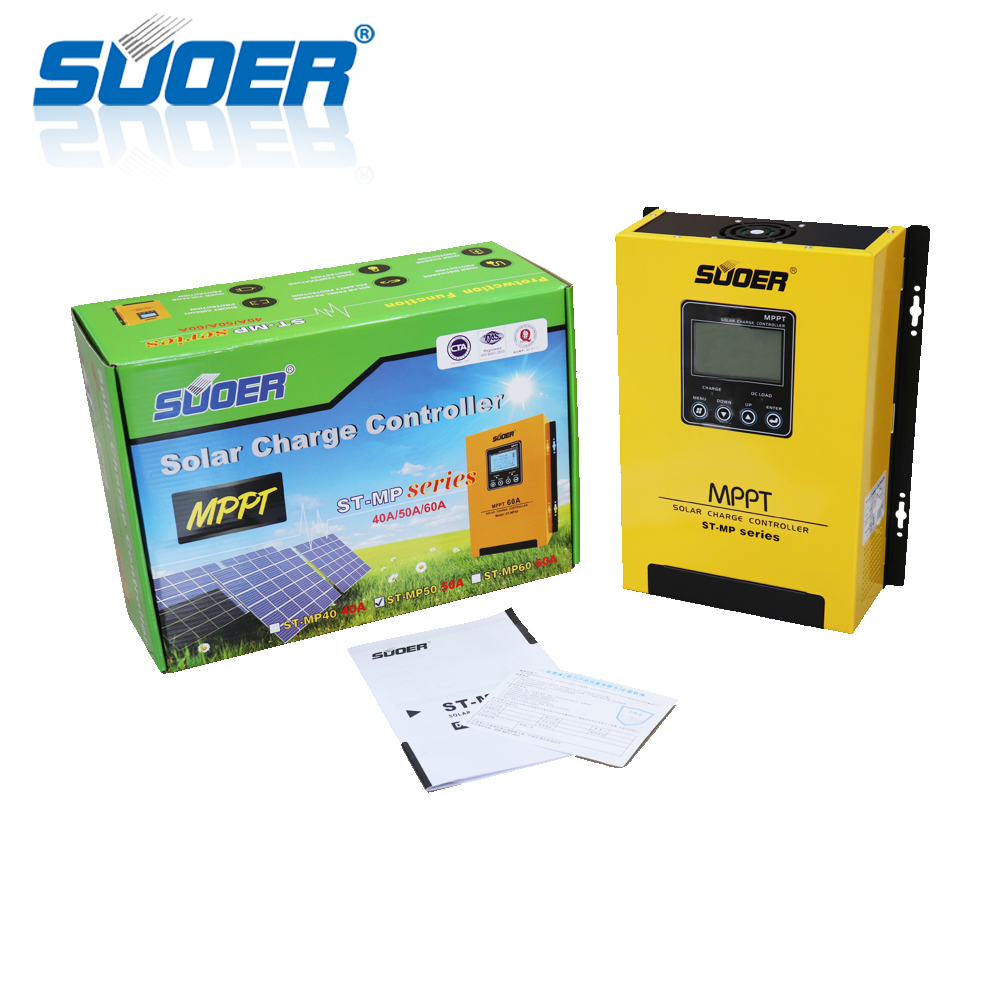

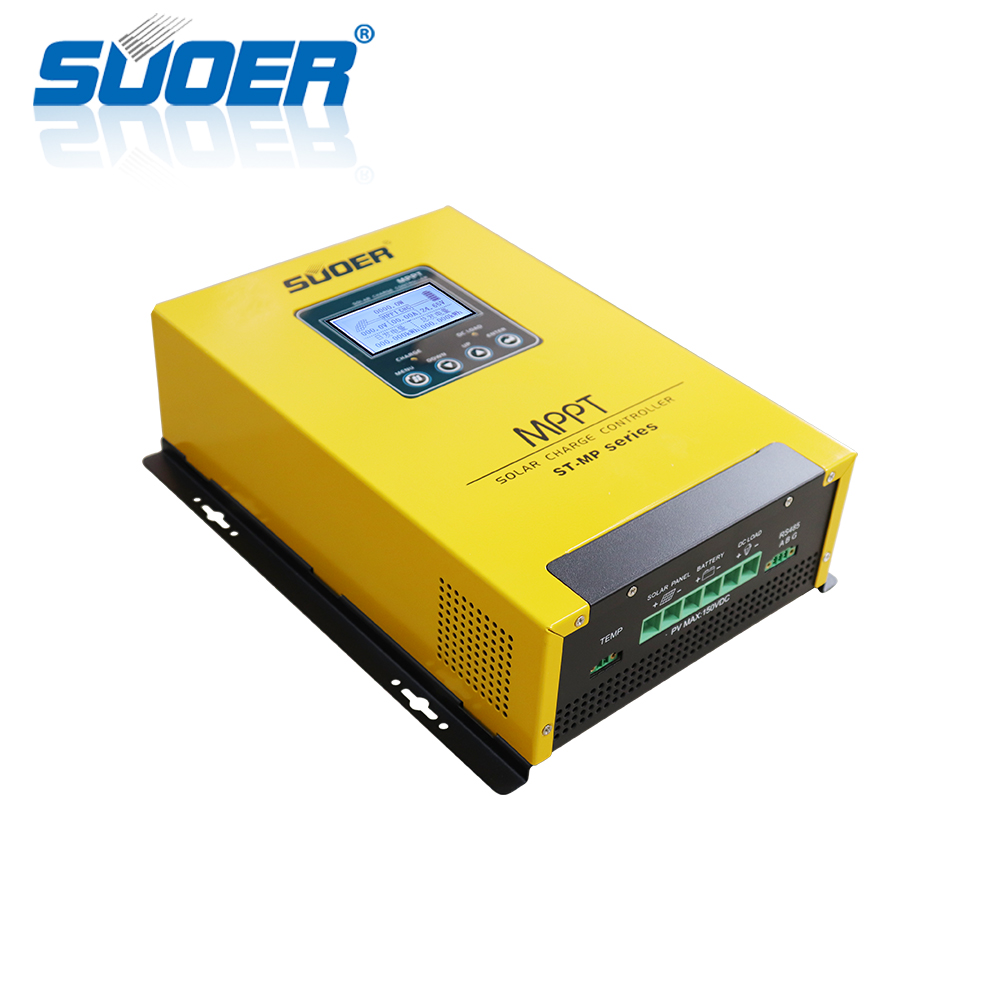

ST-MP-60A

12V/24V/48V 60A MPPT Solar Charge Controller

ST-MP-60A

MPPT Solar Controller

Features:

   Max input voltage of solar panel:150V

   Clock timing function,light control mode,Time control mode

   Regulatory mechanism of temperature compensation( Auto regulate the charging voltage according to the temperature sensors )

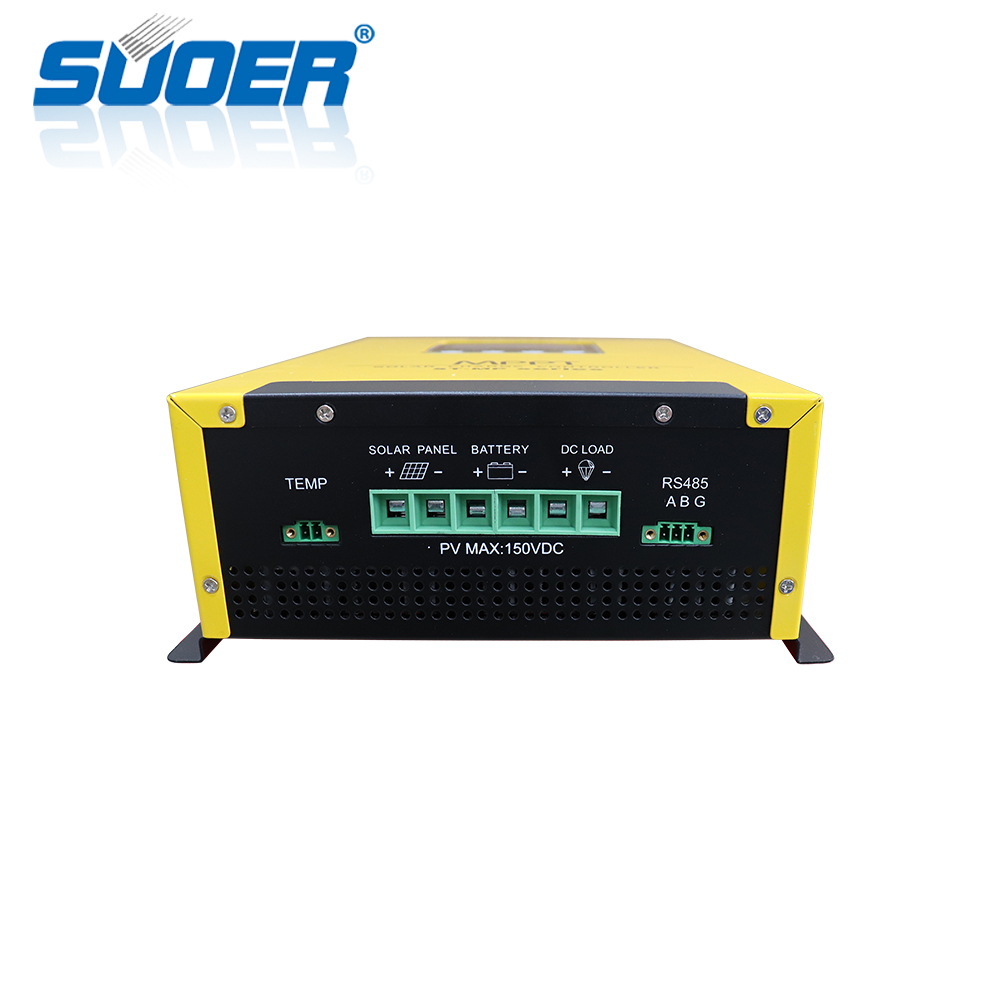

   Built-in solar data monitoring interface(RS485)

   Solar charging voltage can be regulated

   LCD Display with backlight

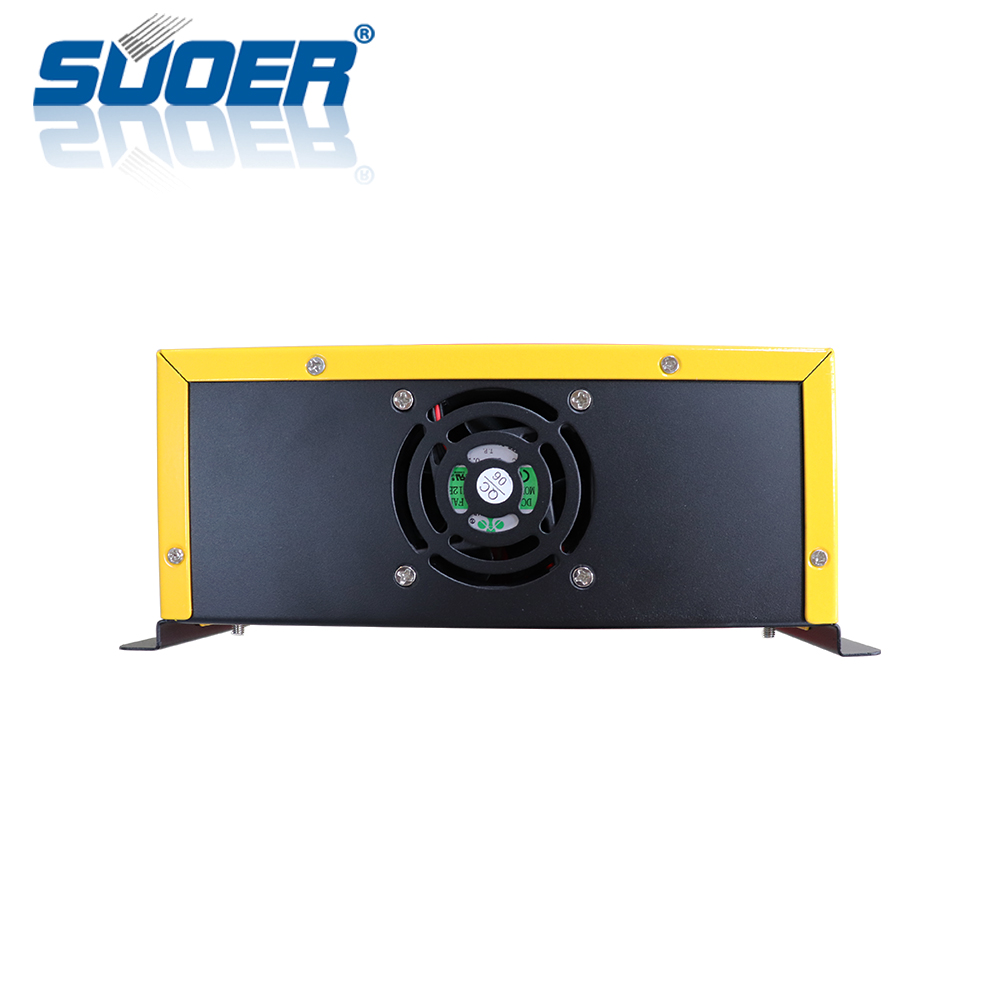

   Good heat dissipation effect with less noise

   Cable specification:>=10 square millimetres(Copper cable)

   Reverse protection,short circuit protection

   Auto identify system voltage of 12V/24V/48V

   Hanging style design makes it convenient to install

   Available in 50A/60A

INQUIRE NOW

SEND ENQUIRY

  X
Submit

Specifications



Input Characteristics
charging mode  mppt maxmum work function point tracking automaticlly
charging methods Three-phase:constant curent,constant voltage,floating
system type DC 12V/24V/48V Auto identification
system identification
of voltage
12V system <16V
24V system  >18V <33V
48V system >35V
soft-start time 12V/24V system <10S
recovery time of dynamic response 12V/24V system 500us
recovery time 12V/24V system >96.5%
utilization rate of photoviltaic modules 12V/24V system >99%
Input Characteristics
MPPT working voltage abd scope 12V system DC18V~DC150V
 24V system  DC34V~DC150V
48V system DC65V~DC150V
photovoltaic(pv)input low
voltage protection
12V system Battery voltage+1V
 24V system
48V system
photovoltaic(pv)input low
voltage recovery
12V system Battery voltage+5V
 24V system
48V system
Maximuminput voltage 12V/24V/48V system DC160V
Input over-voltage protection 12V/24V/48V system DC150V
Input over-voltage recovery 12V/24V/48V system DC145V
maximum power of solar panel   50A 60A
12V system 700W 900W
 24V system  1400W 1700W
48V system 2800W 3400W
