PL-5KVA

Suoer 5000va 48VDC 220VAC 5KVA Pure Sine Wave Low Frequency Hybrid Solar Inverter with 50A Charger and MPPT Solar Controller 80A

PL-5KVA

Low Frequency Hybrid Inverter

Features:

64-bits DSP Intelligent control chipset.

LED and LCD display with multi-function,Real time display of dynamic values.

Built-in automatic 50A AC charger and automatic AC mains switcher. Switch time ≤5ms.

Built-in 80A MPPT solar charging controller,maximize the solar energy.

High Transfer efficiency is above 90%.

Continuous stable pure sine wave output with built-in AVR stablizer.

3 times surge power,excellent loading capability.

INQUIRE NOW

SEND ENQUIRY

  X
Submit

Specifications

Model PL-1KVA PL-2KVA PL-3KVA PL-4KVA PL-5KVA PL-6KVA
Rated capacity 1000 2000 3000 4000 5000 6000
Input
Voltage (147-275)VAC (170-275)VAC
Frequency (50Hz/60Hz±5Hz)Auto
Output
Voltage AC220V±5%(battery mode)
Frequency 50Hz/60Hz±1%(battery mode)
Waveform pure sine wave
Efficiency ≥90%
Solar input voltage 24V(PWM)<55VDC
12V(PWM)<30VDC
(MPPT)<150VDC / 48V(PWM)<100VDC / 24V(PWM)<55VDC
Solar charge current  30A 60A 80A
Battery  Optional
Battery rated voltage 12/24VDC 24/48VDC 48VDC
Max AC charge current 5~15A 5~50A
Protect Overload/short circuit/battery high/low voltage/AC inputhigh/low voltage protection
Conversion way Interacive
Capacity of overload 110%~120%turn to bypass after 30secs, 160% maintain 300ms and then shut down
Operating environment
Temperature -20±75℃
Humidity 10%-90%
Size:L*W*H(mm) 280*130*290 397*154*474 456*161*513
G.W(kg) 18(2pcs) 20.5(1pcs) 23(1pcs) 25.9(1pcs) 27.4(1pcs) 29.5(1pcs)

Low frequency pure sine wave inverter,Built in 80A MPPT Solar Controller&50A Battery Charger.Based on transformer technology,strong loading capacity.Used for all kinds of home/office equipments,solar power system.

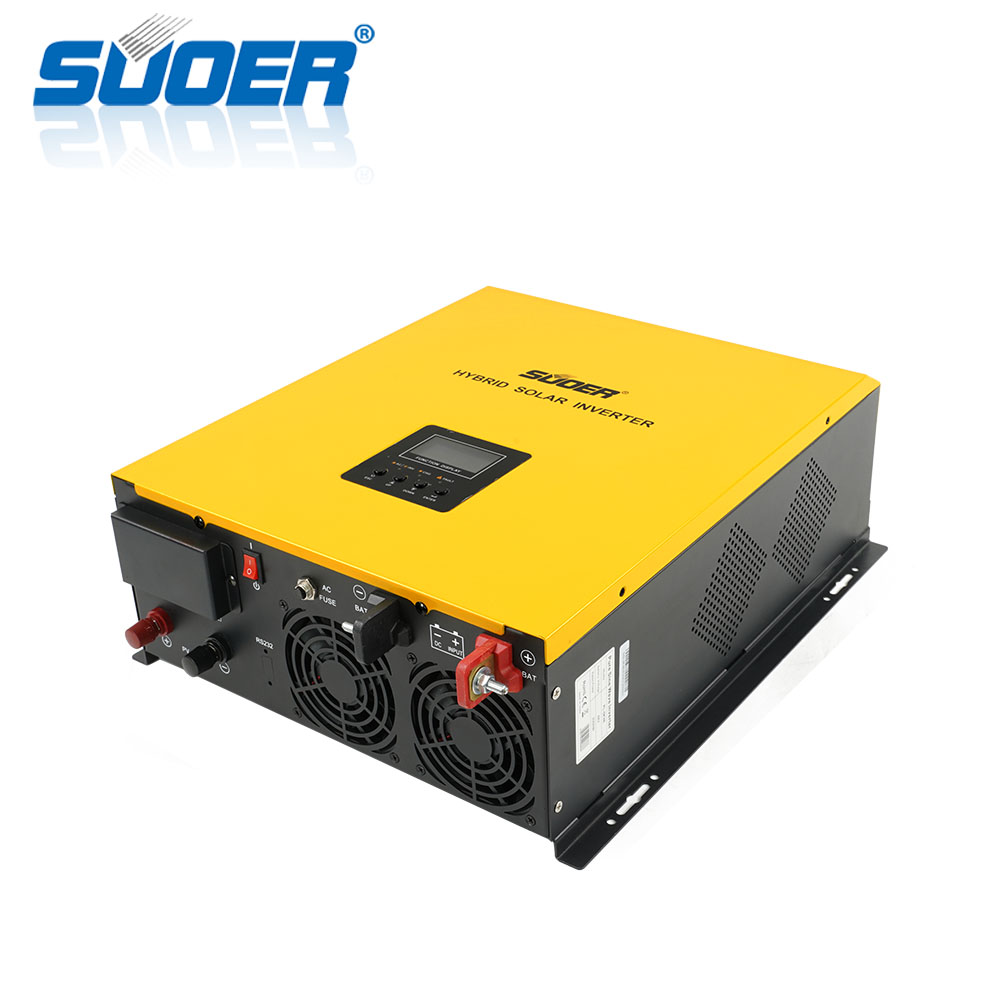

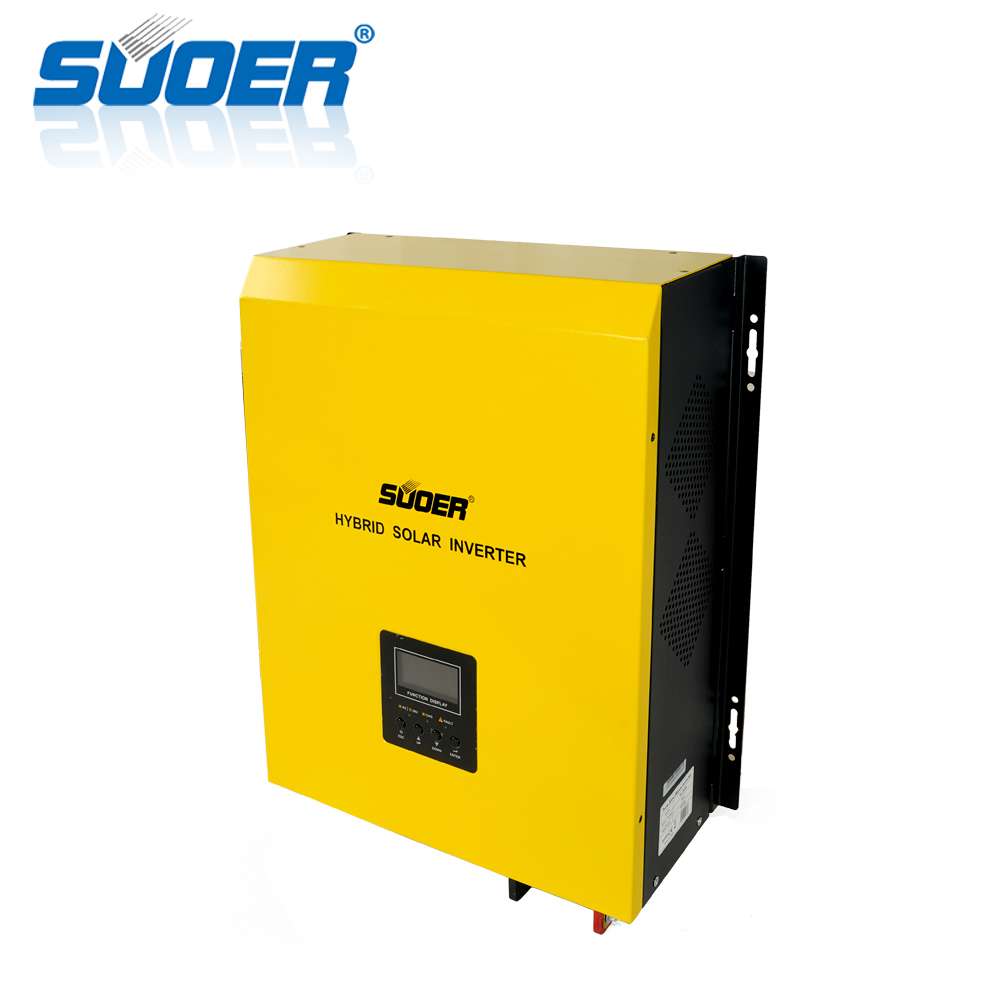

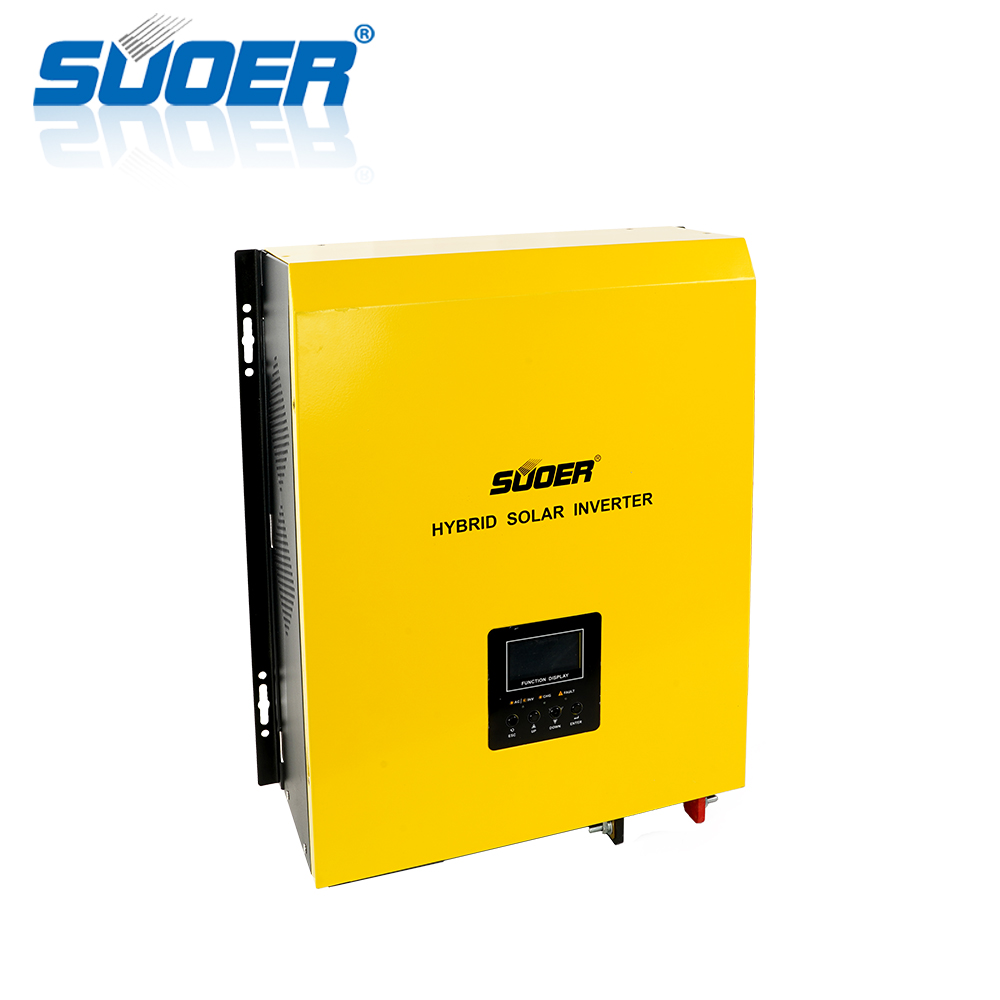

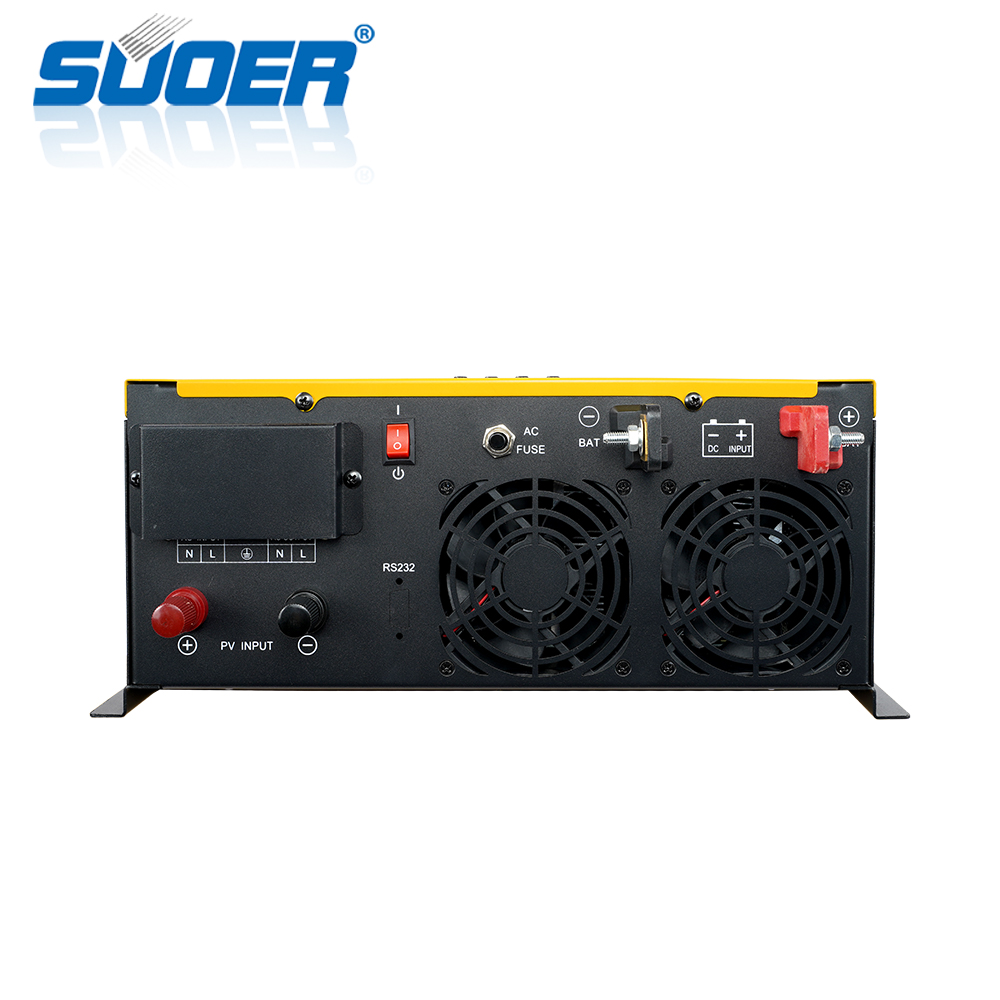

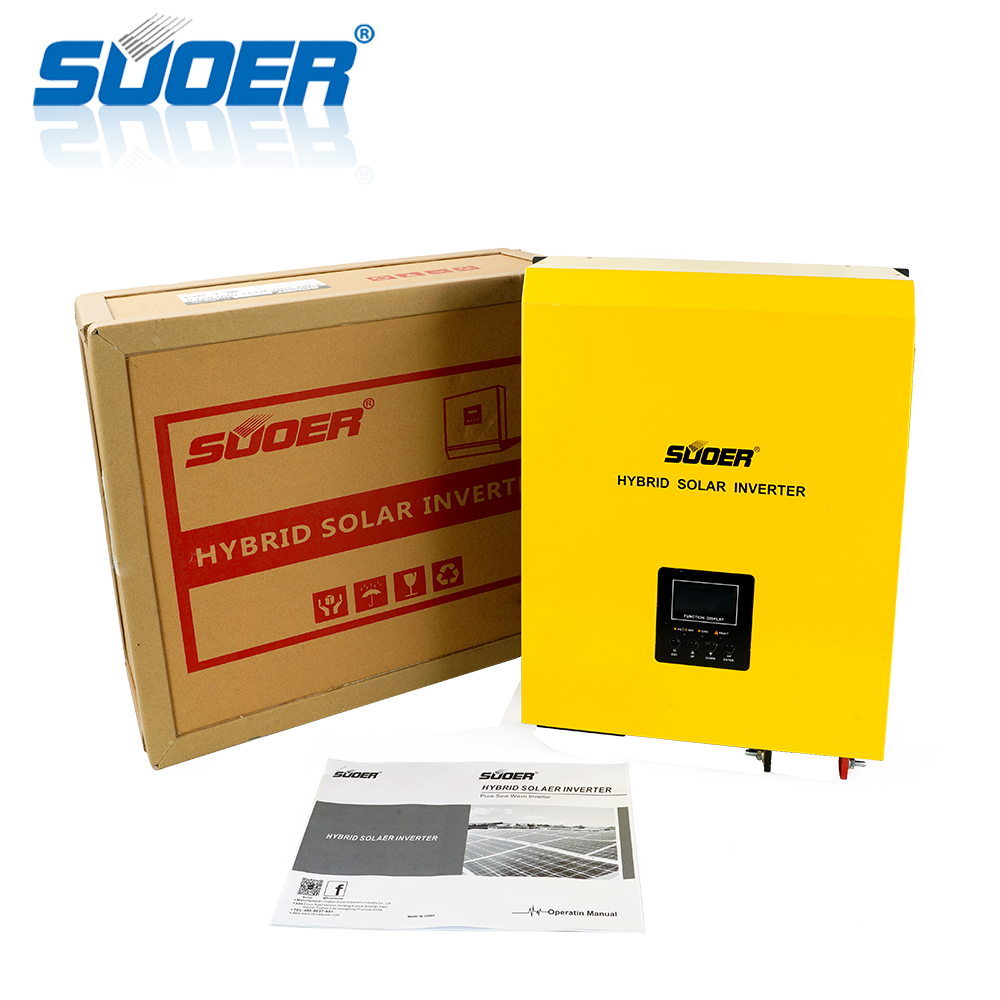

Product Photos
