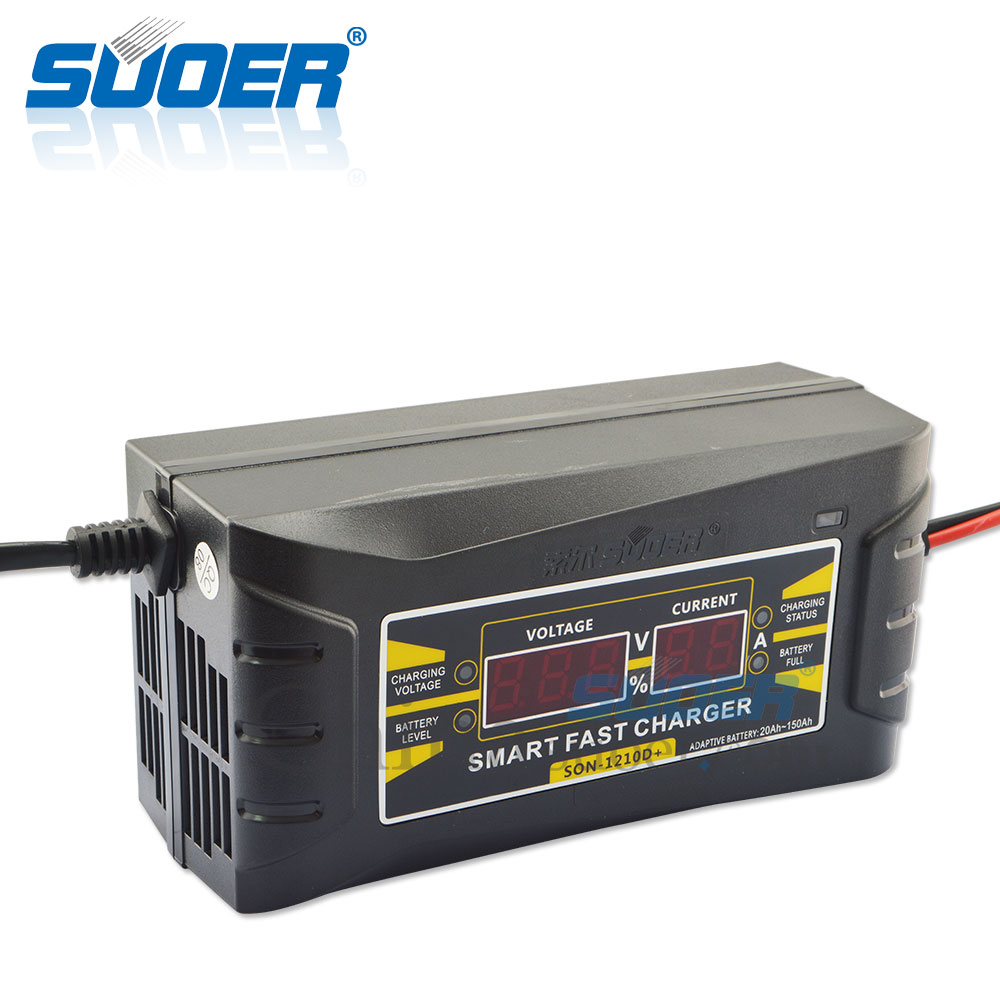

SON-1210D+

12V 10Ah Car Battery Charger

SON-1210D+

AGM/GEL Battery Charger

Features:

Max charging current:10A

Rated input voltage:110-240V

Adopt PWM charging mode,auto stop charging when the battery gets fully charged

LCD screen display:Charging voltage/Battery capacity/Charging current

Aoto battery detection

Applicable for gel battery and lead-acid battery

INQUIRE NOW

SEND ENQUIRY

  X
Submit

Specifications

Product Name

battery charger 10A

Model

SON-1210D+

Input Voltage

110V-240V

Output Voltage

12V

Rated Frequency

47-63HZ

Charger Current

10A

Charger Mode

Three-phase

Full load efficiency

≥ 87%

Working Temperature

-20~+90 ℃

Certification

ISO,CTA,CE

SIZE

168*78*62MM

Weight

0.36kg


Video Tutoria

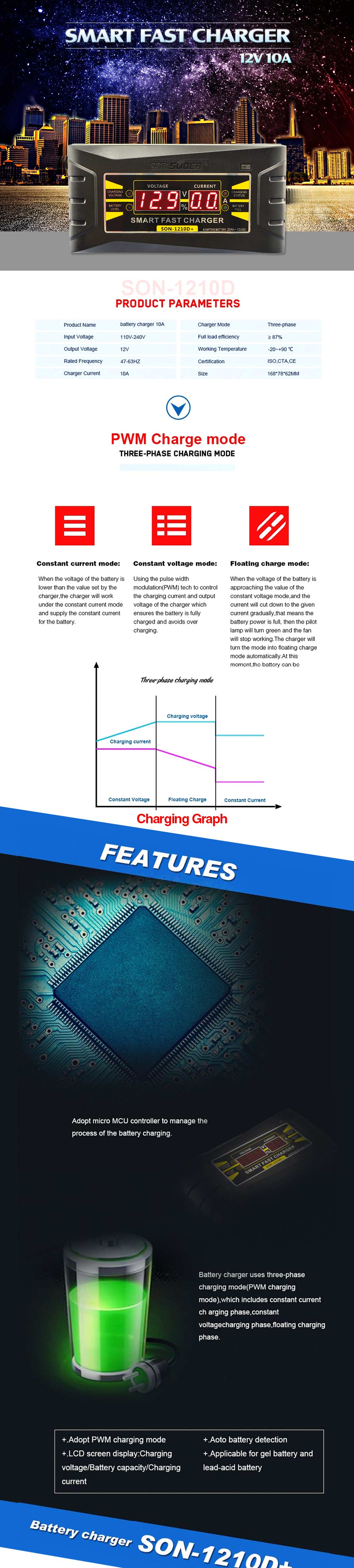

Three-phase charging mode

Constant current mode: When the voltage of the battery is lower than the value set by the charger, the charger will work under the constant current mode and supply the constant current for the battery.

Constant voltage mode: Using the pulse width modulation(PWM) tech to control the charging current and output voltage of the charger which ensures the battery is fully charged and avoids over charging.

Floating charge mode: When the voltage of the battery is approaching the value of the constant voltage mode, and the current will cut down to the given current gradually, that means the battery power is full, then the pilot lamp will turn green and the fan will stop working. The charger will turn the mode into floating charge mode automatically. At this moment,the battery can be stopped charging or keep on floating charge for half an hour.

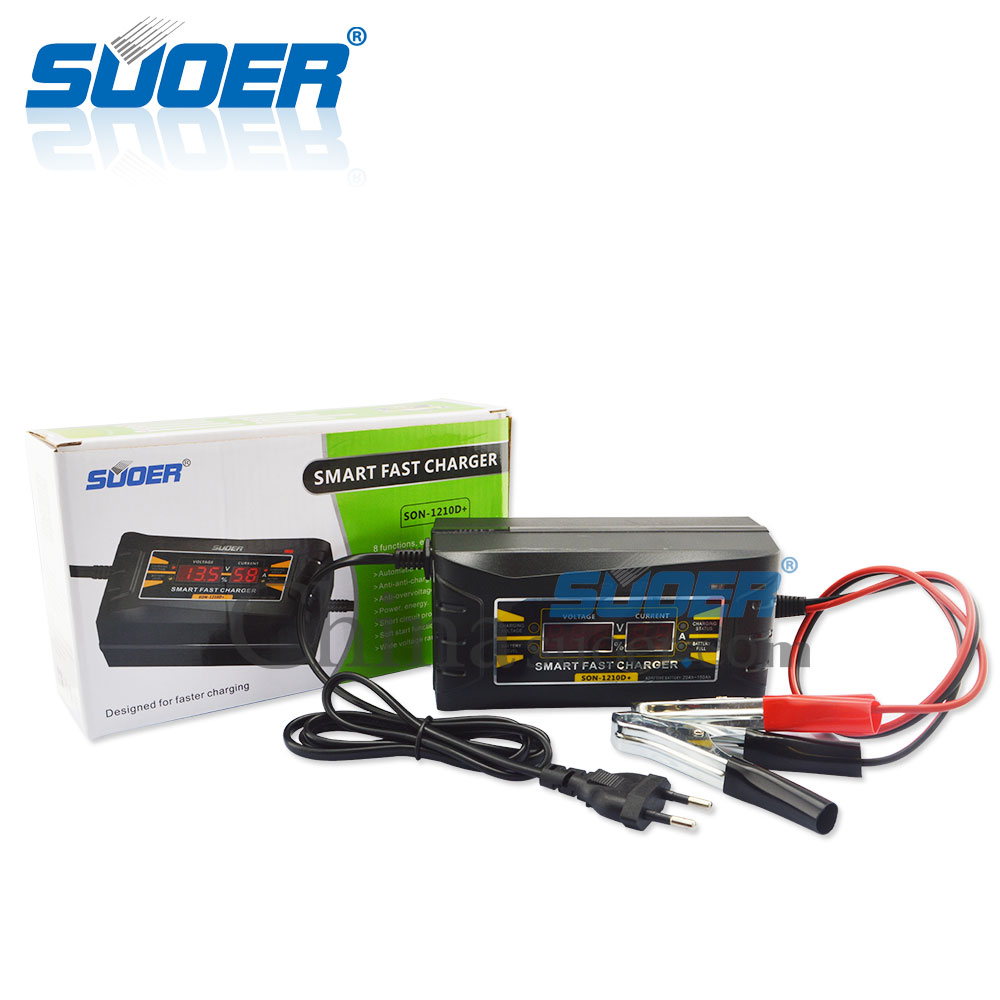

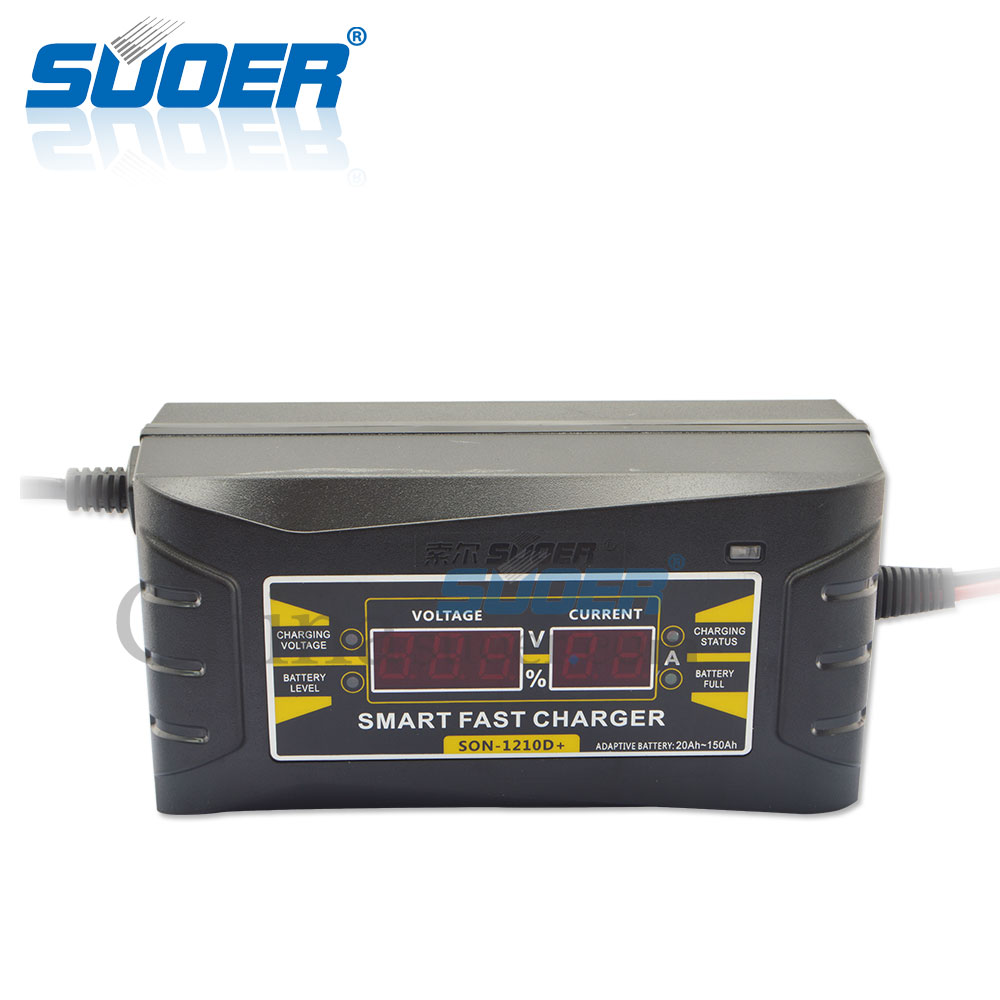

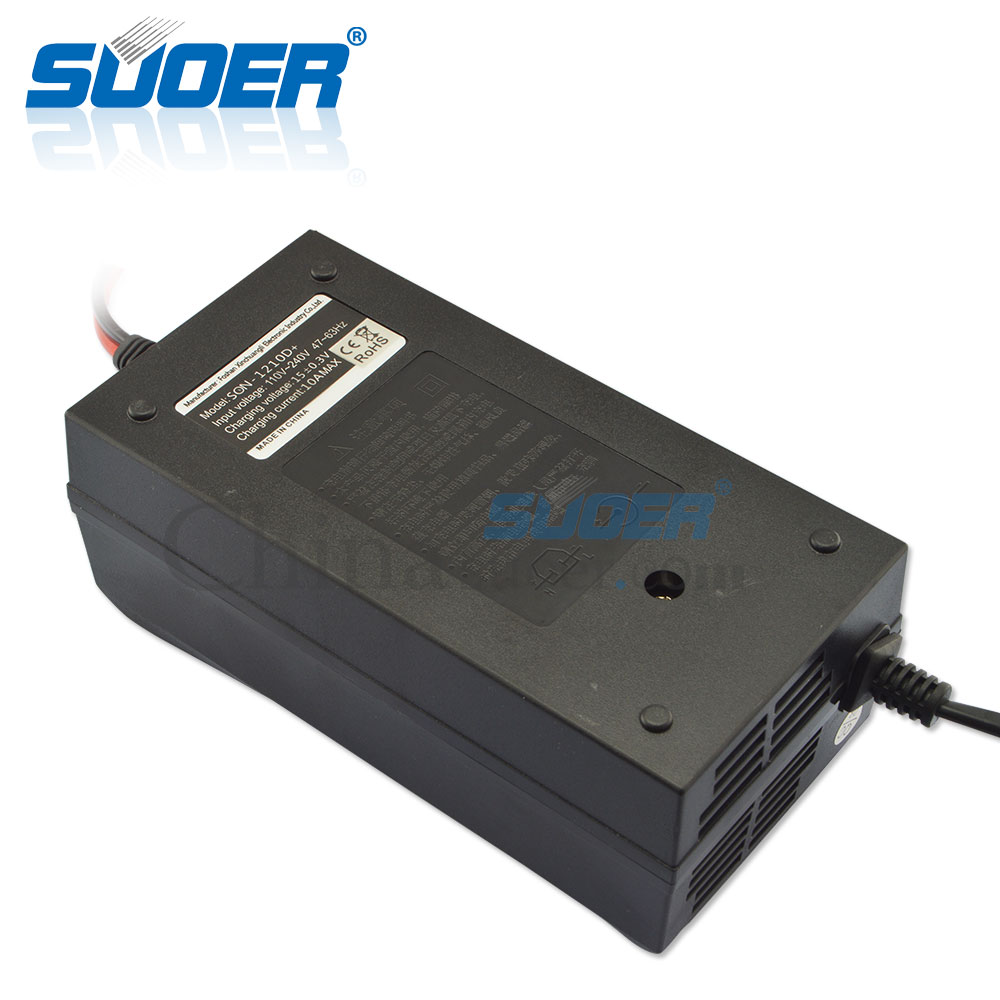

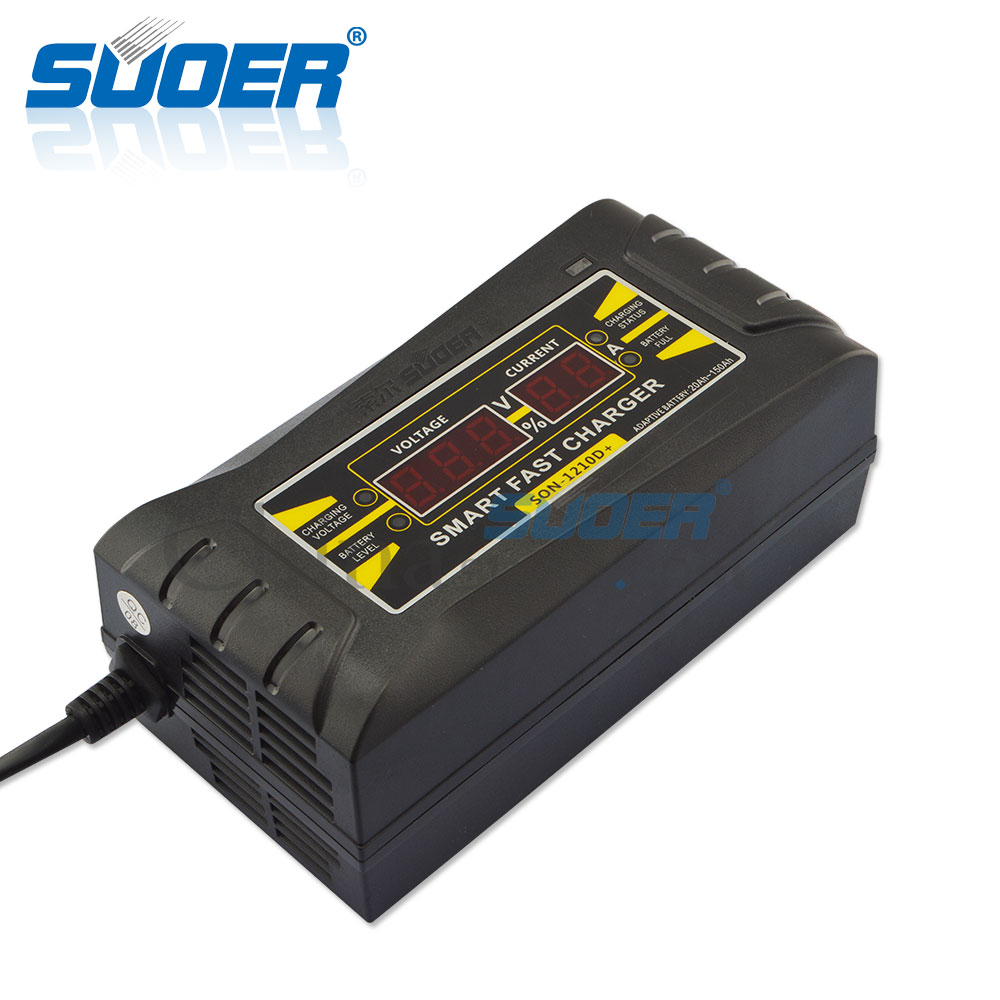

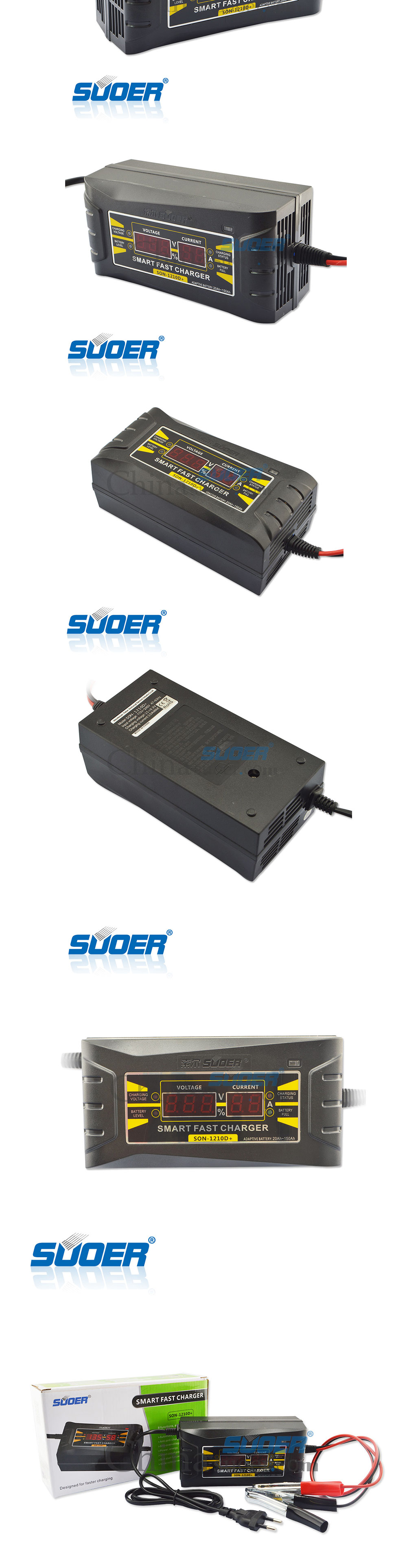

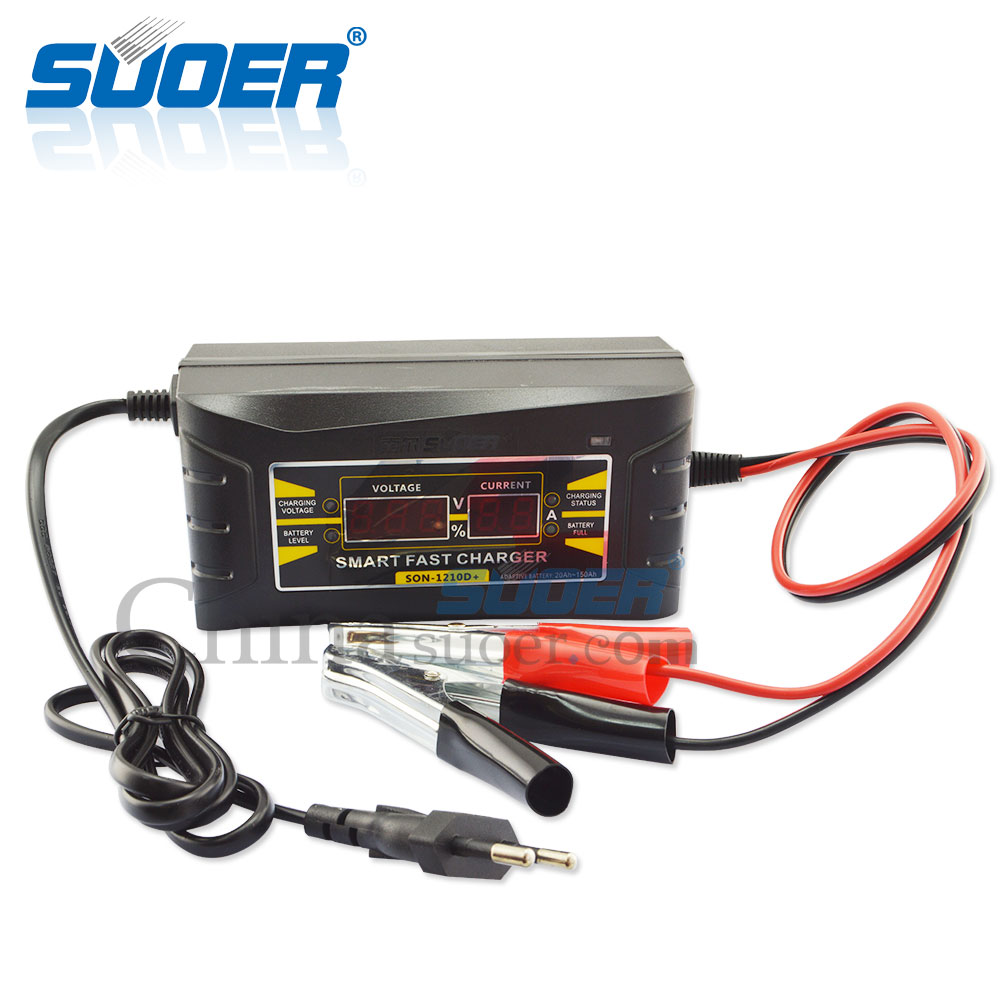

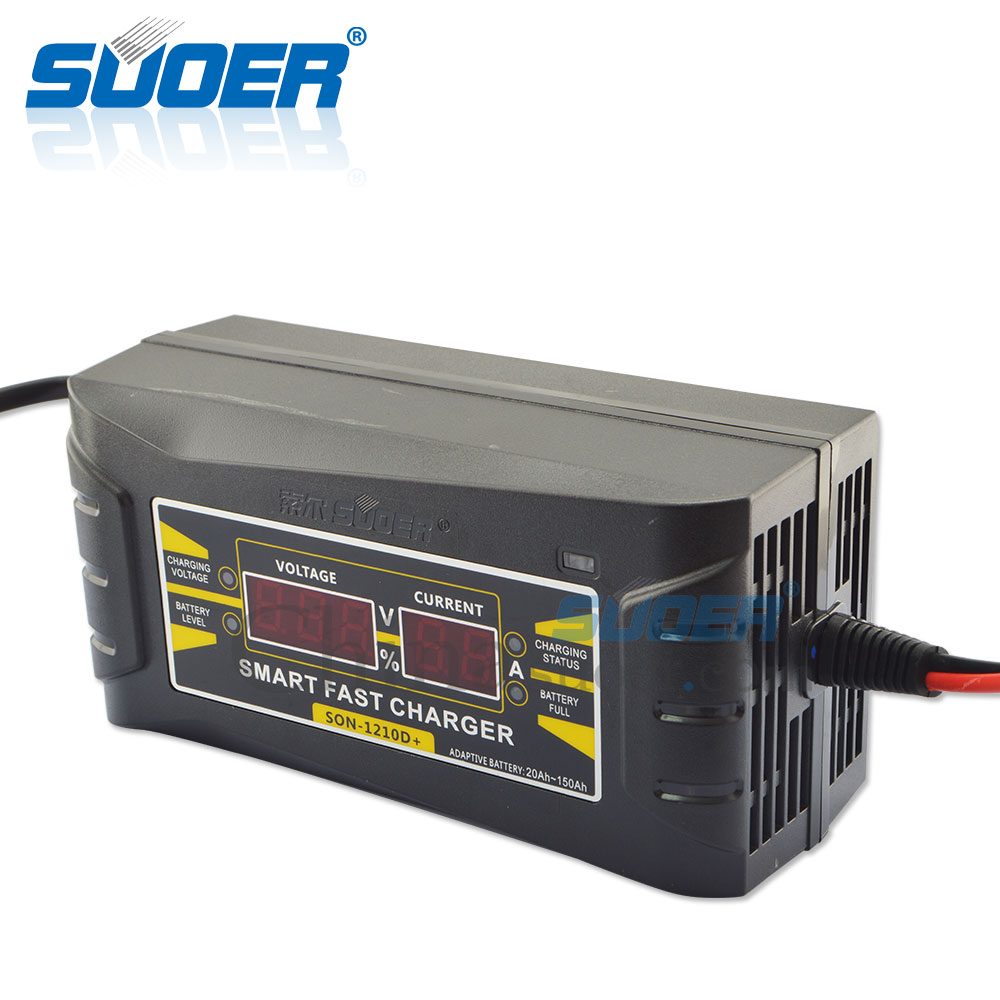

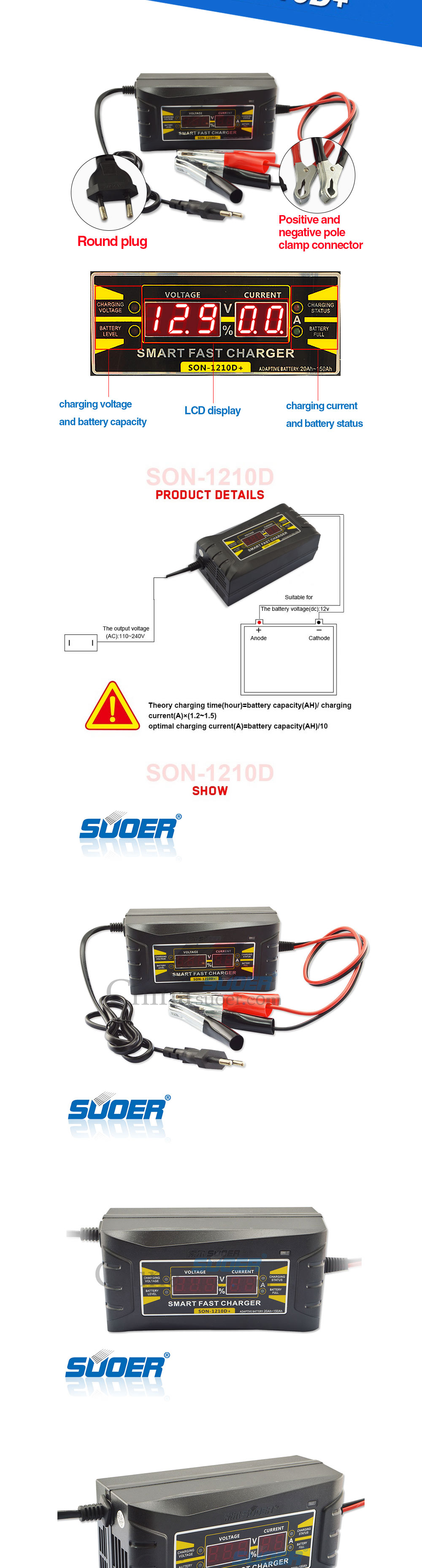

Product Photos
