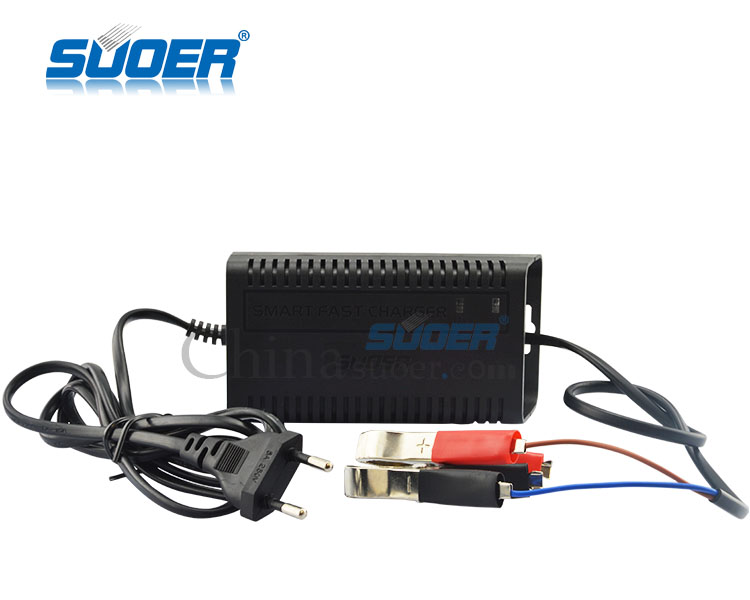

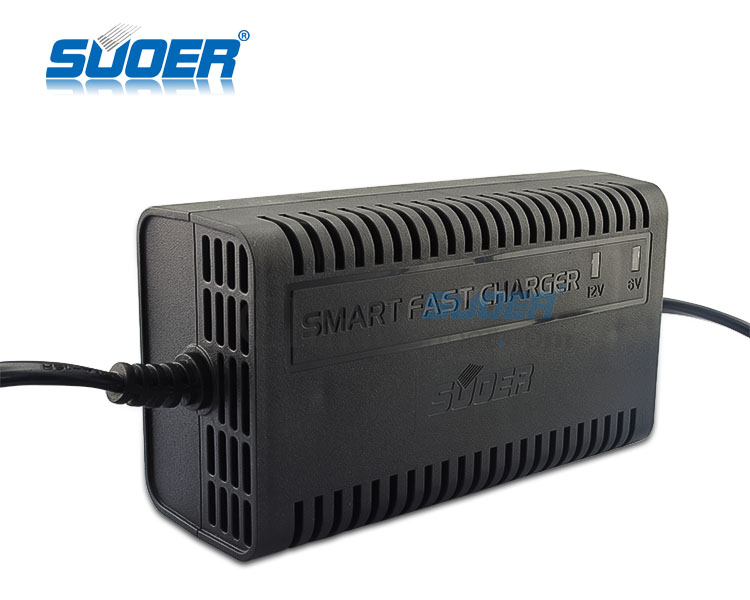

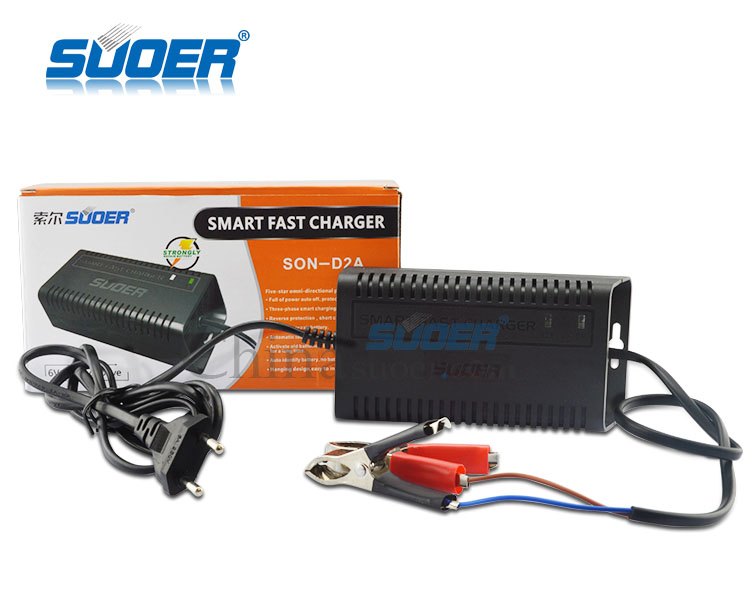

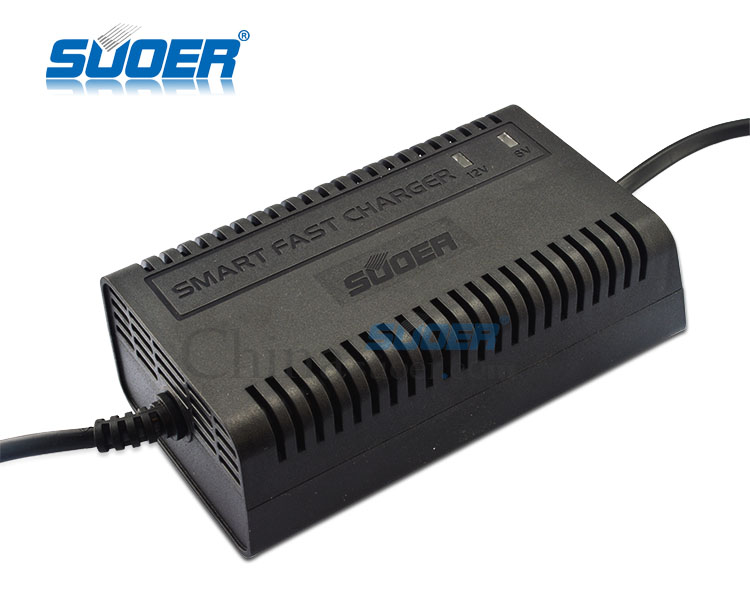

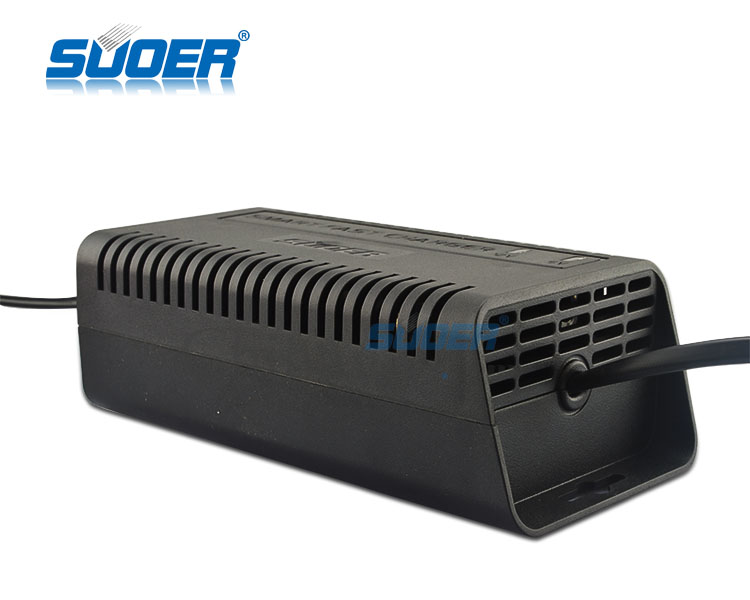

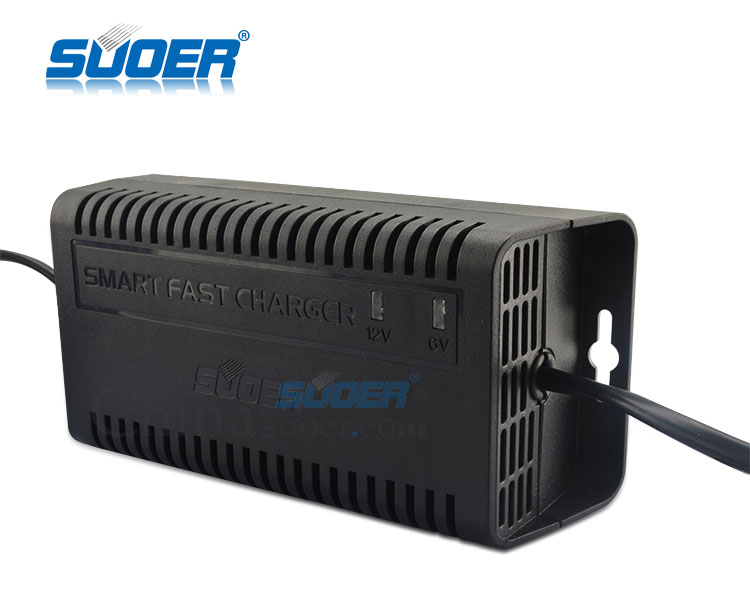

6V 12V Car Battery Charger

SON-D2A

AGM/GEL Battery Charger

Features:

Three phase charging mode

Battery autofix feature

Automatic identification of 6V/12V battery

Reverse connecting protection

OEM & ODM are acceptable

Extremely quiet,Good heat dissipation effect of field transistor

INQUIRE NOW

SEND ENQUIRY

Specifications

Product Name	6V / 12V Storage Battery Charger
Model	SON-D2A
Input Voltage	100V-240V
Output Voltage	6V/12V
Rated Frequency	47-63HZ
Charger Current	1.5A/6V 2A/12V
Charger Mode	Three-phase
Full load efficiency	≥ 87%
Temperature Range	-40~+95℃
Certification	ISO,CTA,CE

Video Illustrate

1. This battery charger uses micro MCU controller to manage the process of the battery charging. The charger will automatically stop charging when it is getting fully charged.
2. This battery charger uses three-phase charging mode(PWM charging mode), which includes constant current charging phase, constant voltage charging phase, floating charging phase.
3. With online battery detection,short circuit protection, over voltage protection, Anti-reverse connecting protection,etc.
4. The smart charging indicator shows charging process directly, which facilitates users to manage the current of the battery.

Specifications

Three-phase charging mode

Constant current mode: When the voltage of the battery is lower than the value set by the charger, the charger will work under the constant current mode and supply the constant current for the battery.

Constant voltage mode: Using the pulse width modulation(PWM) tech to control the charging current and output voltage of the charger which ensures the battery is fully charged and avoids over charging.

Floating charge mode: When the voltage of the battery is approaching the value of the constant voltage mode, and the current will cut down to the given current gradually, that means the battery power is full, then the pilot lamp will turn green and the fan will stop working. The charger will turn the mode into floating charge mode automatically. At this moment, the battery can be stopped charging or keep on floating charge for half an hour.
