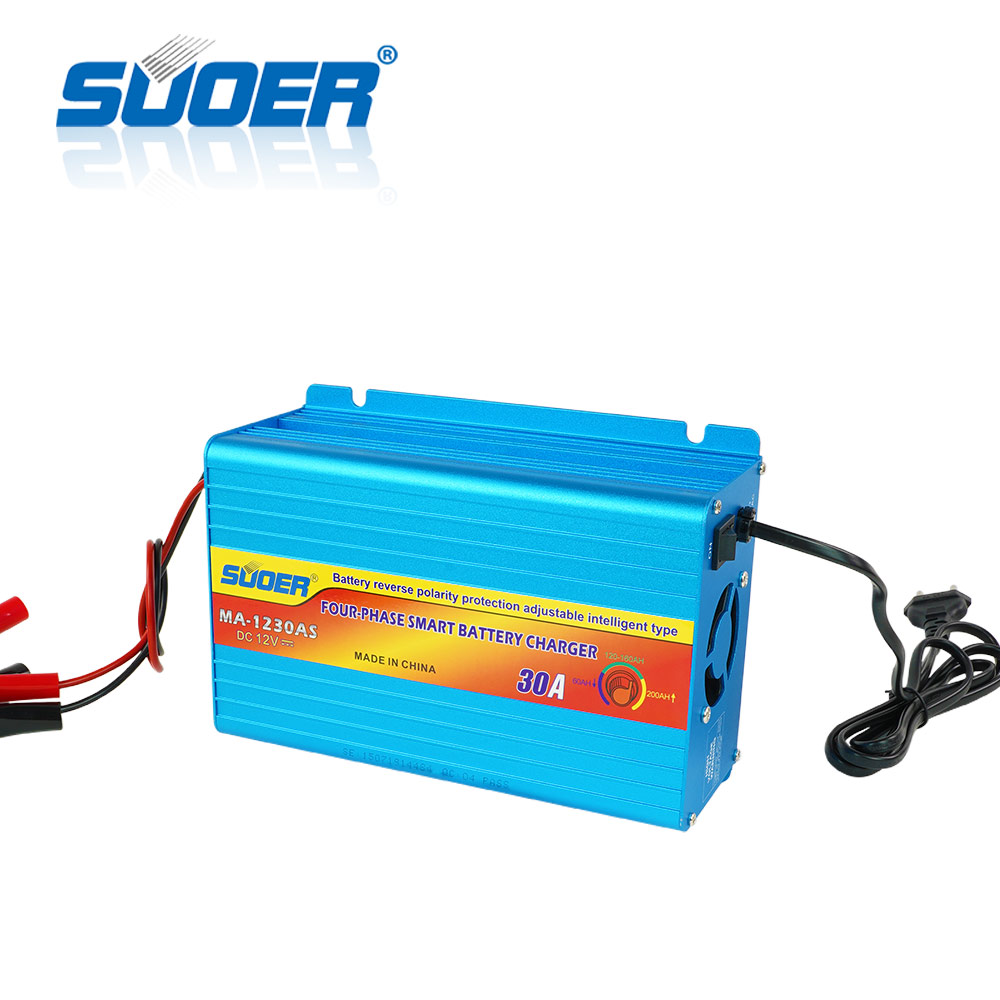

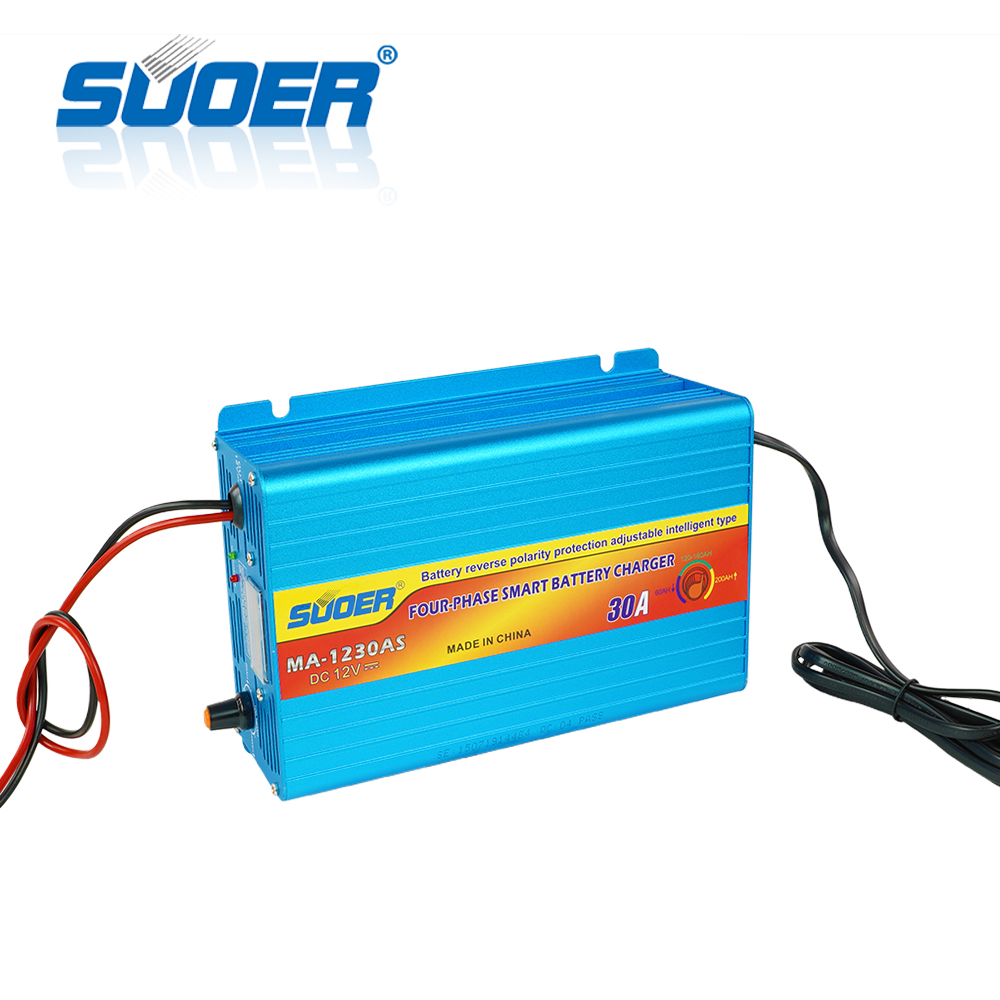

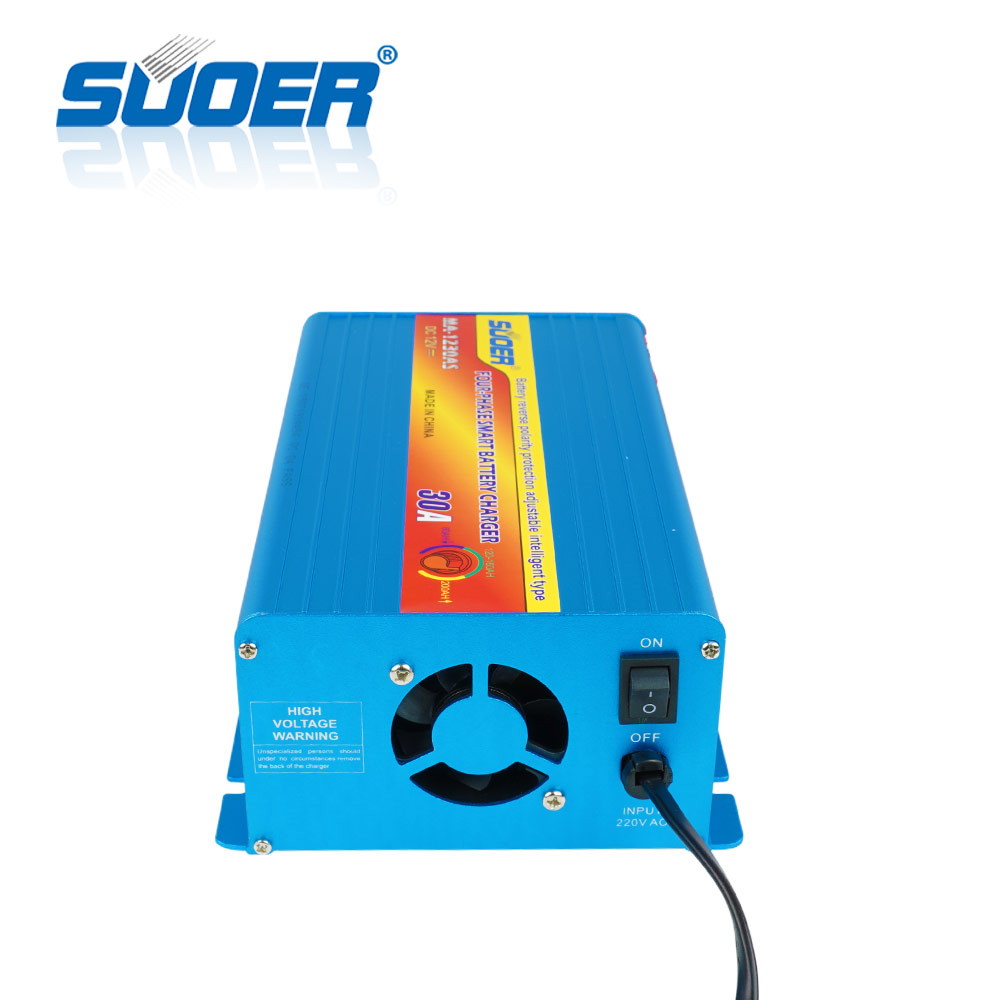

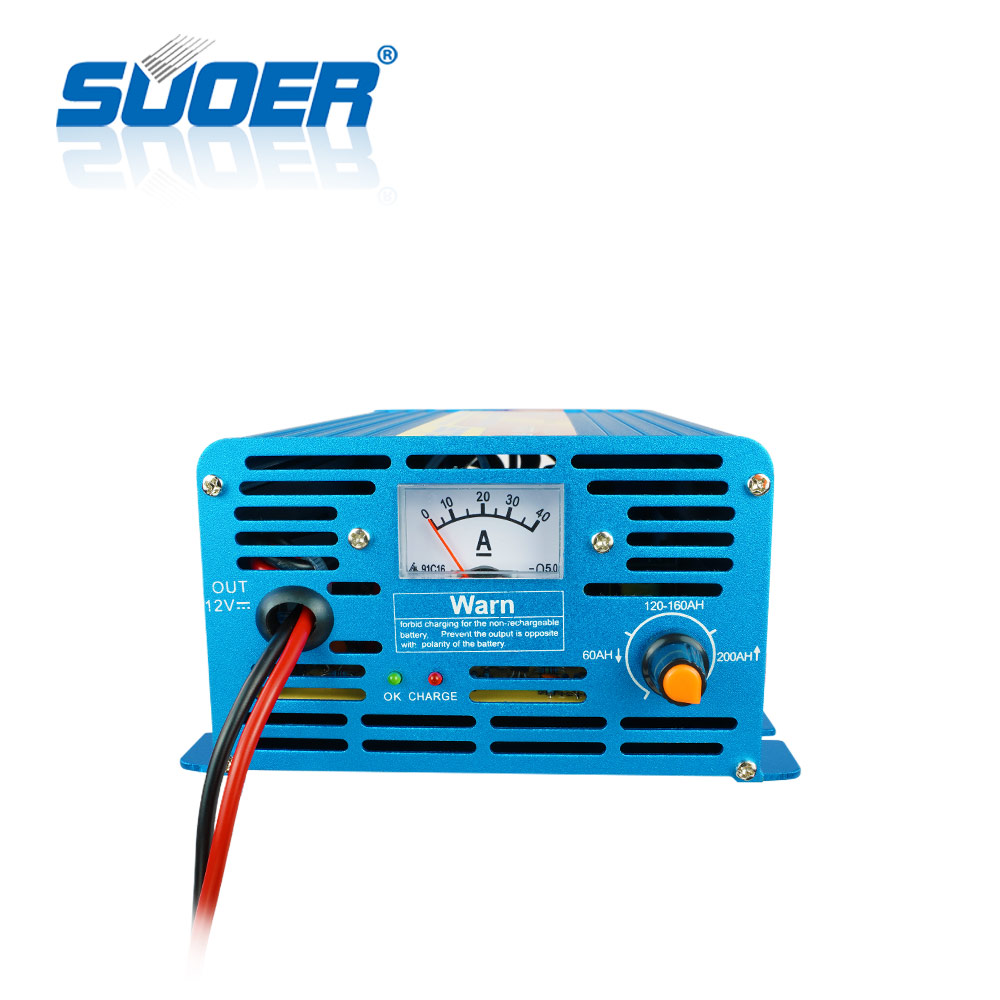

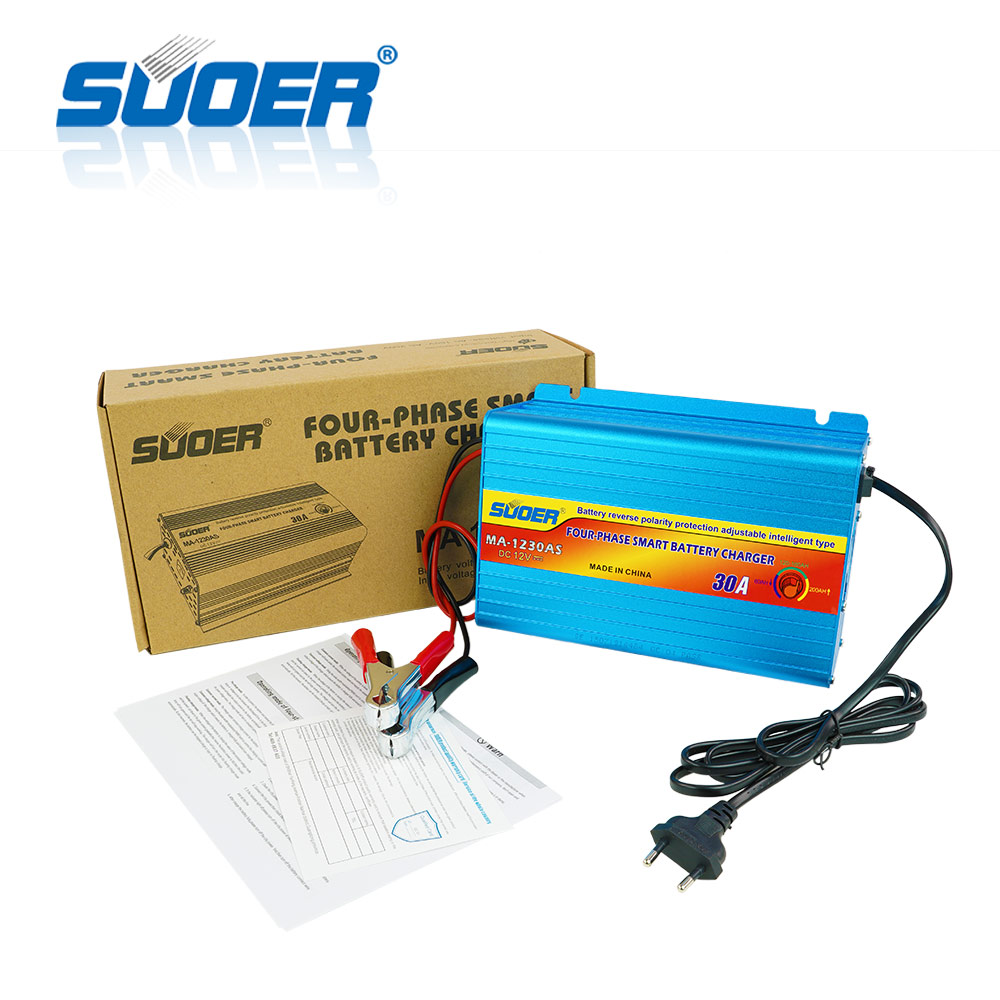

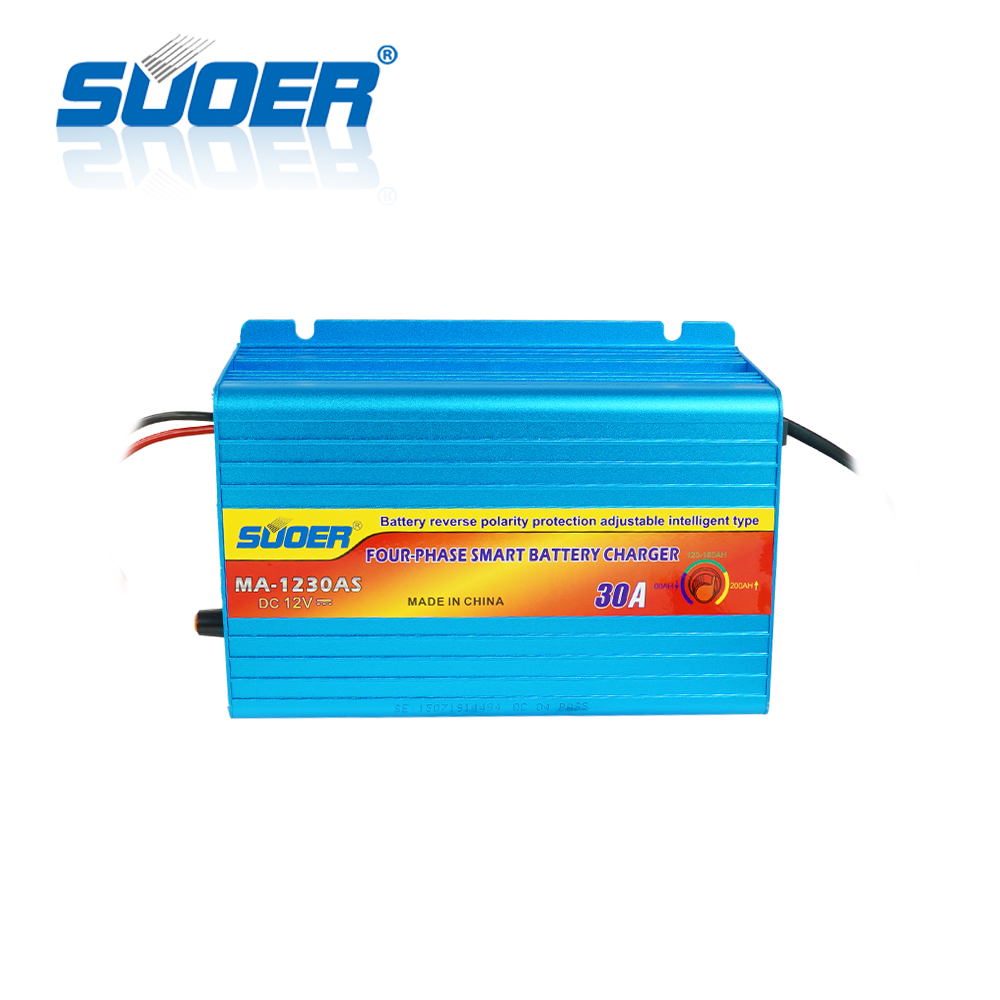

MA-1230AS

AGM/GEL Battery Charger

Features:

1. PWM fast charging mode.

2. LED display

3. MCU control management system

4. Auto battery voltage identification

5. Light control mode, time control mode

6. Reverse connecting protection

7. Hanging style design makes it convenient to insall

8. Water-proof, moiseture-proof, dust-proof

9. Special design for streetlamps

10. Ensure the battery from the constant voltage to the float charge

12. With short-circuited protection, low-voltage protection, over-heated protection.

INQUIRE NOW

SEND ENQUIRY

Specifications

Three-phase charging mode:

Constant current mode: When the voltage of the battery is lower than the value set by the charger,the charger will work under the constant current mode and supply the constant current for the battery.
Constant voltage mode: Using the pulse width modulation(PWM) tech to control the charging current and output voltage of the charger which ensures the battery is fully charged and avoids over charging.
Floating charge mode: When the voltage of the battery is approaching the value of the constant voltage mode,and the current will cut down to the given current gradually,that means the battery power is full, then the pilot lamp will turn green and the fan will stop working.At this moment,the battery can be stopped charging or keep on floating charge for half an hour.
