5kw solar system kit price list solar energy system with lithium battery

Date:2022/11/15 |Author:Max lu|Vistors:133

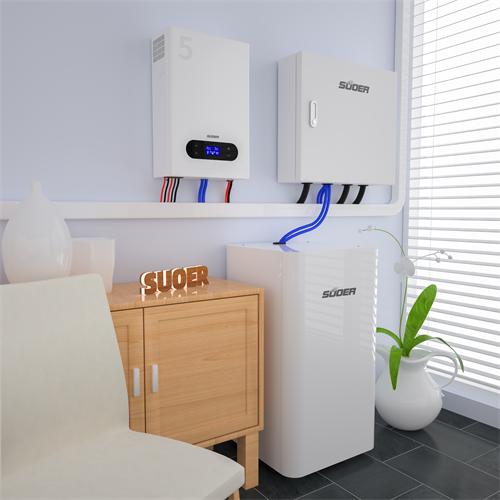

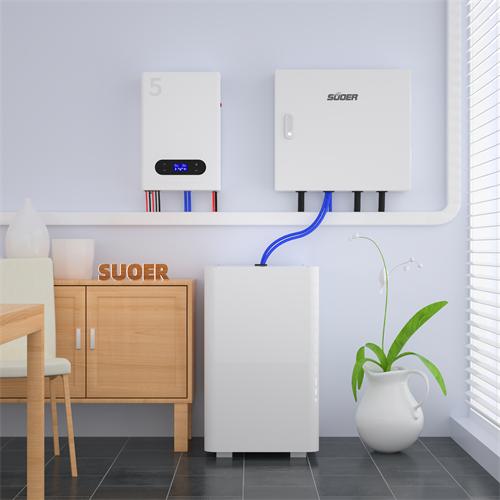

SUOER brand solar energy storage home system is applicable to European households. It provides 5kw, 10kw, 20kw, 30kw and other off grid solar energy systems, which can effectively solve the energy crisis and get rid of the plight of power shortage.

5KW OFF GRID SOLAR SYSTEM CONFIGURATION TABLE
Item	Model	Description	Quantity	Remark
1	SPM120B-445w	mono 445w solar panel Size: 1909113435 Weight: 23.9Kg	12	Optional
2	AC/DC Combiner Box	3 Input 1 Output (Switches,Breaker,SPD) Including circuit breaker and lightning arrester	1	Standard
3	Off Grid Solar Inverter	VMS-5K-48V (5000W+AC60A+MPPT80A) Output Power: 5000W Output Voltage:230VAC 230V 50/60Hz Single phase	1	Standard
4	Battery Cabinet	The battery cabinet can store up to three 51.2v 100AH lithium iron phosphate batteries	1	Standard
5	LiFepo4 Battery	51.2V 100Ah Capacity: 5.12KWH	2	Standard
6	PV Cable	PV 4 mm2	100	Optional
7	MC4 Connector	Rated current: 30A Rated voltage: 1000VDC	12	Standard
