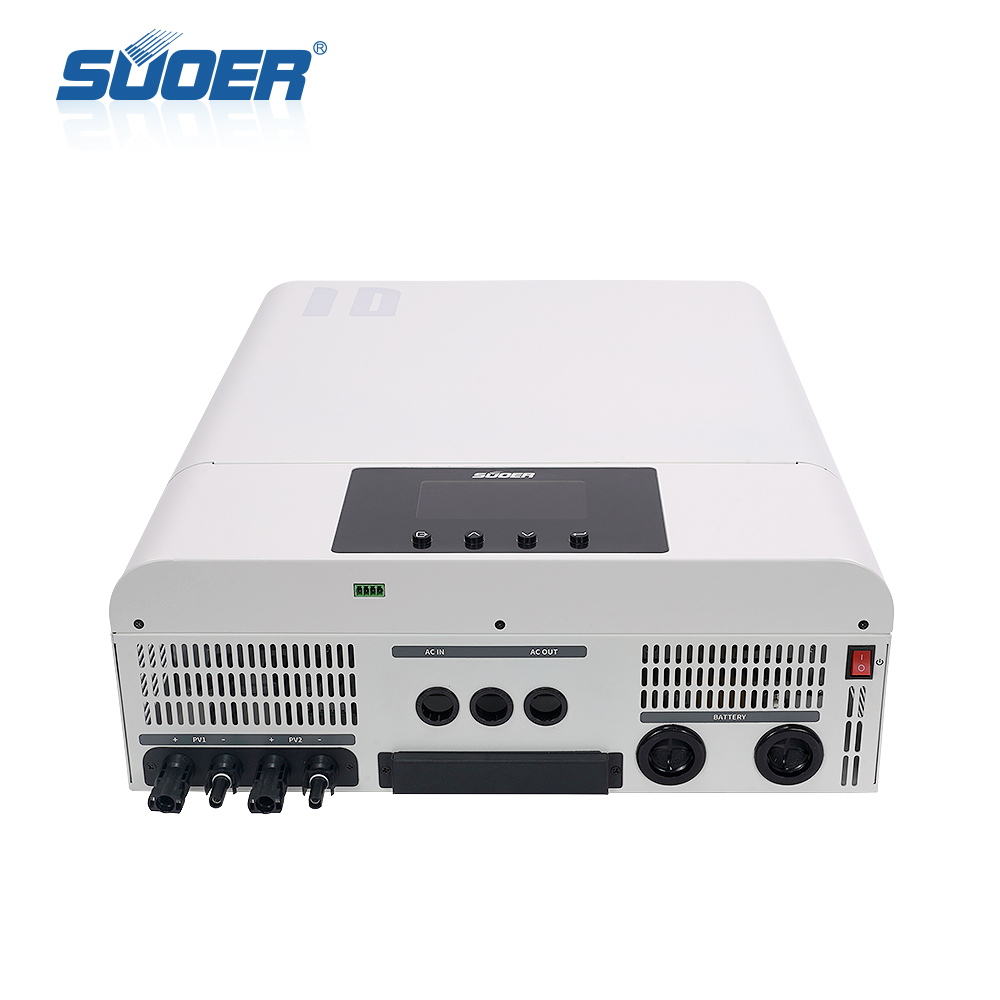

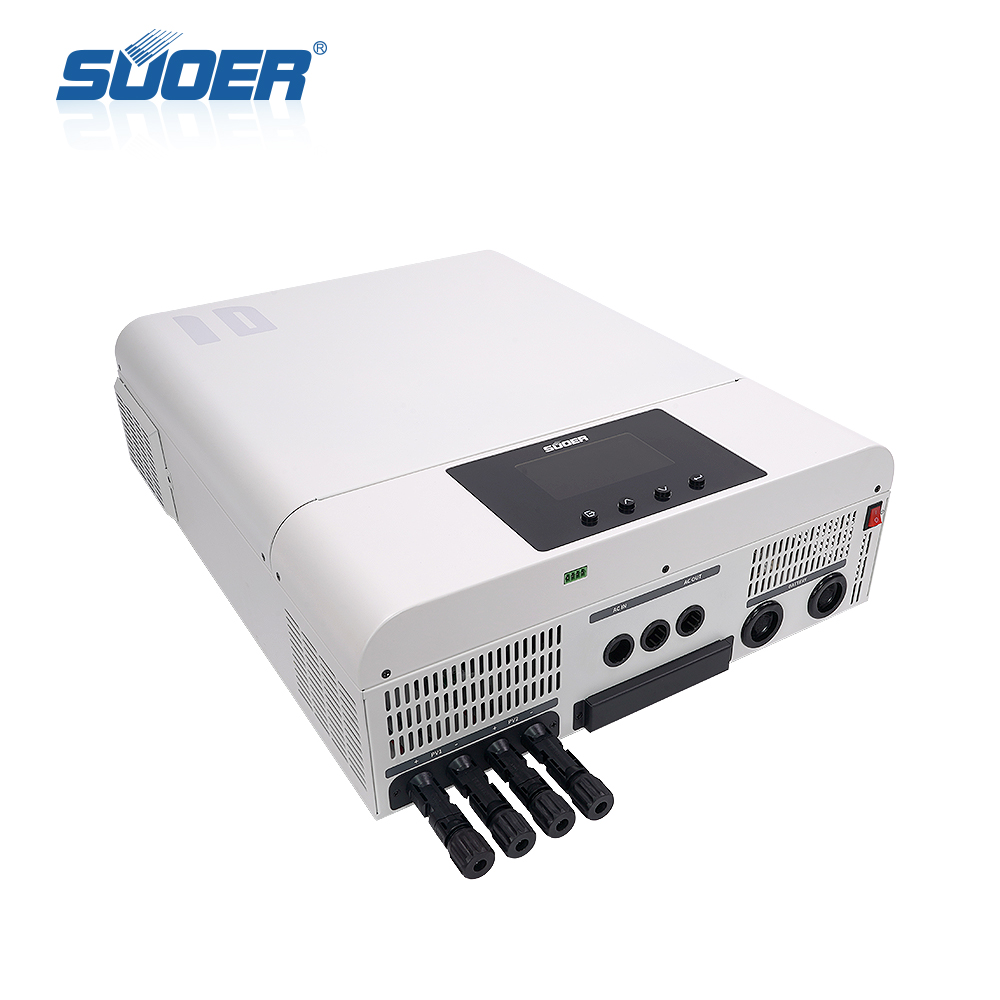

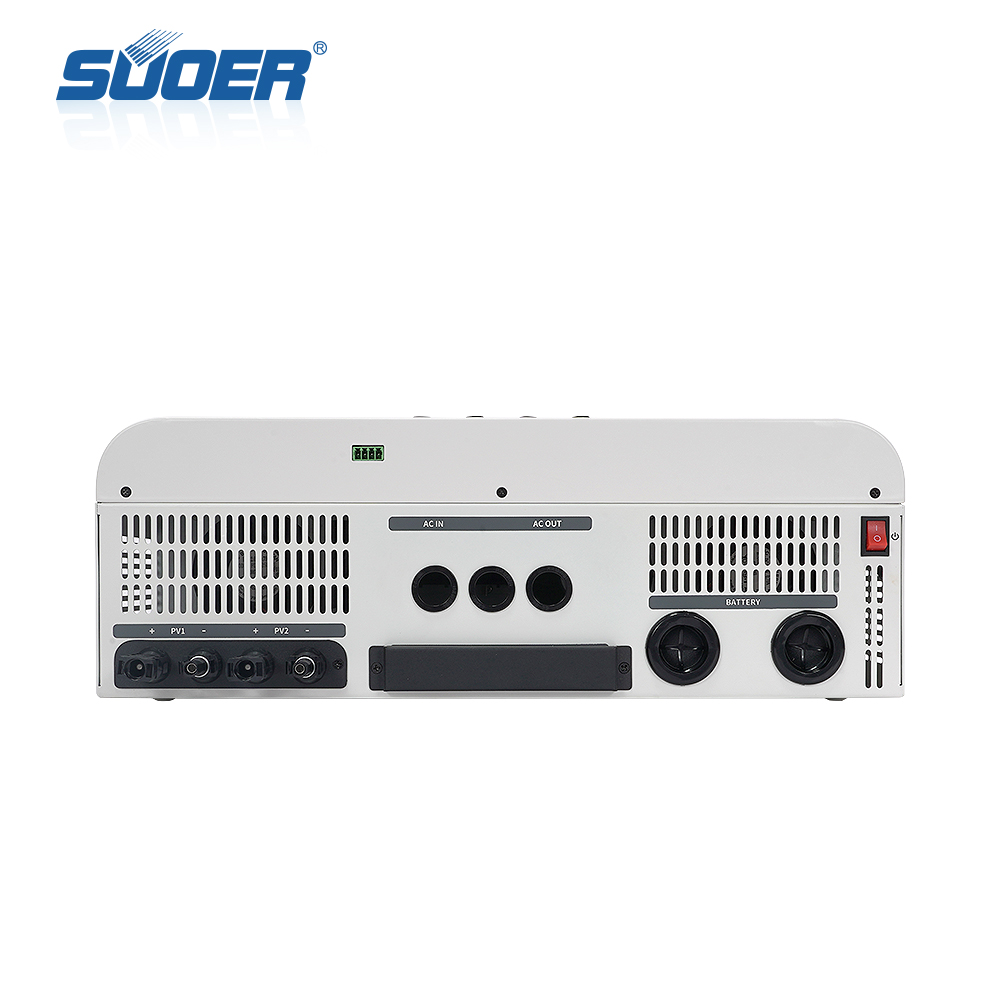

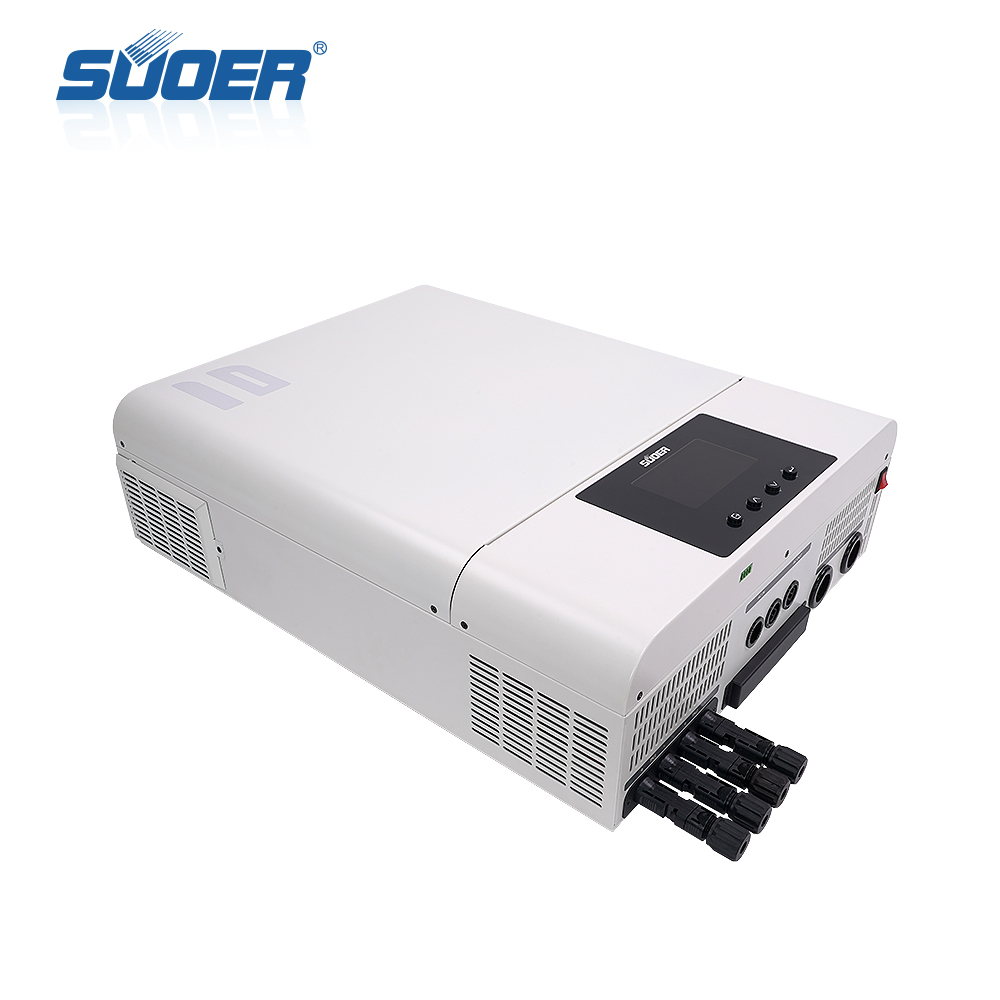

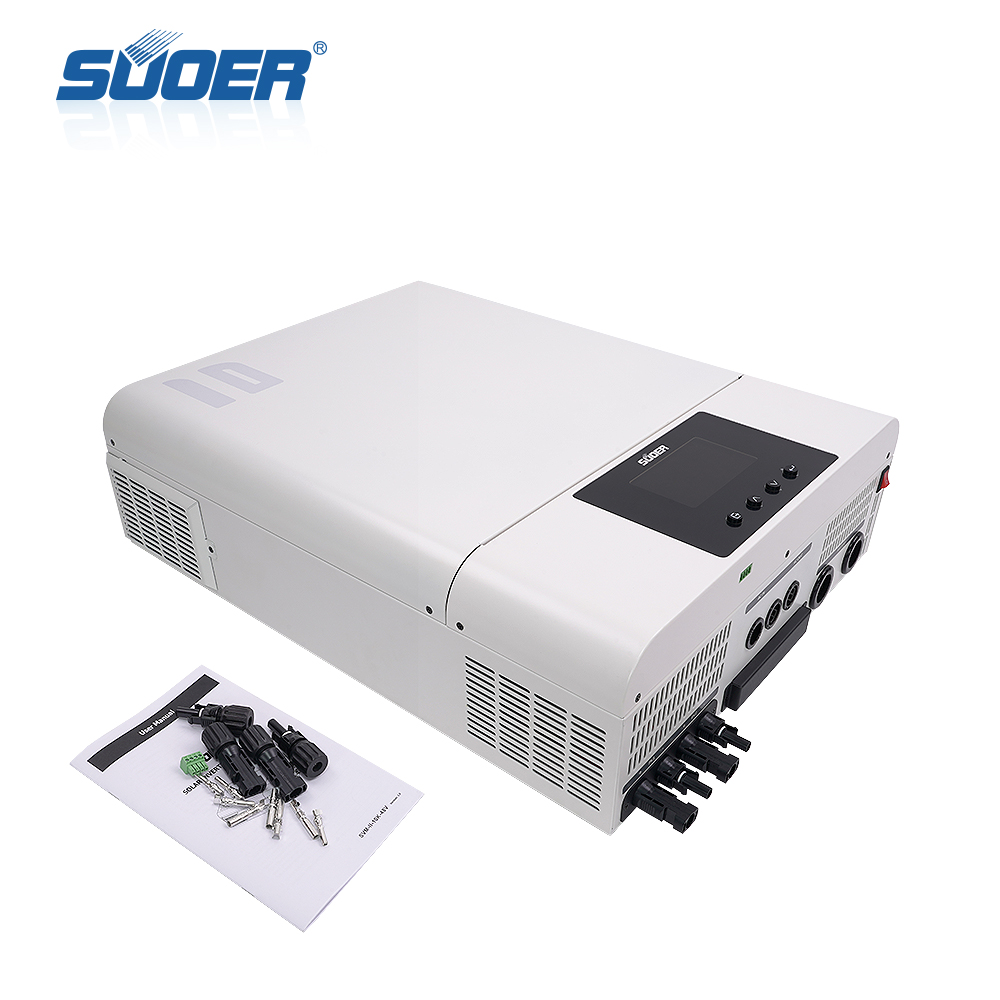

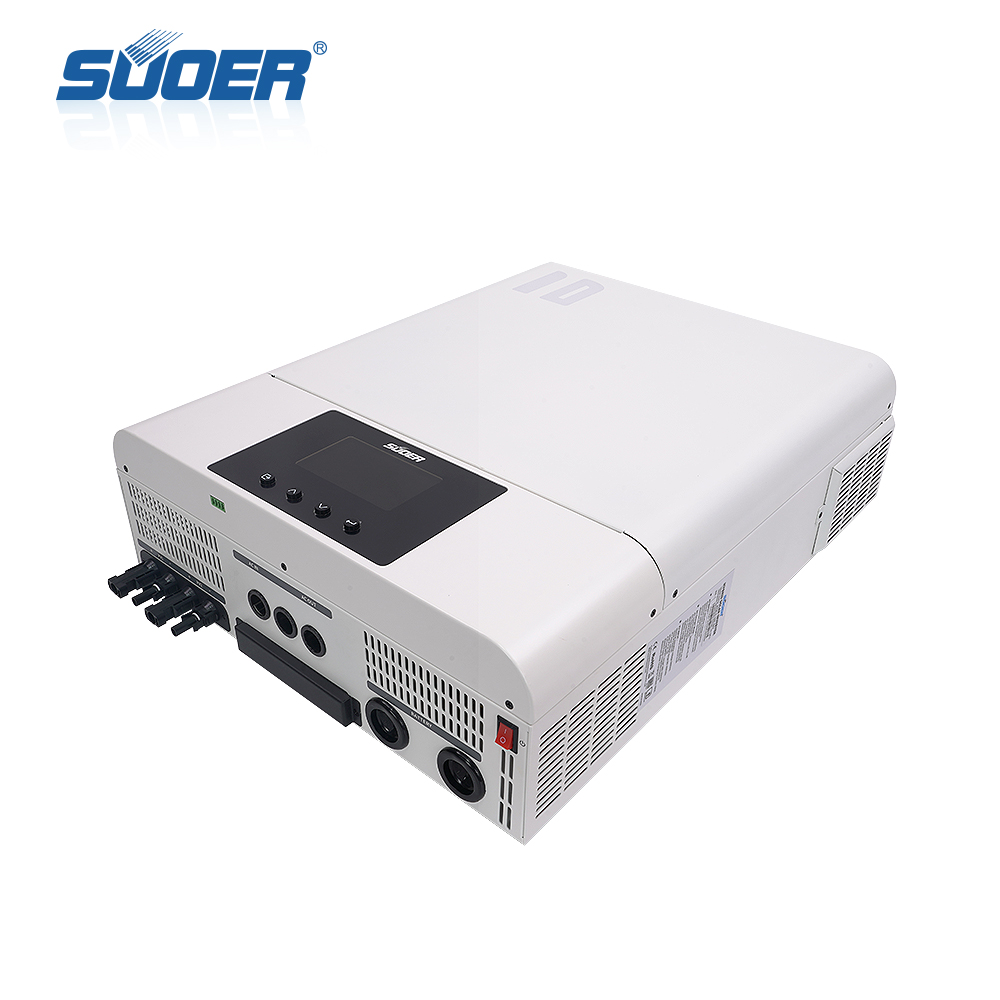

Smart 8kw 10kw 11kw 180A max pv charging hybrid solar inverter with MPPT solar charger controller

SVM-II-10.2KW

Off Grid Hybrid Inverter

Features:

10.2kw Hybrid Solar Inverter

Feature
1.Small size and light weight

2.Bluetooth App connected,power generation at any time to watch
3.Mobile intelligent cloud monitoring, simple operation and maintenance
4.Friendly connection to the power grid, more coordinated response

5.Power generation does not use electricity, and the efficiency is visible

Advantage

1.180A Max pv charging

2.Pure sine wave

3.Works with and without battery

4.Upgrader MPPT

5.Li-ION battery

6.Bulit in nnti dust kit

INQUIRE NOW

SEND ENQUIRY

Specifications

MODEL	SVM-10.2k
Phase	1-phase
Maximum PV Input Power	10200W
Rated Output Power	10200W/10200VA
Maximum Solar Charging Current	180A
GRID-TIE OPERATION
PV Input（DC）
Nominal DC Voltage/Maximun DC Voltage	360VDC/500VDC
Start-up Voltage/Initial Feeding Voltage	90VDC/120VDC
MPPT Voltage Range	90VDC/450VDC
Number of MPPT Trackers/Maximum Input Current	1/27A
GRID OUTPUT(AC)
Nominal Output Voltage	220/230/240VAC
Output Voltage Range	195-253VAC
Nominal Output Current	44.3A
Power Factor	>0.99
Feed-in Grid Frequency Range	49-51±1hz
EFFICIENCY
Maximum Conversion Efficiency(DC/AC)	98%
TWO LOAD OUTPUT POWER
Full Load	10200W
Maximum Main Load	10200W
Maximum Second Load(battery mode)	3400W
Main Load Cut Off Voltage	44VDC
Main Load Return Voltage	48VDC
OFF-GRID OPERATION
AC INPUT
AC Start-up Voltage/Auto Restart Voltage	120-140VAC/180VAC
Acceptable Input Voltage Range	90-280VAC or 170-280VAC
Maximum AC Input Current	50A
Nominal operating frequency	50/60Hz
Surge power	20400W
PV INPUT（DC）
Maximum DC Voltage	500VDC
MPPT Voltage Range	90VDC~450VDC
Number of MPPT Trackers/Maximum Iput Current	1/27A
BATTERY MODE OUTPUT(AC)
Nominal Output Voltage	48VDC
Output Waveform	Pure sine wave
Efficiency(DC to AC)	94%
BATTERY & CHARGER
Nominal DC Voltage	48VDC
Maximum Solar Charging Current	180A
Maximum AC Charging Current	160A
GENERAL
PHYSICAL
Dimension,DxWXH(mm)	420310110
Cartoon Dimension,DXWXH(mm)	588463205
Net Weight(kgs)	14.5
Gross Weight(kgs)	16
INTERFACE
Communication Port	RS232/WIFI/RemoveLCD/GPRS
ENVIRONMENT
OperatingTemperature	-10~50℃
