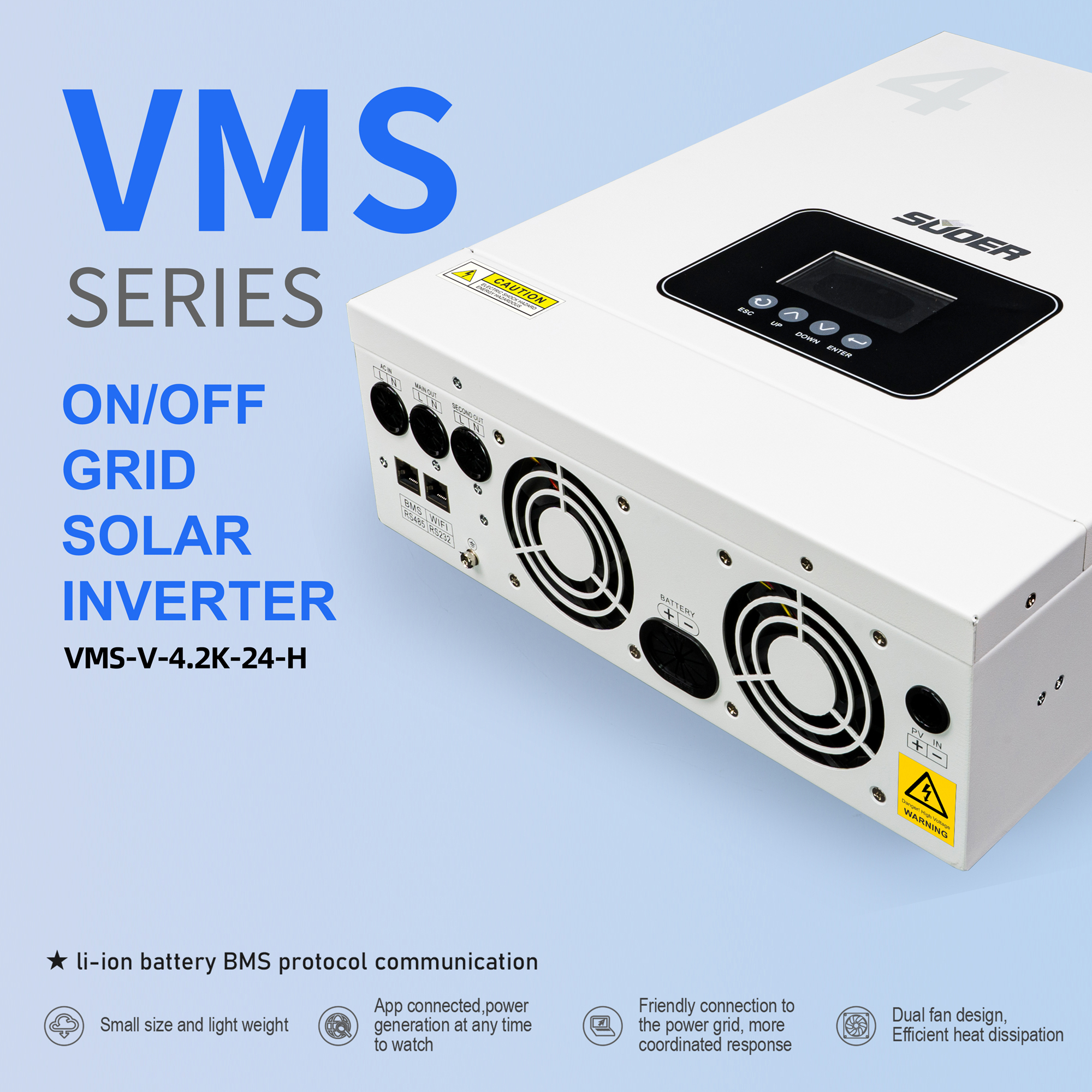

2025 New 24 Volt 4.2kw Single Output Mppt Hybrid Solar Power Inverter Ac Invertor with MPPT Solar Charge Control

VMS-V-4.2K-24-H

Hybrid Solar Inverter

Features:

Product Features

1.Pure sine wave inverter
2.Cold start function
3.Selectable input voltage range for home appliances and personal computers
4.Selectable charging current based on applications
5.Configurable AC/Solar input priority via LCD setting
6.Compatible to mains voltage or generator power
7.Auto restart while AC is recovering
8.Overload and short circuit protection
9.Smart battery charger design for optimized battery performance
10.Built-in MPPT solar charger controller

INQUIRE NOW

SEND ENQUIRY

Specifications

SUOER 4.2KW Hybrid Solar Inverter
INVERTER CHARGER
MODEL NAME:	4.2KW Hybrid Solar Inverter
MODEL NUMBER:	VMS-V-4.2K-24-H
Color:	White and Black
Operating Temperature:	Range-10-50°C
PV INPUT:
Nominal operating voltage:	240Vdc
Vmax PV:	500Vdc
PV input voltage range:	90-450Vdc
lmax PV:	27A
Full load MPPT range:	240~450Vdc
Rated Power:	6500W
Maximum Solar Charging Current:	120A
GRIDIAC OUTPUT:
Nominal Output Voltage:	220/230/240Vac
Feed-in Grid Voltage Range:	195~253Vac
Feed-in Grid Frequency Range:	49~51+1HZ
Nominal Output Current:	18.2A
Power Factor Range:	>0.99
Maximum Conversion Efficiency(DClAC):	97%
Nominal Operating Frequency:	50/60Hz
TWO LOAD OUTPUT POWER:
Full Load:	4200w
Maximum Main Load:	4200w
Maximum Second Load:	1400W
Main Load Cut Off Voltage:	22VDC
Main Load Return Voltage:	26VDC
AC INPUT:
Nominal operating voltage:	230Vac
Maximum input current:	30A
Nominal operating frequency:	50/60Hz
Surge power:	8400VA
Maximum Ac charging Current:	100A
BATTERY:
Battery voltage range:	20~33VDC
Maximum battery current:	200A
