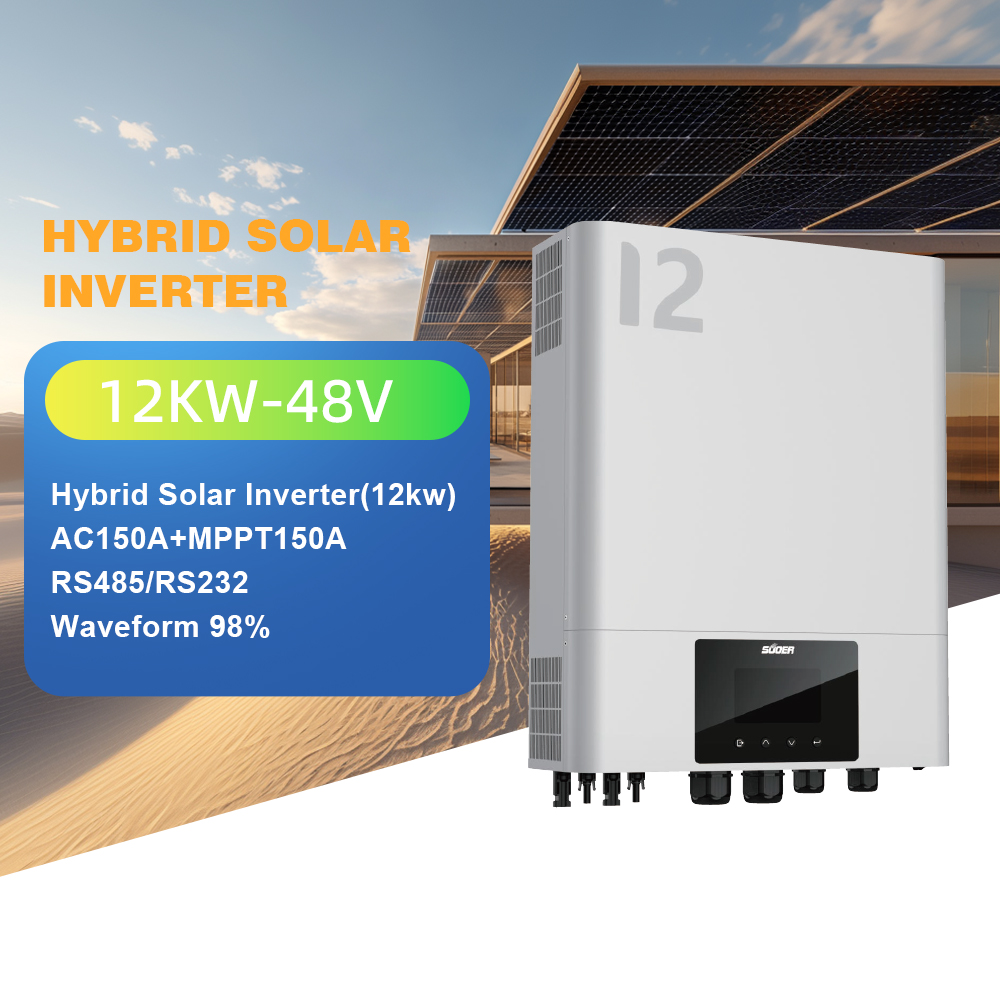

SUOER manufacturer mppt solar hybrid inverter 12kw 48v off grid hybrid solar inverter

VMS-IV-12K

Hybrid Solar Inverter

Features:

Product Features

1.Pure sine wave inverter
2.Cold start function
3.Selectable input voltage range for home appliances and personal computers
4.Selectable charging current based on applications
5.Configurable AC/Solar input priority via LCD setting
6.Compatible to mains voltage or generator power
7.Auto restart while AC is recovering
8.Overload and short circuit protection
9.Smart battery charger design for optimized battery performance
10.Built-in MPPT solar charger controller

INQUIRE NOW

SEND ENQUIRY

Specifications

Model	VMS-V-12K-48-H/HG
RATED POWER	12000W
INPUT
Voltage	230 VAC
Selectable Voltage Range	170-280 VAC (For Personal Computers) ;
Selectable Voltage Range	90-280 VAC (For Home Appliances)
Frequency Range	50 Hz/60 Hz (Auto sensing)
OUTPUT
AC Voltage Regulation (Batt. Mode)	230 VAC ± 5%
Surge Power	22000W
Efficiency (Peak) PV to INT	98%
Efficiency(Peak)Battery to INT	98%
Transfer Time	15 ms (For Personal Computers) ;
Transfer Time	20 ms (For Home Appliances)
Waveform	Pure sine wave
BATTERY
Battery Voltage	48 VDC
Floating Charge Voltage	54 VDC
Overcharge Protection	63VDC
SOLAR CHARGER & AC CHARGER
Max. PV Array Open Circuit Voltage	500VDC
Max. PV Array Power	12000W (6000W*2)
MPP Range @operating Voltage	90~450VDC
Max. Solar Charge Current	150A
Max. AC Charge Current	150A
Max. Charge Current	150 A
PHYSICAL
Dimension, D x W x H (mm)	147 x432 x 553mm
Net Weight (kgs)	18.4
Communication Interface	USB/RS232/RS485/Wifi/Dry-contact
ENVIRONMENT
Humidity	5% to 95% Relative Humidity (Non-condensing)
Operating Temperature	-10°C to 50°C
Storage Temperature	-15°C to 60°C
