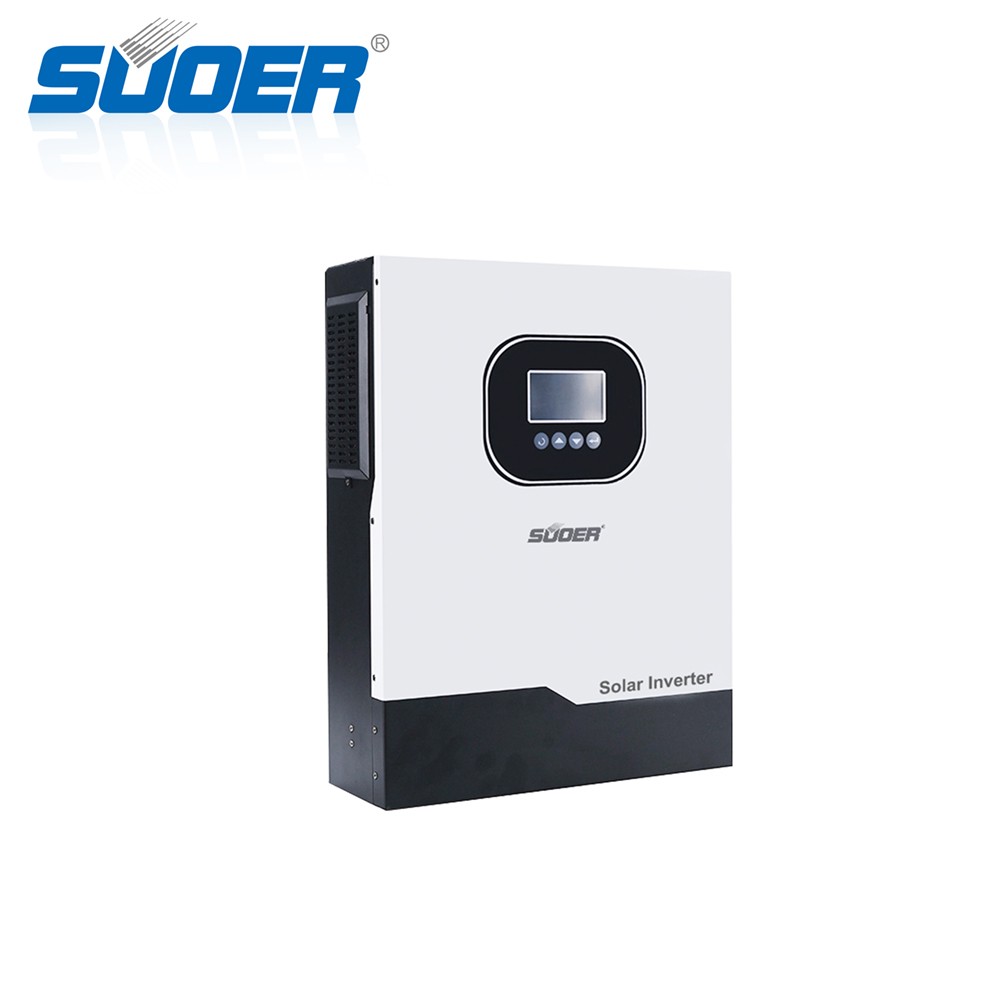

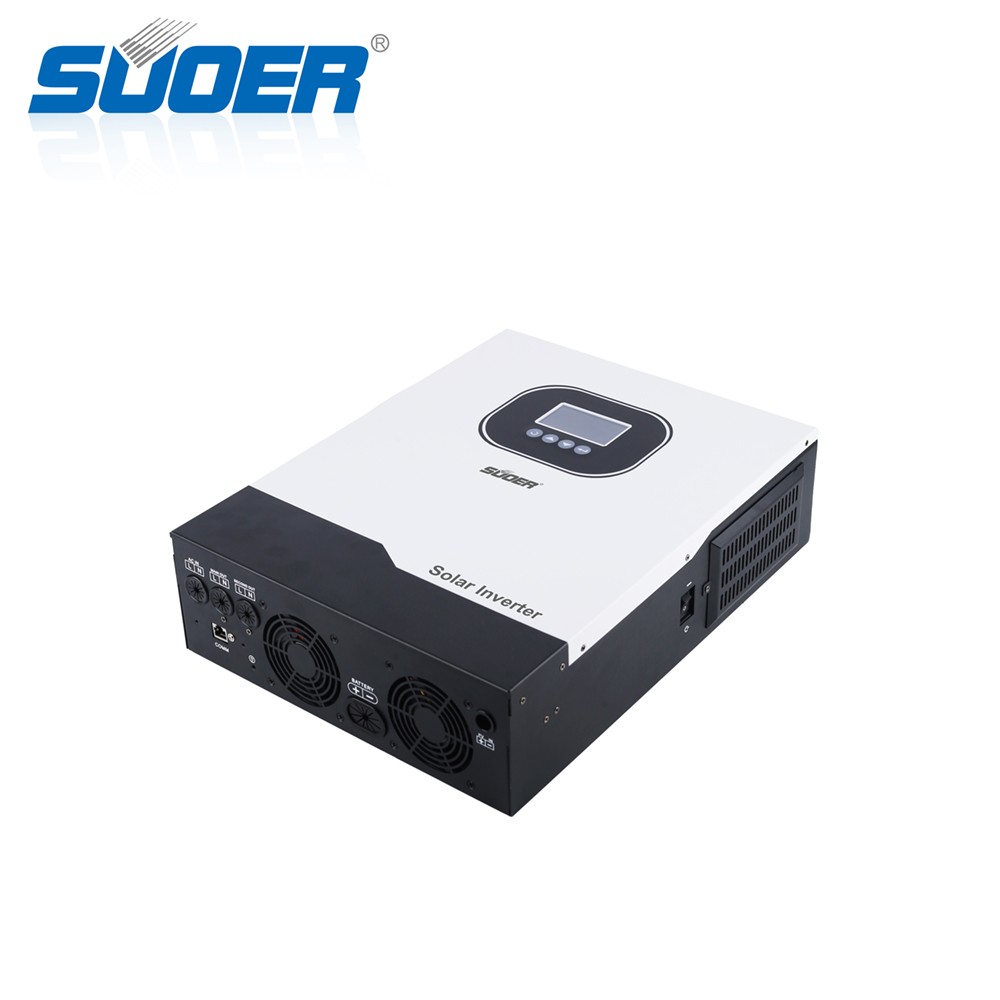

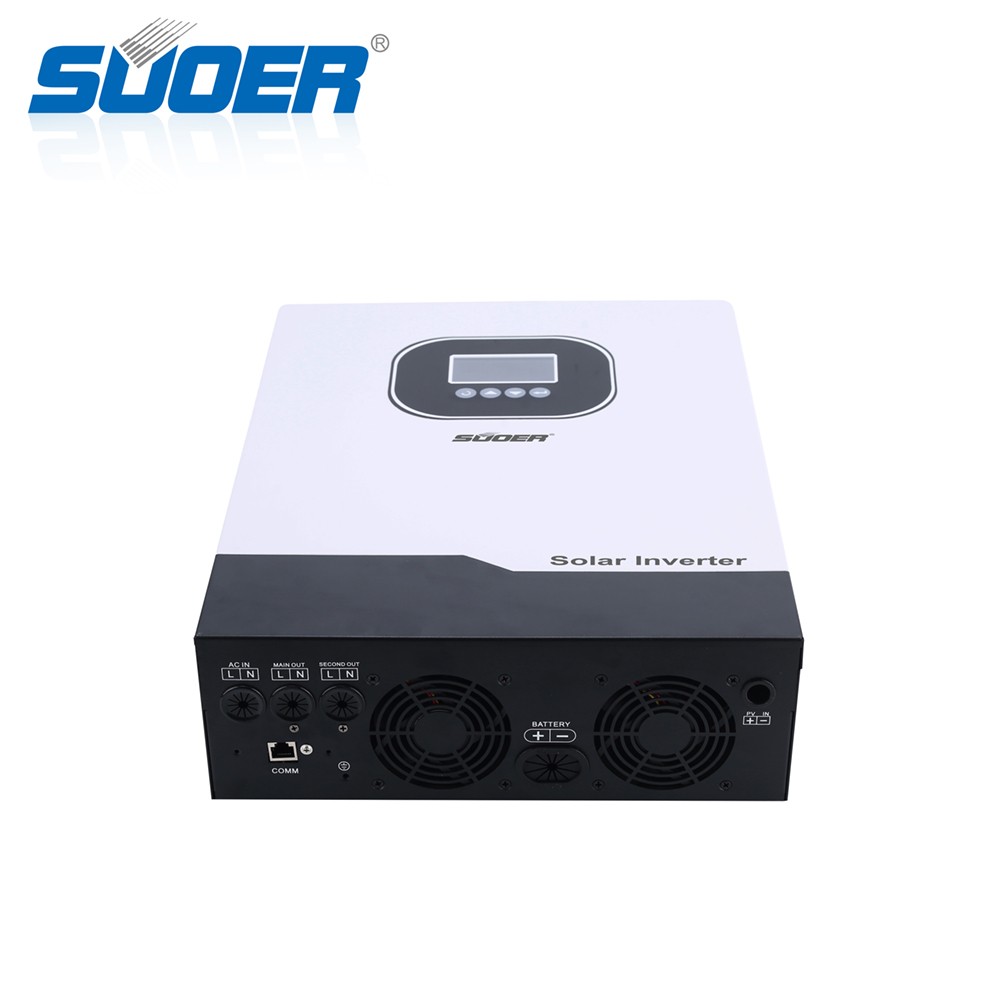

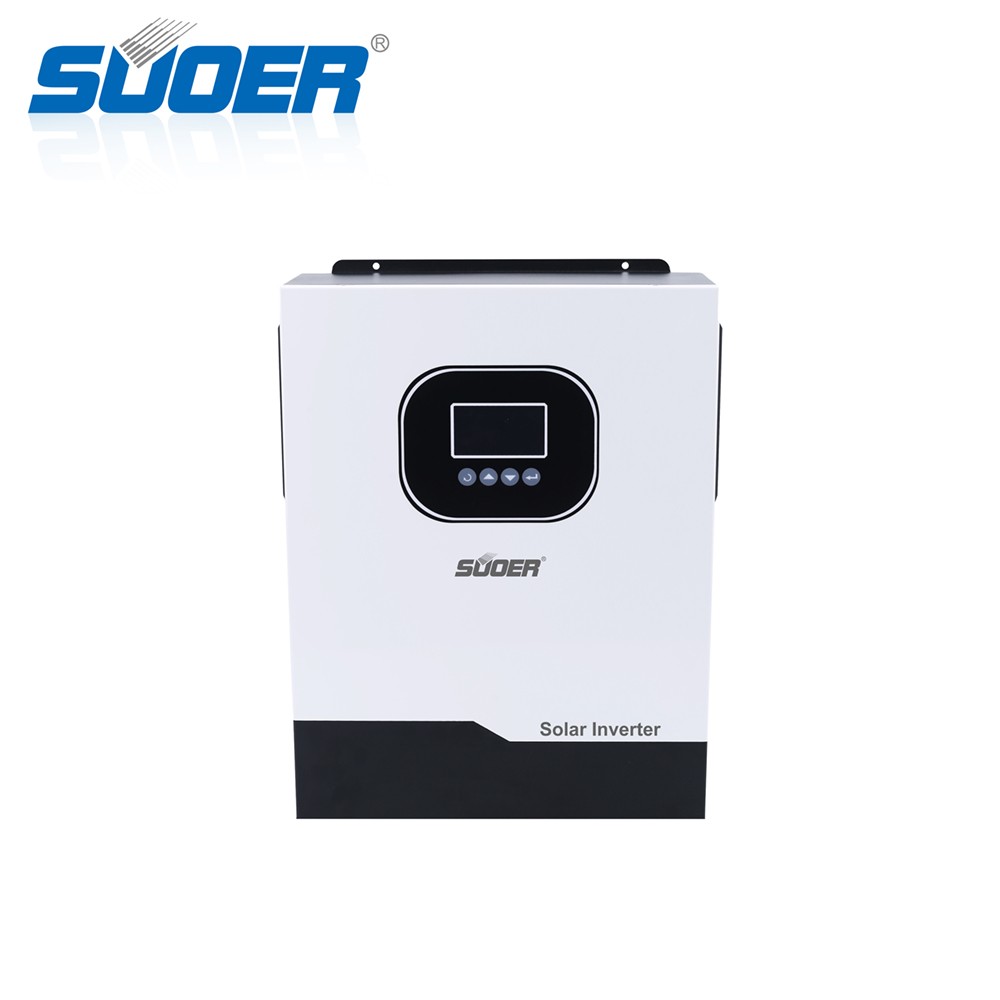

VMS-6.2kw

Suoer factory price 48V 6200W 6.2kw pure sine wave MPPT on off grid solar hybrid inverter

VMS-6.2kw

Off Grid Hybrid Inverter

Features:

Feature

Solar Hybrid Inverter VMS- series:
1.Small size and light weight
2.Bluetooth App connectedpower generation at anytime to watch
3.Mobile intelligent cloud monitoring.simple operation and maintenance
4.Fanless design,natural heat dissipation
5.Friendly connection tothe power grid. morecoordinated response
6.Power generation does not use electricity, and the efficiency is visible

INQUIRE NOW

SEND ENQUIRY

  X
Submit

Specifications

SUOER 6.2KW Hybrid Solar Inverter
INVERTER CHARGER
MODEL NAME: 6.2KW Hybrid Solar Inverter
MODEL NUMBER: VMS-6.2KW
Color: White and Black
Operating Temperature: Range-10-50°C
PV INPUT:
Nominal operating voltage: 360Vdc
Vmax PV: 500Vdc
PV input voltage range: 90-450Vdc
lmax PV: 27A
Full load MPPT range: 240~450Vdc
Rated Power: 6500W
Maximum Solar Charging Current: 120A
GRIDIAC OUTPUT:
Nominal Output Voltage: 220/230/240Vac
Feed-in Grid Voltage Range: 195~253Vac
Feed-in Grid Frequency Range: 49~51+1HZ
Nominal Output Current: 27A
Power Factor Range: >0.99
Maximum Conversion Efficiency(DClAC): 97%
Nominal Operating Frequency: 50/60Hz
TWO LOAD OUTPUT POWER:
Full Load: 6200w
Maximum Main Load: 6200w
Maximum Second Load: 2066W
Main Load Cut Off Voltage: 44VDC
Main Load Return Voltage: 48VDC
AC INPUT:
Nominal operating voltage: 230Vac
Maximum input current: 40A
Nominal operating frequency: 50/60Hz
Surge power: 12400VA
Maximum Ac charging Current: 100A
BATTERY:
Battery voltage range: 40~63VDC
Maximum battery current: 125A
