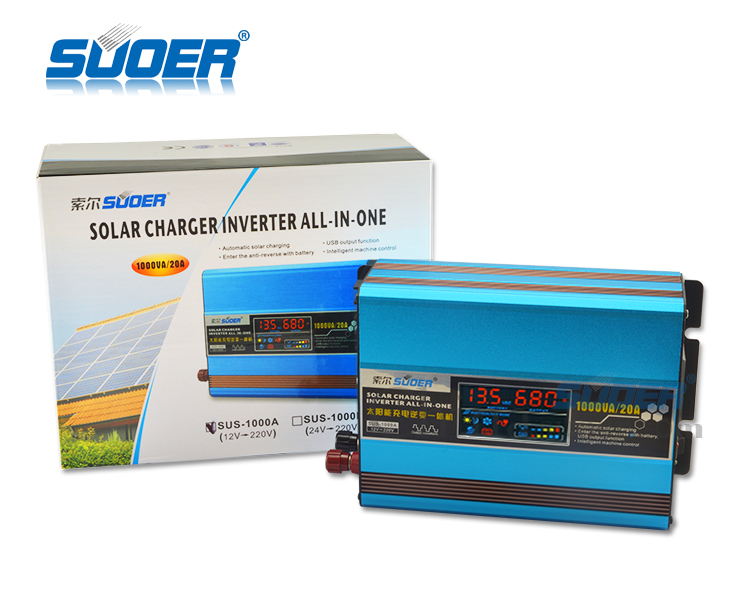

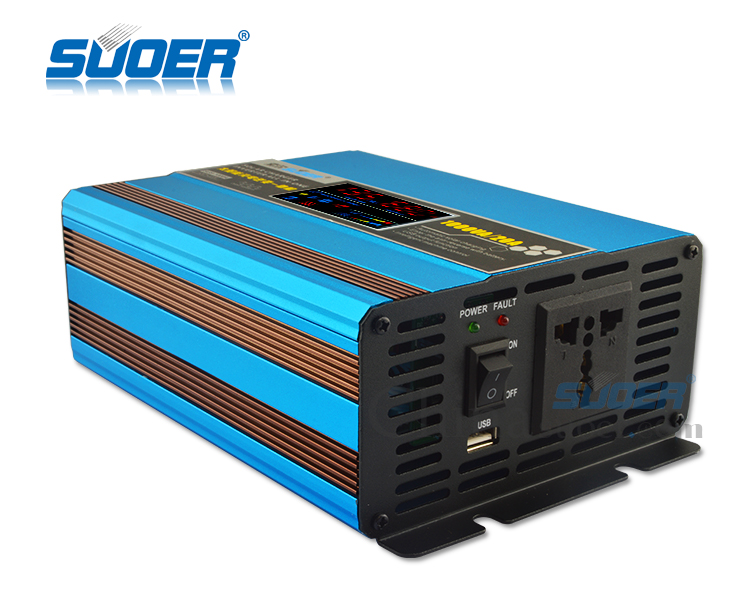

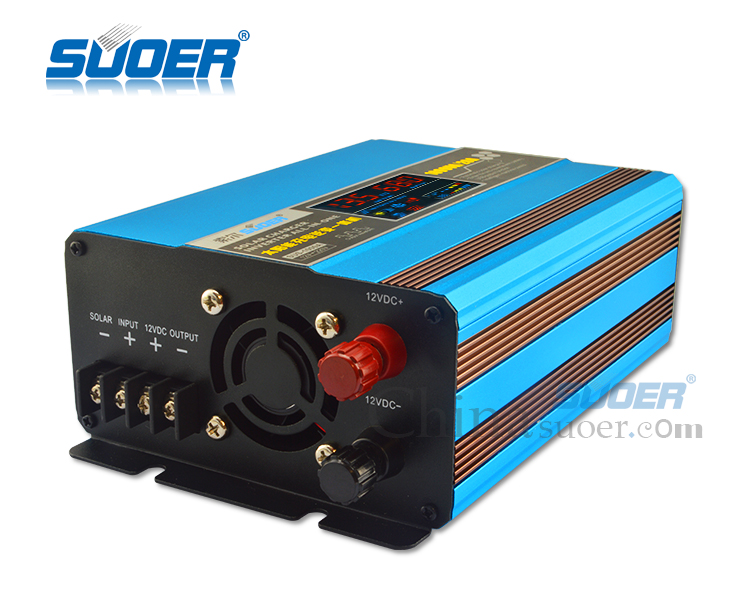

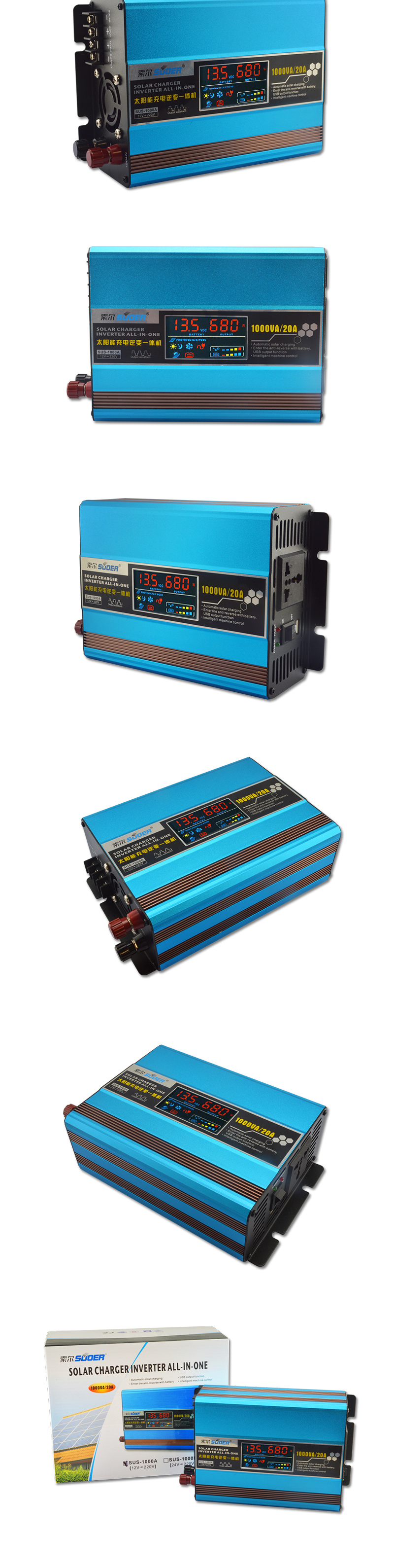

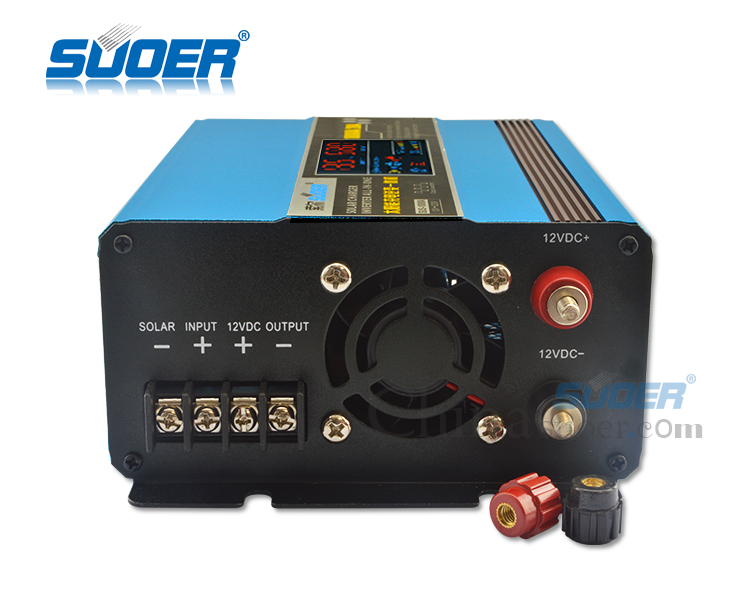

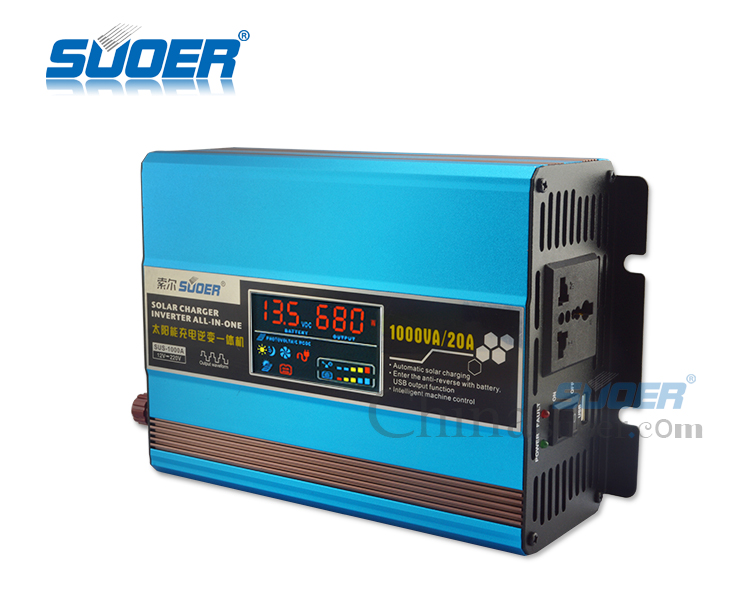

12V 220V 1000W Modified Sine Wave Solar Inverter With Built-in Charge Controller

SUS-1000A

Modified Sine Wave Inverter

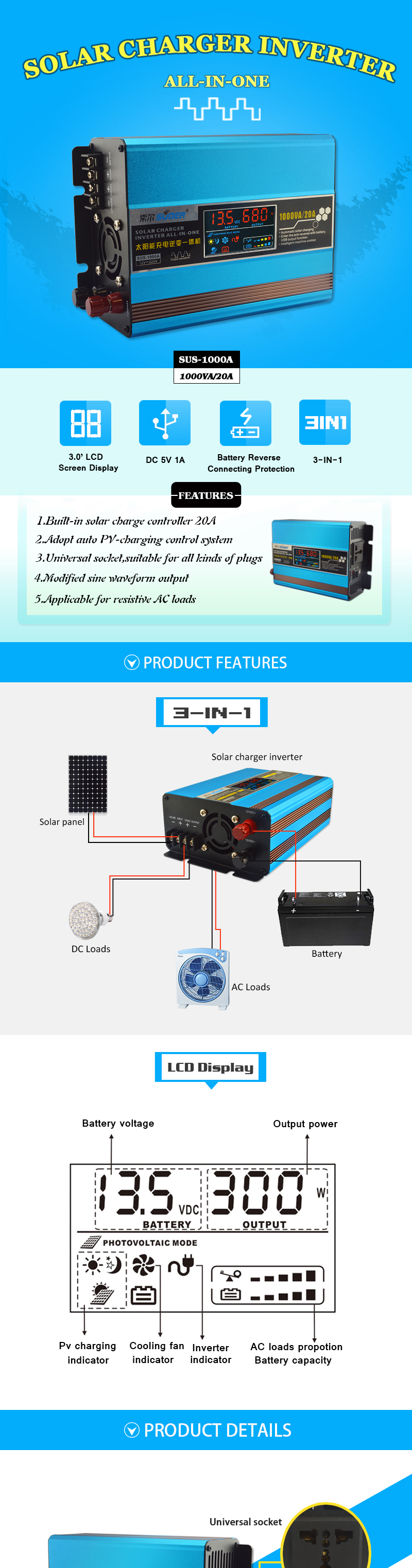

Features:

Built-in solar charge controller 20A

Adopt auto PV-charging control system

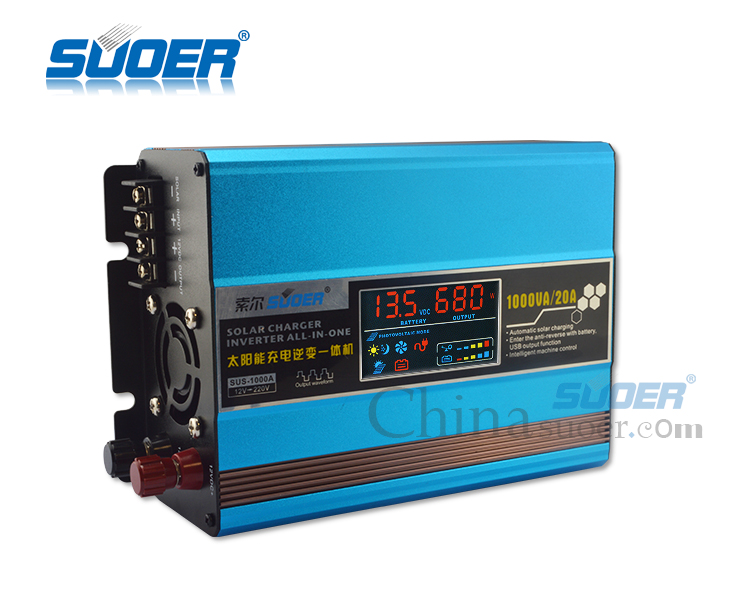

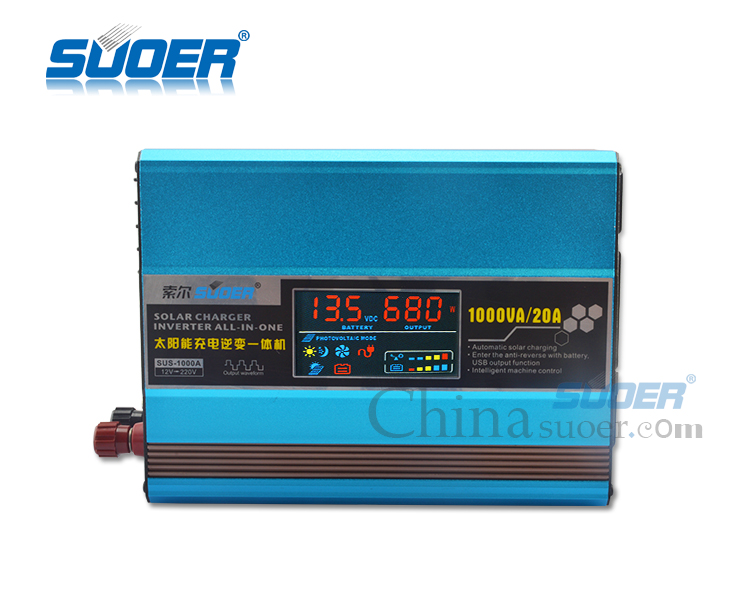

3.0' LED screen display.

Battery reverse connecting protection,etc

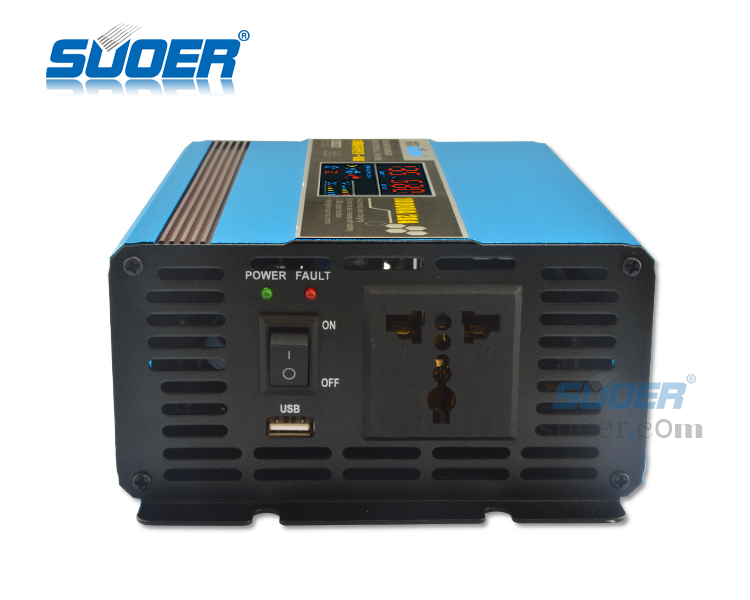

Universal socket, suitable for all kinds of plugs

Modified sine waveform output

Applicable for resistive AC loads

INQUIRE NOW

SEND ENQUIRY

Specifications

Model	SUS-500A	SUS-500B	SUS-1000A	SUS-1000B
The built-in controller	12V/10A	24/10A	12V/20A	24/20A
Featured solar panel specifications	100~150W/18V	200~150W/30V	100~200W/18V	200~300W/30V
External battery	12V 100Ah~150Ah	24V 100Ah~150Ah	12V 100Ah~150Ah	24V 100Ah~150Ah
USB output current	1000MA		1000MA
Output voltage of USB	5.0+/-0.3V		5.0+/-0.3V
Output voltage of the inverter	AC 220V+/-5%		AC 220V+/-5%
Maximum continuous power	350W		600W
Peak power	500W		1000W
No load current	<0.5A	<0.3A	<0.5A	<0.3A
DC input voltage	DC9.7V~15.5V	DC20V~32V	DC9.7V~15.5V	DC20V~32V
Output frequency	50+/-3Hz		50+/-3Hz
Conversion efficiency	70%-80%
High Voltage cut off	15V+/-0.5V		15V+/-0.5V
Low voltage alarm	11.2V+/-0.3V		11.2V+/-0.3V
Low voltage cutoff voltage	10V+/-0.3V		10V+/-0.3V
Overload, short circuit protection	Yes		Yes
Output waveform	Modified sine wave		Modified sine wave
Cooling mode	Fan cooler		Fan cooler
Working temperture	-20℃~+70℃		-20℃~+70℃
Relative humidity	<90%RH		<90%RH
Size/CTN	4240.538.5CM		50.540.538.5CM
G.W/CTN	15.3KG		18.23KG
Packing	12Pcs/CTN

Video Tutorial

This solar power inverter is extraordinarily designed for home use,which can convert DC 12V/24V of portable power supply to AC 110V/220V/230V and it works for almost all the household electrical resistive appliances such as MP3/MP4 player,cell phone, laptop, emergency light, electric blanket, electric shaver, electric cooker,digital camera, digital video,CD/DVD player,XBOX/PS4 game player, ordinary electric lamps, bulb,fluoresent light, rice cooker,electric iron,desktop computer, graphoscope,fax machines, printers, LCD TV, electric fans, cell phone chargers, electric iron , drinking fountain,hair dryer and so on.(Note:Only pure sine wave inverter can run sensitive electric appliances that are including refrigerator, washing machine,microwave oven, induction cooker, electric drill,compressor,air conditioner,mercury lamp, sodium lamp and so on).
