1kw on grid solar pv energy system

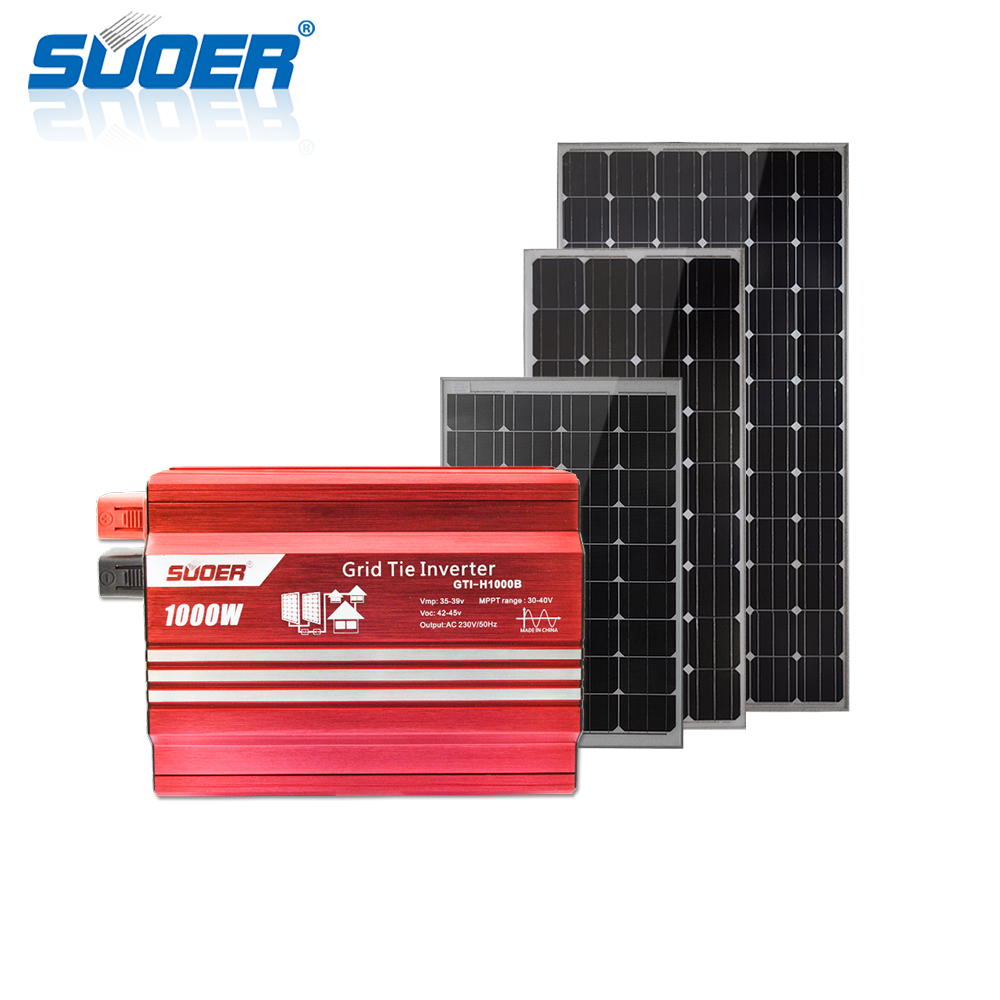

1000W On-grid home Solar Power System

On-grid Home Solar System

Features:

The Applications of the on grid system :

Solar power is an environmental friendly safe energy with abundant supply. Installing a on grid residential solar power system is a good way to meet the rising renewable energy portfolio standards.

With various level of governments' financial support for solar power system installation and feed -in-tariff for purchasing solar power feed into the grid, solar power system investment has become a risk-free financial product with a very attractive rate of return.

On Grid system is connecting to the national grid net directly. No battery backup.

On Grid system can only use at the country where allowed people connecting to the utility grid net.

It can be applied to the villa, household, tourist resorts, prairie areas, remote mountain village, no power supply areas, farms, villages, island, highway and any regions to generate electricity.

It can load household appliances like TV, Air Conditioner, refrigerator, lighting, washing machine, etc.

INQUIRE NOW

SEND ENQUIRY

Specifications

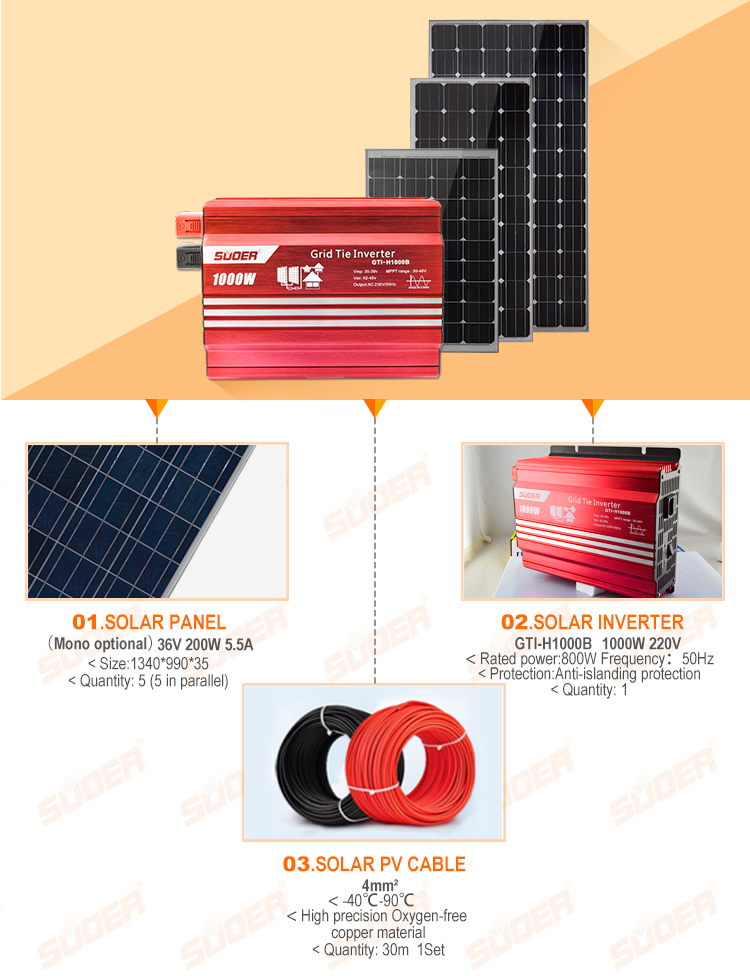

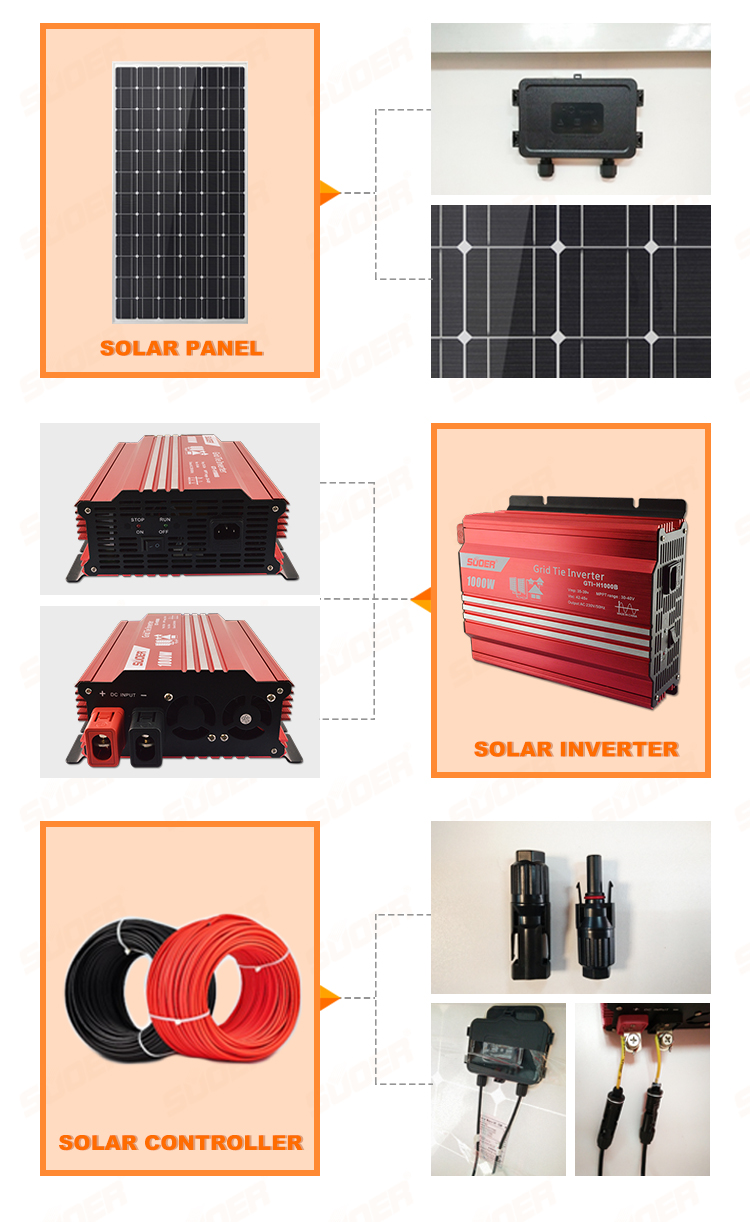

No.	Item	Photo	Tech Specs	Quantity(PCS)

1	Poly solar panel(Mono optional)		36V 200W Rated power:300W Max power voltage(VMP):36V Max power current(IMP):5.5A Size:1340990*35	1*5 (5 in parallel)











4	Grid Tie Inverter		Model:GTI-H1000B 1000W AC output:220V Rated power:800W Frequency:50Hz *Protection:Anti-islanding protection	1











5	Solar PV cabl MC4		4mm² -40℃-90℃ *High precision Oxygen-free copper material	30m 1 Set

Video Tutcrial

Advantages of On-Grid Solar Systems:

1. The working principle of the home solar power system :

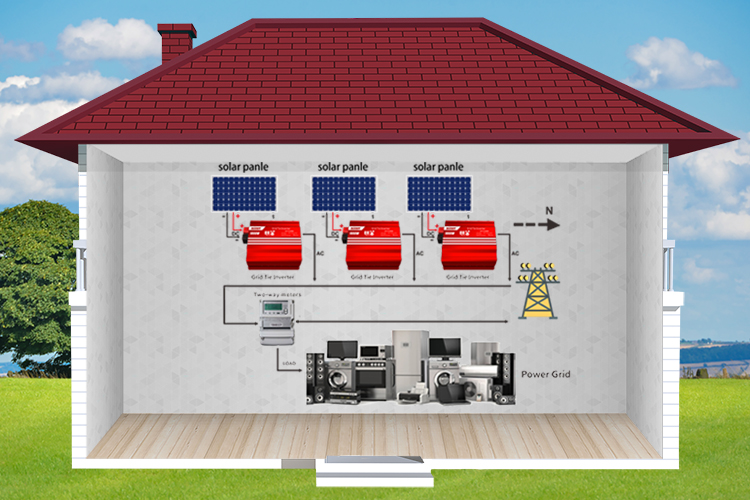

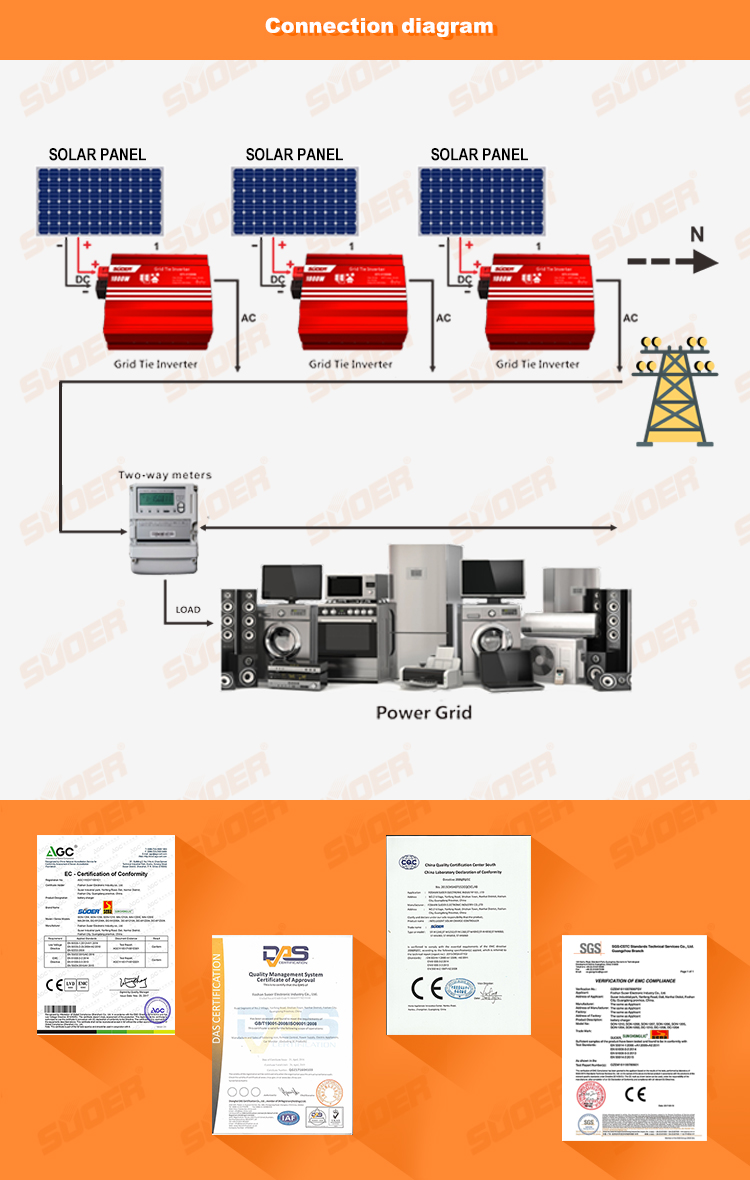

solar panel receives the sunlight and convert to DC, junction box transport DC to the PV grid tie inverter and converted DC to AC in the same frequency and phase as the grid, then supply the electricity to the load, the excess part feed into power grid.

2. home solar power system can not be separated from the grid and working independently, but it saves the part of battery storage, low cost, high return.

3. Using the existing roof, without occupying the land, less investment, short construction period, residents can act as invertors.

4. Safe and reliable:the home solar power system have overload, short circuit,overvoltage, undervoltage, reverse connection of various circuit protection, to ensure safe and reliable operation.
