ST-C1250

12V/24V 50A PWM Solar Charge Controller

ST-C1250

PWM Solar Controller

Features:

There are several common working mode of solar controller:

Button Mode (Manual switching load)

Light Controlled Mode (Load switch is controlled by solar panels  photosensitive control and timing control)

Light control turn on delay off mode.

Circulation model (With Clock Fuction)

0-24 hours optical mode,switch,wireless remote control mode,etc load mode optional.

All kinds of complete protection,stable and reliable(charging over voltage protection,charging flow protection,over-current protection,load load short circuit protection,under-voltageprotection)

INQUIRE NOW

SEND ENQUIRY

  X
Submit

Specifications

Solar charger controller ST-C1250 ST-C1260
To adapt to the battery 12V/24V,(battery<16V:12V system,Battery>18V System)
Rating charger voltage 12V:18-24V Standard specifications solar panels(24V battery*2)
Rating charger current 50A 60A
Rating output current 50A 60A
Maximum Output Current 55A 65A
Rating charging voltage Convenient switch:(24V Battery *2,Parameters can adjust in the Settings menu)
Set 1:Low:14.2V,Gel battery(Default Option)
Set 2:Default:14.5V(Conventional lead-acid batteries)
Set 3:High:15.2(Liquid lead-acid battery)
under-voltage protection voltage 10.5V(24 battery*2,Parameters can adjust in the Settings menu)
Owe pressure recovery voltage 12.5V(24 battery*2,Parameters can adjust in the Settings menu)
Load overload automatic recovery 30S
Stand-by power consumption <30mA
Infrared remote control distance >5m
Size 210mm*145mm*60mm
Weight(KG) 0.9kg

Video Tutorial

There are several common working mode of PWM solar controller:

Button Mode (Manual switching load)

Light Controlled Mode (Load switch is controlled by solar panels photosensitive control and timing control)

Light control turn on delay off mode

Circulation model (With Clock Fuction)

0-24 hours optical mode,switch,wireless remote control mode,etc load mode optional

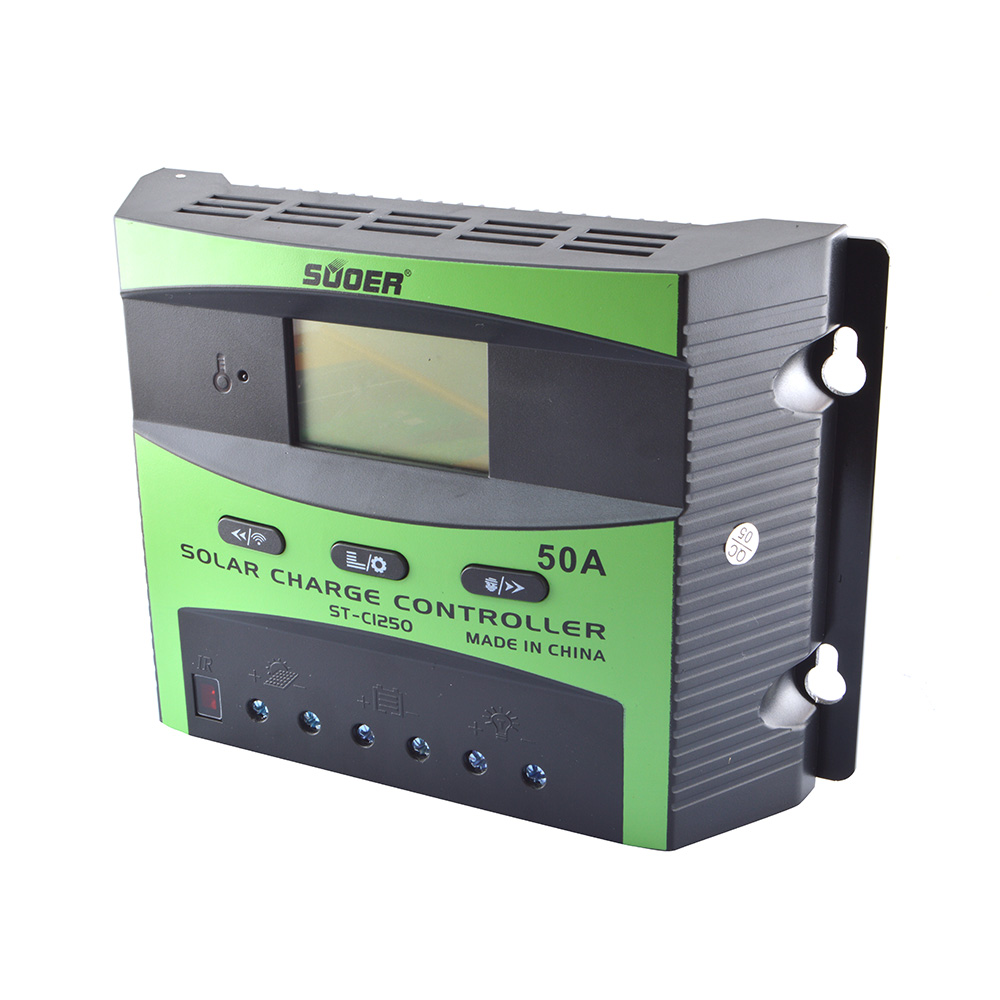

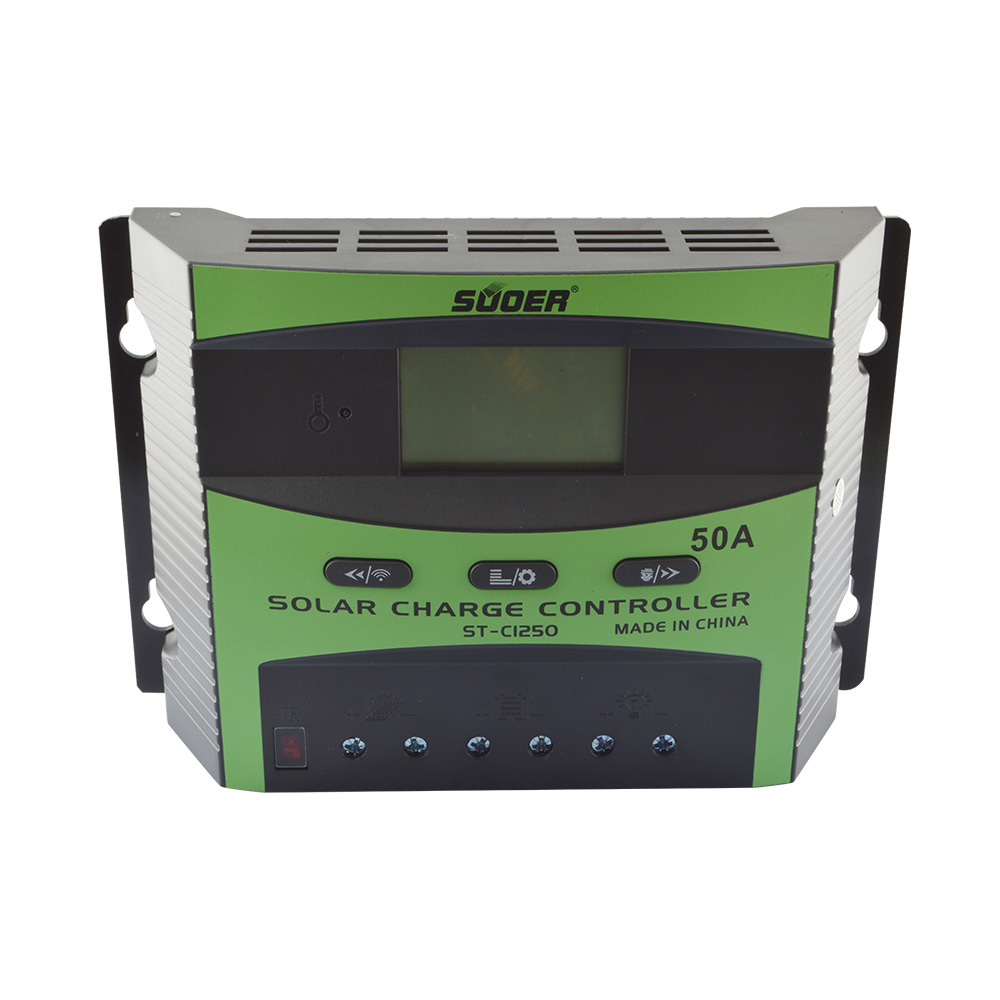

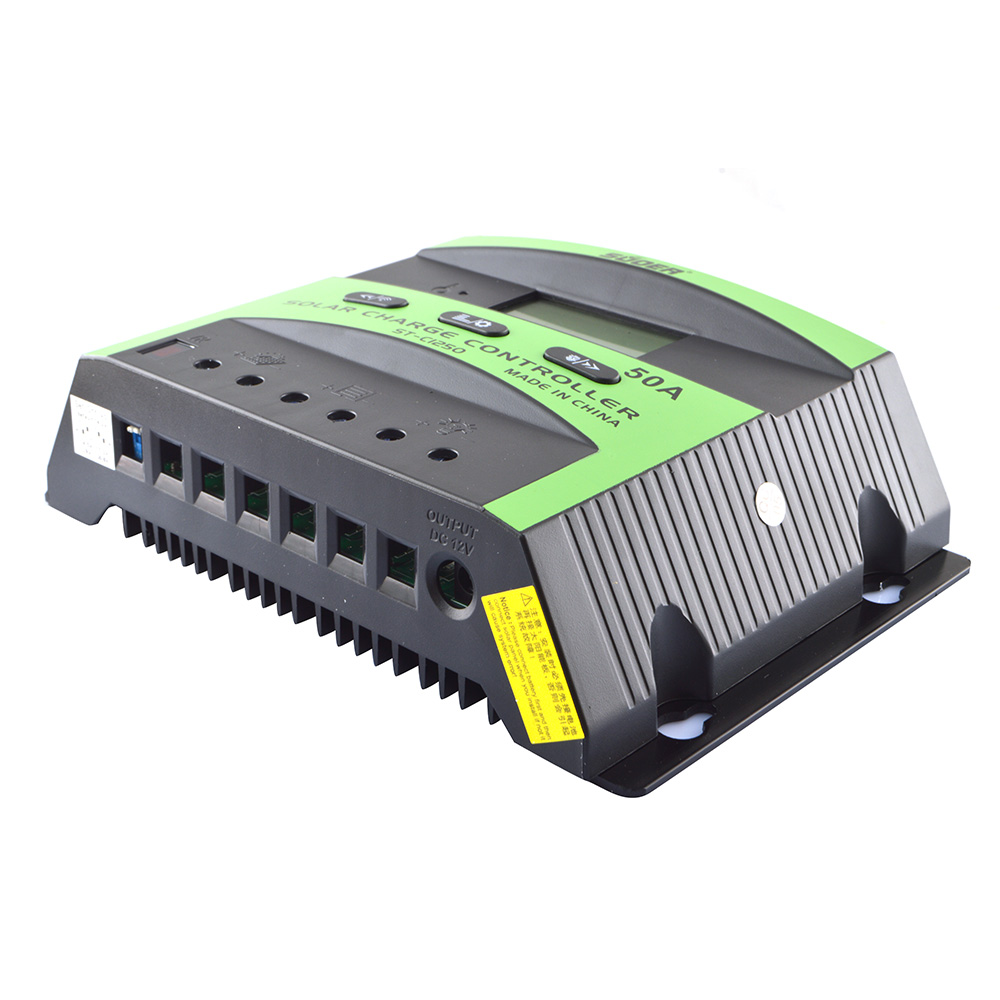

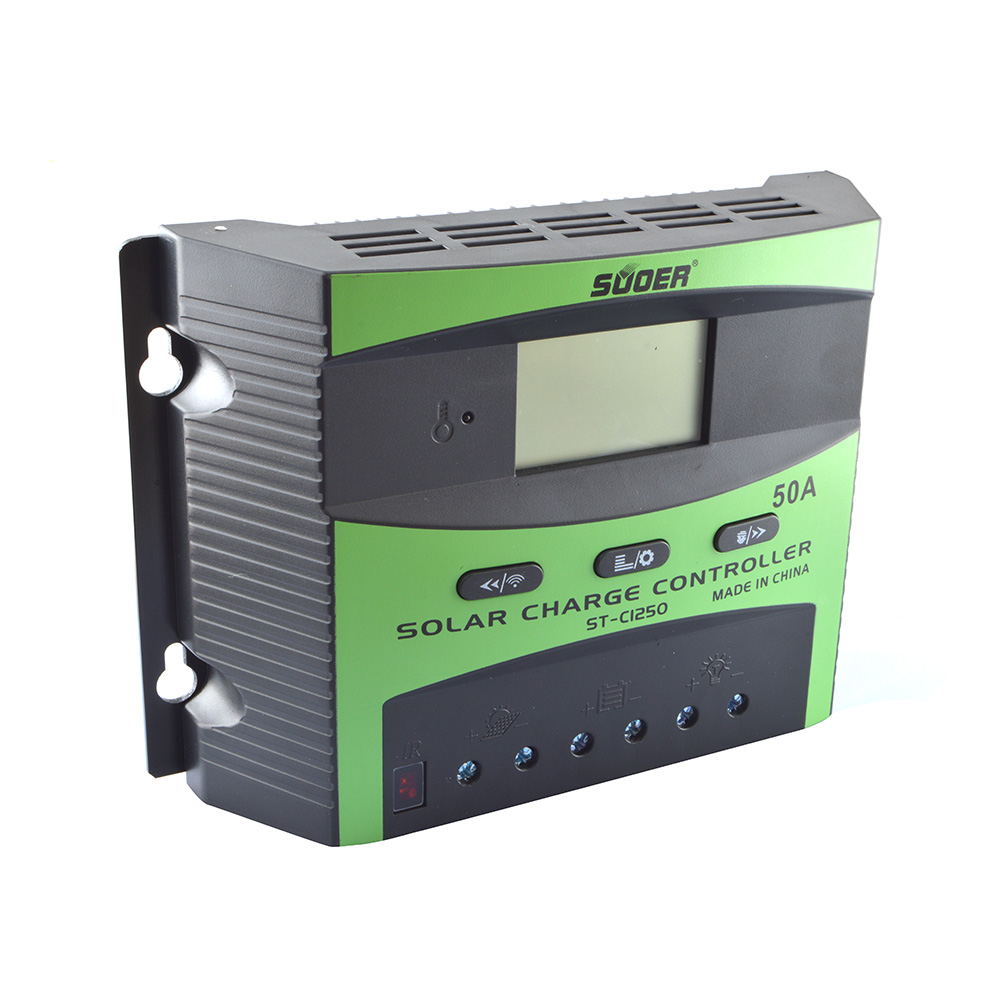

Product Photos

Applicable scope

The PWM solar controller of light and night away less than 10 ma power flow,ideal for small power solar products, such as solar street lamp light,streetlight, DC Load, illumination, solar power system and so on.
