SUOER 9KW Smart Hybrid Solar Inverter AC/DC Inverters Single Output 80A with 60Hz Frequency and MPPT Solar Charger

VMS-IV-9K

Hybrid Solar Inverter

• Dual outputs, for smart load management

• Maximum PV input current increases to 27A

• Wide PV input voltage range 90VDC ~ 450VDC

•Status indication with RGB lights

• Built-in Wi-Fi for mobile monitoring (Android/iOS App is available)

INQUIRE NOW

Model	VMS-V-9K-48-H/HG
RATED POWER	9000W
INPUT
Voltage	230 VAC
Selectable Voltage Range	170-280 VAC (For Personal Computers) ;
Selectable Voltage Range	90-280 VAC (For Home Appliances)
Frequency Range	50 Hz/60 Hz (Auto sensing)
OUTPUT
AC Voltage Regulation (Batt. Mode)	230 VAC ± 5%
Surge Power	15000VA
Transfer Time	15 ms (For Personal Computers) ;
Transfer Time	20 ms (For Home Appliances)
Waveform	Pure sine wave
BATTERY
Battery Voltage	48 VDC
Floating Charge Voltage	54 VDC
Overcharge Protection	66VDC
SOLAR CHARGER & AC CHARGER
Max. PV Array Open Circuit Voltage	500VDC
Max. PV Array Power	11000W (5500W*2)
MPP Range @operating Voltage	90~450VDC
Max. Solar Charge Current	150A
Max. AC Charge Current	120A
Max. Charge Current	120 A
PHYSICAL
Dimension, D x W x H (mm)	147 x432 x 553mm
Net Weight (kgs)	17.2
Communication Interface	RS485/Wifi/Dry-contact
ENVIRONMENT
Humidity	5% to 95% Relative Humidity (Non-condensing)

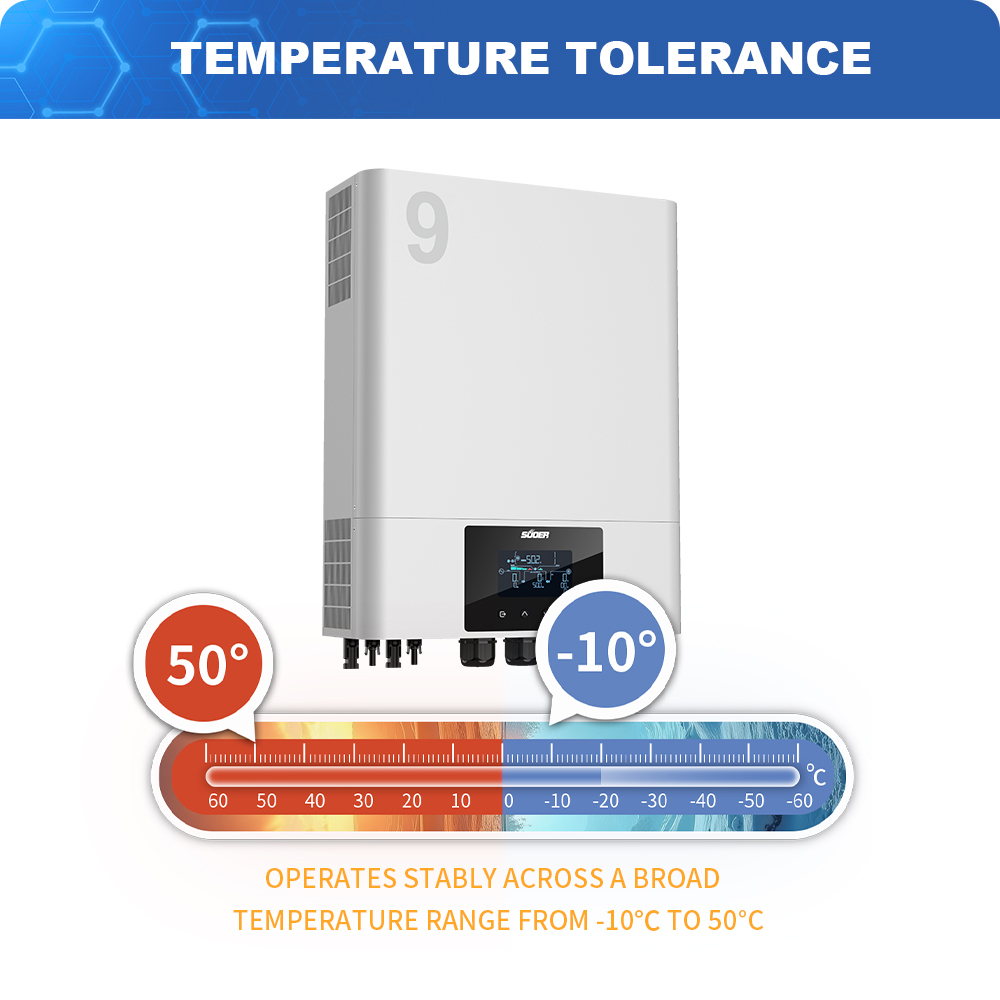

Operating Temperature	-10°C to 50°C
Storage Temperature	-15°C to 60°C
